Nuvoton MS51PC0AE-DE-18-49-D : Applications and its Features

1

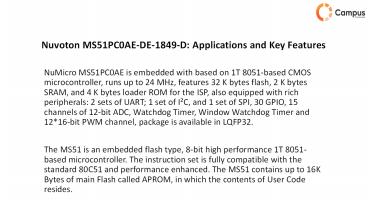

Nuvoton MS51PC0AE-DE-1849-D Applications and Key
Features

• NuMicro MS51PC0AE is embedded with based on 1T
  8051-based CMOS microcontroller, runs up to 24
  MHz, features 32 K bytes flash, 2 K bytes SRAM,
  and 4 K bytes loader ROM for the ISP, also
  equipped with rich peripherals 2 sets of UART 1
  set of I²C, and 1 set of SPI, 30 GPIO, 15
  channels of 12-bit ADC, Watchdog Timer, Window
  Watchdog Timer and 1216-bit PWM channel, package
  is available in LQFP32.
• The MS51 is an embedded flash type, 8-bit high
  performance 1T 8051-based microcontroller. The
  instruction set is fully compatible with the
  standard 80C51 and performance enhanced. The MS51
  contains up to 16K Bytes of main Flash called
  APROM, in which the contents of User Code resides.

2
Nuvoton MS51PC0AE Target Application-

• LED lighting
• Home appliances
• Industrial control
• Motor control
• Battery management system
• Power supplies

3
Nuvoton MS51PC0AE Key Features-

• Operating Characteristics-
• Voltage range 2.4V to 5.5V
• Temperature range - 40 ? to 105 ?
• EFT 4 kV
• Core
• 1T 8051-based CMOS microcontroller running up to
  24 MHz

4
Memories

• 32 K bytes Flash
• Configurable 4 K / 3 K / 2 K / 1 K Bytes of
  LDROM, which provides flexibility to user
  developed Boot Code
• 2 K bytes SRAM
• 256 Bytes on-chip RAM
• Flash Memory accumulated with pages of 128 Bytes
  each
• Built-in In-Application-Programmable ( IAP )

5
Clocks

• External clock input ( 32 K body only )
• 16 MHz high-speed internal oscillator trimmed to
  1 when VDD 5.0 V, 2 in all conditions.
• 24 MHz high-speed internal oscillator trimmed to
  1 when VDD 5.0 V, 2 in all conditions
• 10 kHz low-speed internal oscillator
• On-the-fly clock source switch via software

6
Peripherals

• Two 16-bit Timers / Counters 0 and 1 compatible
  with standard 8051
• One 16-bit Timer 2 with three-channel input
  capture module and 9 input pin can be selected
• One 16-bit auto-reload Timer 3, which can be the
  baud rate clock source of UARTs
• One 16-bit PWM counter interrupt for timer
• 1216-bit pulse width modulator ( PWM ) output,
  with different modes and Fault Brake function for
  motor control
• One programmable Watchdog Timer ( WDT )
• One dedicated Self Wake-up Timer ( WKT )

7
