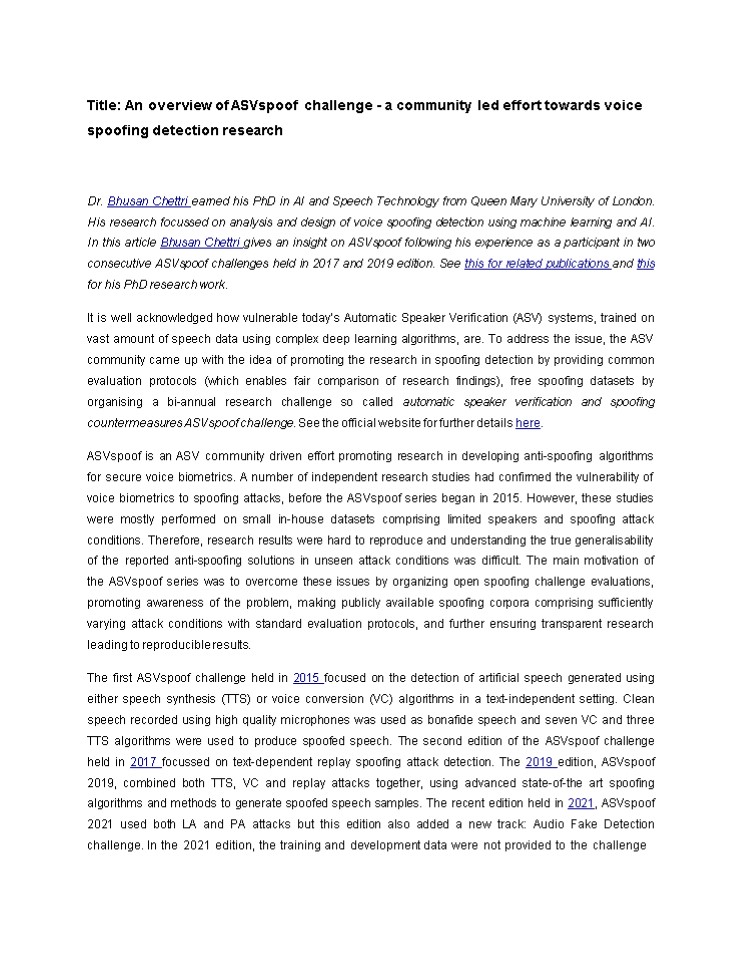

Title An overview of ASVspoof challenge - a
community led effort towards voice spoofing
detection research
Dr. Bhusan Chettri earned his PhD in AI and
Speech Technology from Queen Mary University of
London. His research focussed on analysis and
design of voice spoofing detection using machine
learning and AI. In this article Bhusan Chettri
gives an insight on ASVspoof following his
experience as a participant in two consecutive
ASVspoof challenges held in 2017 and 2019
edition. See this for related publications and
this for his PhD research work. It is well
acknowledged how vulnerable todays Automatic
Speaker Verification (ASV) systems, trained on
vast amount of speech data using complex deep
learning algorithms, are. To address the issue,
the ASV community came up with the idea of
promoting the research in spoofing detection by
providing common evaluation protocols (which
enables fair comparison of research findings),
free spoofing datasets by organising a bi-annual
research challenge so called automatic speaker
verification and spoofing countermeasures
ASVspoof challenge. See the official website for
further details here. ASVspoof is an ASV
community driven effort promoting research in
developing anti-spoofing algorithms for secure
voice biometrics. A number of independent
research studies had confirmed the vulnerability
of voice biometrics to spoofing attacks, before
the ASVspoof series began in 2015. However, these
studies were mostly performed on small in-house
datasets comprising limited speakers and spoofing
attack conditions. Therefore, research results
were hard to reproduce and understanding the true
generalisability of the reported anti-spoofing
solutions in unseen attack conditions was
difficult. The main motivation of the ASVspoof
series was to overcome these issues by organizing
open spoofing challenge evaluations, promoting
awareness of the problem, making publicly
available spoofing corpora comprising
sufficiently varying attack conditions with
standard evaluation protocols, and further
ensuring transparent research leading to
reproducible results. The first ASVspoof
challenge held in 2015 focused on the detection
of artificial speech generated using either
speech synthesis (TTS) or voice conversion (VC)
algorithms in a text-independent setting. Clean
speech recorded using high quality microphones
was used as bonafide speech and seven VC and
three TTS algorithms were used to produce
spoofed speech. The second edition of the
ASVspoof challenge held in 2017 focussed on
text-dependent replay spoofing attack detection.
The 2019 edition, ASVspoof 2019, combined both
TTS, VC and replay attacks together, using
advanced state-of-the art spoofing algorithms
and methods to generate spoofed speech samples.
The recent edition held in 2021, ASVspoof 2021
used both LA and PA attacks but this edition also
added a new track Audio Fake Detection
challenge. In the 2021 edition, the training and
development data were not provided to the
challenge
2
participants. They were required to use the
ASVspoof 2019 edition training and development
datasets to train and tune their anti-spoofing
systems. This edition only provided the fresh new
evaluation set to evaluate the models. One key
observation that is worth noting from the three
ASVspoof challenges is the paradigm shift in the
use of modelling approaches for spoofing
detection. Gaussian mixture models (GMMs), which
is a generative model, were popular during the
first ASVspoof challenge in 2015 as evident from
the winning system of this challenge which is a
GMM-based system. However, the 2017 and 2019
spoofing challenges were mostly dominated by
data-driven discriminatively trained deep models.
The main task, however, in all the three
editions of the ASVspoof challenge was to build a
standalone countermeasure model (anti-spoofing
algorithm) that determines if a given speech
recording is bonafide or a fake recording
(spoofed). As for the performance evaluation, the
equal error rate (EER) was used as a primary
metric in the 2015 and 2017 edition. As for the
2019 edition, a recently introduced tandem
detection cost function (t-DCF) metric Kinnunen
et al., 2018 was used as a primary metric and
EER as the secondary metric. Thanks to the ASV
community, we don't have to worry about putting
our own money in purchasing the spoofing
datasets. These are made public and can be
downloaded at no cost. The ASVspoof 2017 dataset
is the first publicly available replay spoofing
dataset designed by playing back bonafide audio
utterances and re-recording them in real wild
acoustic conditions. It has been widely used by
researchers around the globe. It has two data
versions 1.0 and 2.0. The version 1.0 was used
during the ASVspoof 2017 evaluation. Post
evaluation due to biases found in the dataset, a
corrected version was released by the ASVspoof
organisers. Datasets and metrics Speaking about
replay attack anti-spoofing datasets, Bhusan
Chettri explains that the ASVspoof 2017 dataset
is the first publicly available replay spoofing
dataset designed by playing back bonafide audio
utterances and re-recording them in real wild
acoustic conditions. It has been extensively
used in research since its release in 2017
edition of ASVspoof series. The bonafide
utterances were taken from a subset of RedDots
dataset which is a dataset for speaker
verification collected under wild varied
acoustic conditions. The ASVspoof 2017 dataset
has two different versions version 1.0 and
version 2.0. The version 1.0 was used during the
official challenge evaluation in 2017. Post
evaluation data anomalies were identified that
showed biased model decisions, which eventually
led to the release of version 2.0 dataset. The
2019 edition combined both the replay spoofing
attacks (Physical access - PA) and text-to-speech
and voice- conversion attack conditions (so
called Logical access LA) and released the LA
and PA datasets respectively. Also, post 2019
challenge evaluation a real replayed utterances -
a small subset of real replayed speech
utterances were also made publicly available to
perform research on replay spoofing attacks.
During the latest edition of ASVspoof evaluation,
the ASVspoof 2021, no training data were
3
released to the challenge participants. The
participants were required to use the ASVspoof
2019 training and development dataset to train
and tune their anti-spoofing model parameters.
Only a fresh set of evaluation set was released
to the participants. For more details on this
please see this. Equal error rate metric (EER)
was the primary (and the only metric) used to
evaluate anti-spoofing performance during the
2015 and 2017 ASVspoof evaluation. However, in
the 2019 edition EER was the secondary metric
used where a new metric called tandem detection
cost function that jointly optimises the
performance of ASV and anti-spoofing system was
used to evaluate the model performances of the
challenge participants. In the next article,
Bhusan Chettri will be discussing more about
different corpuses and the evaluation metrics
used in voice anti-spoofing research.

• References
• Bhusan Chettri scholar
• M. Sahidullah et. al. Introduction to Voice
  Presentation Attack Detection and Recent
  Advances, 2019.
• 3. Bhusan Chettri. Voice biometric system
  security Design and analysis of countermeasures
  for replay attacks. PhD thesis, Queen Mary
  University of London, August 2020.
• 4 ASVspoof The automatic speaker verification
  spoofing and countermeasures challenge website.
