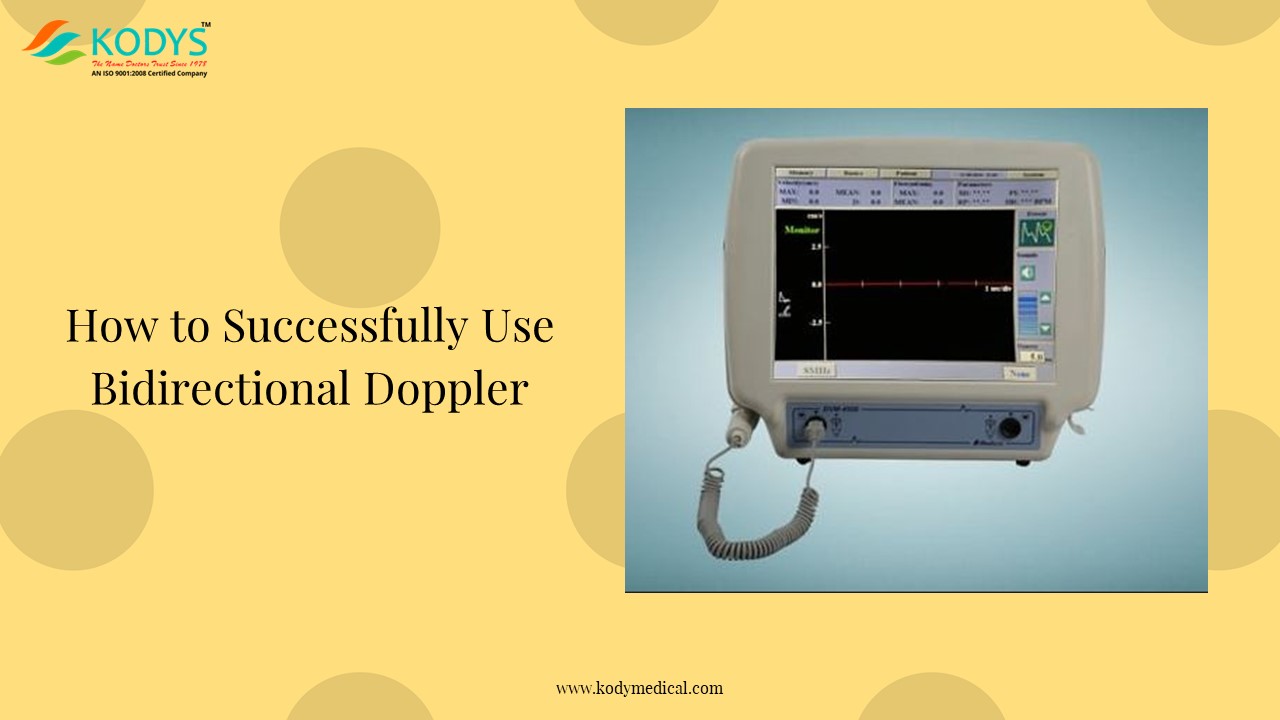

How to Successfully Use Bidirectional Doppler

1
How to Successfully Use Bidirectional Doppler
www.kodymedical.com
2
Blood Flow Assessment Tools For The Modern Surgeon

• Vascular Doppler is a very important tool during
  surgery.
• It can help identify abnormalities in the blood
  vessels, which can affect the success of the
  surgery.
• Bidirectional Doppler is especially useful in
  detecting blood flow in both positive and
  negative directions.

www.kodymedical.com
3
A Better Way To Measure Flow Using Outphaser
Technology

• Based on outphaser technology, bidirectional
  Doppler separates simultaneous forward and
  backward flow signals through phase comparison
  and then passes on the signals through two
  distinct channels.
• Through this method, it is possible to achieve
  artefact-free registration of arterial signals
  without the superimposition of venous signals and
  vice versa.
• Bidirectional Doppler thus helps in the
  qualitative assessment of blood flow based on
  secondary parameters such as shape of the curve,
  direction of blood flow or diastolic deflection.

www.kodymedical.com
4
Kody Medical Electronics Makes Tools To Help In
Surgery

• Kody Medical Electronics offers several
  bidirectional vascular Dopplers and
  intraoperative probes for different frequencies
  for use during surgery.
• The Bidop ES100V3, Smartdop 45, Smartdop 30EX,
  Hadeco Smartdop XT 6 port, Hadeco Smartdop XT 14
  port and DVM 4500 are some of the most frequently
  used bidirectional Dopplers.
• These bidirectional Dopplers can be used to
  measure blood flow in both the radial and ulnar
  arteries.

www.kodymedical.com
5
Observing and Recording flow Characteristics

• Kody Medicals offers a wide range of flow meters
  with different features such as colour display,
  bigger speaker and inbuilt battery.
• These meters are ideal for observing and
  recording flow characteristics, especially those
  that are important for Cardiology or Pulmonary
  applications.
• Bidop7 and Smartdop 45 come with the extra
  advantage of colour display which makes it easier
  to see the data in detail.

www.kodymedical.com
6
DVM 4500 The Most Versatile Electronic Surgery
System On The Market

• The DVM 4500 is a versatile vascular system
  scanner that finds application in various
  surgeries.
• It is very useful in aneurysm clipping, bypass
  surgery, varicocele and AV shunt, transplantation
  surgeries and determination of PAD and spinal
  stenosis.
• The DVM 4500 is a powerful tool that can help
  improve surgical outcomes.

www.kodymedical.com
7
