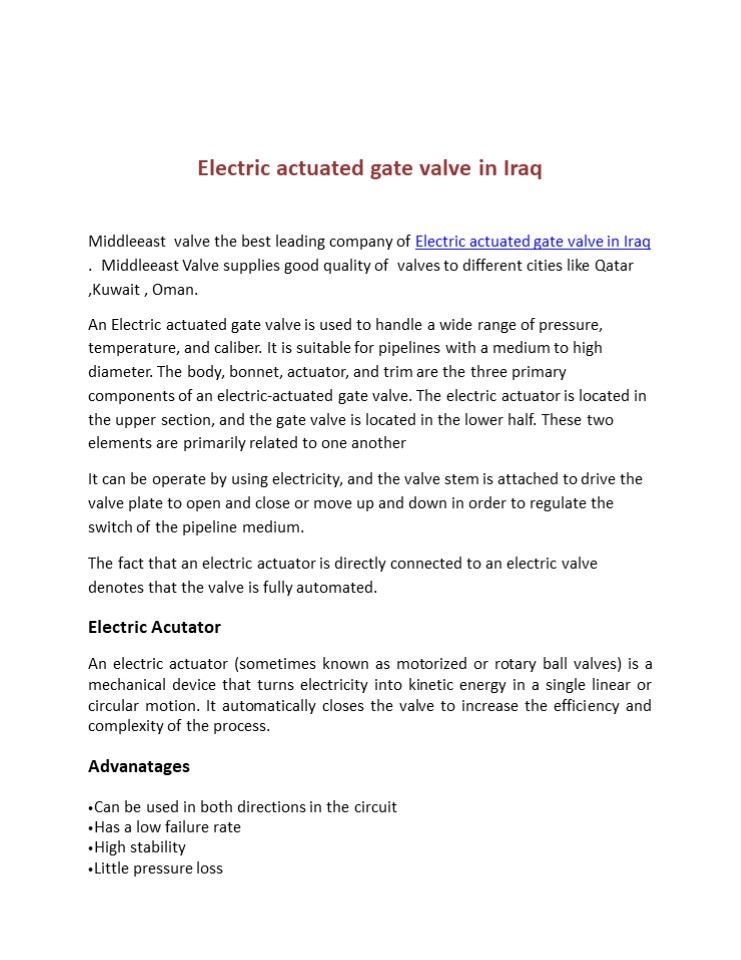

Electric actuated gate valve in Iraq

1

• Electric actuated gate valve in Iraq
• Middleeast valve the best leading company of
  Electric actuated gate valve in Iraq
• . Middleeast Valve supplies good quality of
  valves to different cities like Qatar
• ,Kuwait , Oman.
• An Electric actuated gate valve is used to handle
  a wide range of pressure, temperature, and
  caliber. It is suitable for pipelines with a
  medium to high diameter. The body, bonnet,
  actuator, and trim are the three primary
  components of an electric-actuated gate valve.
  The electric actuator is located in the upper
  section, and the gate valve is located in the
  lower half. These two elements are primarily
  related to one another
• It can be operate by using electricity, and the
  valve stem is attached to drive the valve plate
  to open and close or move up and down in order to
  regulate the switch of the pipeline medium.
• The fact that an electric actuator is directly
  connected to an electric valve denotes that the
  valve is fully automated.
• Electric Acutator
• An electric actuator (sometimes known as
  motorized or rotary ball valves) is a mechanical
  device that turns electricity into kinetic energy
  in a single linear or circular motion. It
  automatically closes the valve to increase the
  efficiency and complexity of the process.
• Advanatages
• Can be used in both directions in the circuit
• Has a low failure rate
• High stability
• Little pressure loss

2

• Safe and easy installation
• Valves closing feature is great
• Industry
• Automotive industry
• Manufacturing industry
• Marine industry
• Oil and gas industry

• Gate valve
• Gate are used to stop the flow of fluid, a gate
  valve has a flat closure element that slides into
  the flow stream. They are one of the most common
  types of valves, and their primary function is to
  allow or prevent the flow of liquids.
• Gate valves can also be used in harsh
  environments such as high temperature and high
  pressure. They are frequently used in
• Water treatment
• Plants
• Mining
• Offshore applications
• A "gate" is a rectangular or circular wedge that
  is part of a linear motion valve called a gate
  valve. To open or close a metal gate, it can be
  raised or lowered. When lifted, the gate opens
  and allows flow when dropped, it closes and
  blocks the channel.
• Industries -
• Gate valves are used in many industrial
  applications, including
• Oil and gas industry
• Pharmaceuticals

3

• Manufacturing
• Automotive
• Marine

• Electric actuator details-
• Torque 3 9 nm
• Operating pressure- 8 Bar
• Port Connection-NPT1.4
• Mounting Base-ISO5211
• Temperature--20C - 80C
• Description
• Body Material Cast Iron, Ductile Iron, 316L,
  SS304, SS316,CF8M, SS316L, SS904L,Wcb, WCC, wc9,
  wc6
• End Flanged, Socket weld, Butt weld.
• Operation Electric actuated.
• Size DN15 to DN700
• Pressure PN10 to PN450,150 to 2500

4
Pneumatic actuated ball valve in
Riyadh Middleeast Valve is the prime company of
Pneumatic actuated ball valve in Riyadh .
Middleeast Valve supplies variety of valves to
different cities like Riyadh,Kuwait , Oman. A
ball valve that uses compressed air to open or
close fluid flow is known as a pneumatically
actuated ball valve. A piston, rack, and pinion
are features of the pneumatic actuator that aid
in converting pressure energy into mechanical
energy. The mechanical energy is what drives the
valve's opening and closing. These actuators are
quick to react but not really suitable for
high-pressure environments due to the gas
compressibility. They are available in two types,
one is in spring return and the other is in
double-acting configurations
Pneumatic actuator A pneumatic actuator is a
device that transforms gas or compressed air into
mechanical motion. It is sometimes referred to as
air cylinders, pneumatic cylinders, and air
actuators.
5

• It is used as an automated control to reduce the
  amount of time that humans are required to
  interact with a system's internal workings. This
  is particularly beneficial for automatic
  modulation and emergency shutdowns.
• Advantages
• Having smallest fluid resistance compared to
  other valves.
• This valve seal has good sealing performance.
• Thrust bearing of the valve reduces the friction
  of the valve stem this results in the valve stem
  operating smoothly and flexibly for a long time.
• If the spring is set between the body and valve
  stem then the valve body exports generated static
  electricity.
• Industries
• Textile Industry
• Water Industry
• Construction Industry
• Electric Power Industry

• Ball valve
• A ball valve is a closed valve that rotates a
  ball with a bore inside it to permit, restrict,
  and control the flow of liquids, gases, and
  vapours in a pipe system. The shaft that connects
  the ball to the operational and controlling
  mechanism that rotates the ball is mounted
  against two seats. The fluid is not allowed to
  pass through the valve when the cross-section of
  the bore is perpendicular to the area of the
  flow.
• Advantages
• They are lighter than gate valves,
• Gate or Globe valves lack the multi-designed
  flexibility, which reduces the number of valves
  required.
• These valves are produced in a variety of sizes
  and forms to allow for selection versatility.

6

• Low-pressure drop (flow is almost unrestricted)
• It is Time effective to operate
• Disadvantages
• Prone to blockages
• Struggling with long term throttling
• Not suitable for thicker media as sedimentation
  could occur and damage the valve disc seat.
• Surge pressure could occur due to rapid closing
  and opening.
• Industries
• Ball valves are used in a variety of industrial
  sectors -

Chemical and Petrochemical Industry

• ?
• ?
• Vacuum
• Water Treatment
• Automotive

Oil Gas Industry

• Pneumatic Actuator details-
• Torque 3 9000 nm
• Operating pressure 8 Bar
• Port Connection NPT1.4
• Mounting Base ISO5211
• Temperature -20C to 80C

• Description
• Body Material Cast steel (WCB, WCC, WC6, LCC,
  LCB), Stainless steel (SS304, SS316), Carbon
  steel(CF8, CF8M),

7

• ? Class 150 to 2500 PN10 to PN450
• Size ½ to 4
• End Buttweld, Flanged, Socketweld, Threaded
• Operation Pneumatic actuated
• Visit Us- https//www.Middleeastvalve.com/product
  -category/pneumatic- actuated-ball-valve/
