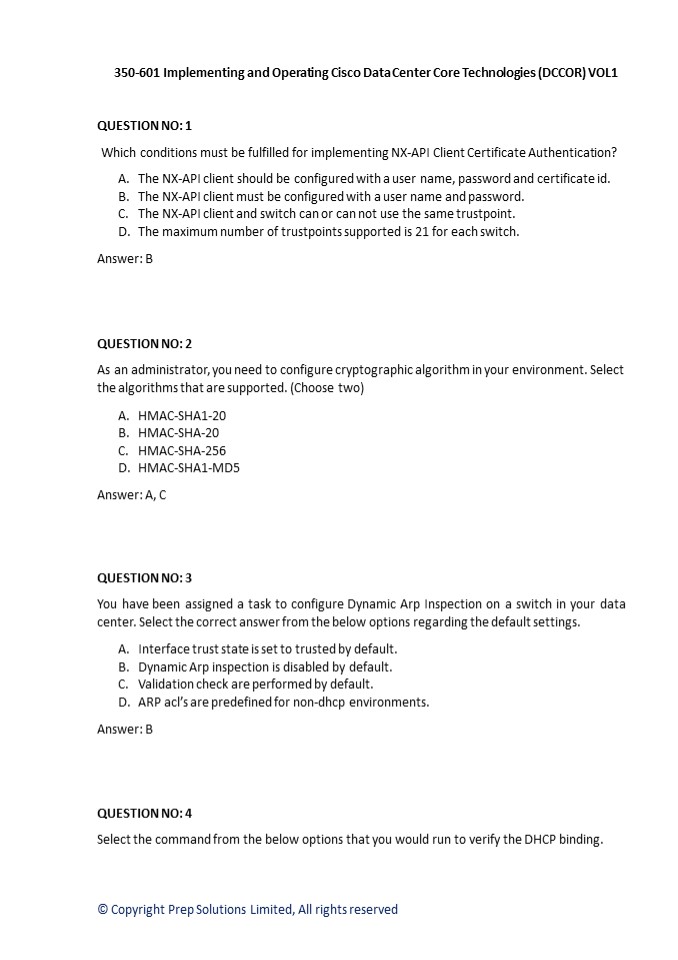

350-601 VOL1 Question

1

• 350-601 Implementing and Operating Cisco Data
  Center Core Technologies (DCCOR) VOL1
• QUESTION NO 1
• Which conditions must be fulfilled for
  implementing NX-API Client Certificate
  Authentication?
• The NX-API client should be configured with a
  user name, password and certificate id.
• The NX-API client must be configured with a user
  name and password.
• The NX-API client and switch can or can not use
  the same trustpoint.
• The maximum number of trustpoints supported is 21
  for each switch.
• Answer B

• QUESTION NO 2
• As an administrator, you need to configure
  cryptographic algorithm in your environment.
  Select the algorithms that are supported.
  (Choose two)
• HMAC-SHA1-20
• HMAC-SHA-20
• HMAC-SHA-256
• HMAC-SHA1-MD5
• Answer A, C

• QUESTION NO 3
• You have been assigned a task to configure
  Dynamic Arp Inspection on a switch in your data
  center. Select the correct answer from the below
  options regarding the default settings.
• Interface trust state is set to trusted by
  default.
• Dynamic Arp inspection is disabled by default.
• Validation check are performed by default.
• ARP acls are predefined for non-dhcp
  environments.
• Answer B

QUESTION NO 4 Select the command from the below
options that you would run to verify the DHCP
binding.
2

• show ip dhcp binding
• show ip snooping binding
• show ip binding dhcp
• show ip dhcp snooping binding
• Answer D

• QUESTION NO 5
• Why is micro-segmentation important in Data
  center environment?
• It can block the external threats at the
  perimeter firewall.
• It is a feature that enables the network to be
  controlled locally only. Hackers can hack it but
  cannot control it remotely.
• It minimizes the segment size and provides lesser
  exposure for lateral movement.
• It is not considered secure but it speeds up the
  communication between hosts.
• Answer C

QUESTION NO 6 DRAG DROP the options in the left
to the correct option in the right that defines
the key functions to achieve micro-segmentation.
Answer
3
QUESTION NO 7 What are the various ways through
which ACI can manage the entire DC fabric both
on-prem and off-prem? Select all applicable
answers.
A. B. C. D. E.
Web UI Cisco Prime Access CLI Cisco SecureX API
Answer A, C, E

• QUESTION NO 8
• Security is the biggest concern for any
  datacenter. As a network administrator, what are
  the three critical needs in datacenter security?
  (choose three)
• Speed
• Segmentation
• Threat protection
• Connectivity
• Accessebility
• Visibility
• Answer B, C, F

QUESTION NO 9
4

• What are the various privilege type for each
  roles supported by APIC? (choose three)
• No access
• Read-only
• Write-only
• Read-write
• All-access
• Answer A, B, D

• QUESTION NO 10
• What is the command you will use along with MAC
  address filter to allow filtering for unicast
  addresses only?
• Set ip filter
• Set cam filter
• Ip filter ltfilter_namegt
• Cam filter ltfilter_namegt
• Answer B

QUESTION NO 11 Two VMs are on the same ESXI host
and we want to implement the Intra-EPG Security
for them. DRAG DROP the option in the left to
the correct sequence in the black spaces in the
right.
Answer
5

• QUESTION NO 12
• When importing a Guest Shell rootfs, which
  requirement must be fulfilled?
• We must configure to allow unsigned packages
  before enabling guestshell
• "signing level signed" command used before
  enabling guestshell
• By default Cisco support for unsigned packages
• We can only run this command from within a Guest
  Shell only and running command outside a switch
  using NX-API is prohibited.
• Answer A

• QUESTION NO 13
• By default, the Guestshell is a 64-bit execution
  space. If 32-bit support is needed, which package
  can be dnf installed by the Data center
  engineer/
• mingw-glib2.x86
• glib.i686
• glibc.i686
• glib.xi386
• Answer B

QUESTION NO 14 Which of the statement is true
regarding bash shell and guest shell as hosting
environments for installing packages in Open
NX-OS? (Choose Two) A. Bash shell this is the
native Open NX-OS Linux environment. It is
disabled by default.
6

• Bash shell To enable access, users must
  explicitly enable the bash shell feature by using
  certain 3rd party packesges on the switch.
• Guest shell this is a secure Linux container
  environment running RedHat 7.5
• Guest shell this is a secure Linux container
  environment running CentOS 7
• Guest Shell It is disabled by default.
• Answer A, D

• QUESTION NO 15
• As an administrator, you are assigned a task to
  configure keychain management in your
  datacenter. Select the right answer from the
  below options.
• For IOS XR software release 7.1.2 and later, you
  must configure the session with a FIPS- approved
  cryptographic algorithm.
• For IOS XR software release 7.1.2 and later, you
  can configure the session with a non FIPS-
  approved cryptographic algorithm.
• If you do not configure the key lifetime, then it
  is considered to be valid for 1 year from the
  date of creation.
• DES-SHA is the strongest cryptographic algorithm.
• Answer A

• QUESTION NO 16
• Which automation tool based on declarative
  resource-based language that means a user
  describes a desired final state rather than
  describing a series of steps to execute.
• Ansible
• Puppet
• Chef
• NMCLI
• Answer B

• QUESTION NO 17
• Which is the Cisco provided GUI tool to help us
  both Day Zero provision (POAP) as well as upgrade
  your Nexus switches?
• Ansible
• DNAC
• IGNITE

7
D. Bash Scripts Answer C

• QUESTION NO 18
• As an administrator, you have been assigned a
  task to implement storage in your network. Please
  select the correct design consideration from the
  below options.
• Port channels or trunking is possible to combine
  multiple storage uplink ports that provide
  physical link redundancy.
• Northbound storage physical connectivity supports
  vPCs like LAN connectivity.
• Connect storage though southbound Cisco storage
  device using Catalyst switches.
• Software configurations including VSANs and
  zoning is not required for providing access to
  storage resources.
• Answer A

• QUESTION NO 19
• If the switch is in a network that uses an HTTP
  proxy server, which environment variables must
  be set up within the Guest Shell? (Choose two)
• http_proxy_server
• http_proxy
• https_proxy_server
• https_proxy_ip
• https_proxy
• Answer B, E

• QUESTION NO 20
• An ISSU may be disruptive if you have configured
  features that are not supported on the new
  software image. To determine the ISSU
  compatibility, which command will you use?
• Show compatibility system
• Show incompatibility system
• Show running-configuration
• Show license matrix
• Answer B
