350-601 VOL2 Question

1

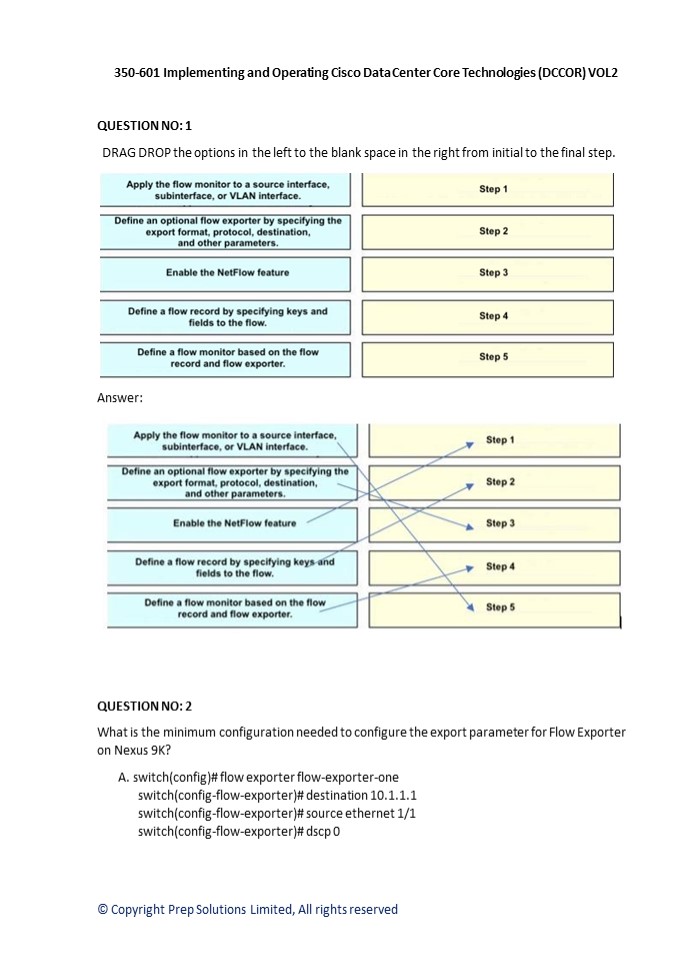

350-601 Implementing and Operating Cisco Data
Center Core Technologies (DCCOR) VOL2 QUESTION
NO 1 DRAG DROP the options in the left to the
blank space in the right from initial to the
final step.
Answer
QUESTION NO 2 What is the minimum configuration
needed to configure the export parameter for Flow
Exporter on Nexus 9K? A. switch(config) flow
exporter flow-exporter-one switch(config-flow-exp
orter) destination 10.1.1.1 switch(config-flow-e
xporter) source ethernet 1/1 switch(config-flow-
exporter) dscp 0
2

• switch(config) flow exporter flow-exporter-one
  switch(config-flow-exporter) destination
  10.1.1.1 switch(config-flow-exporter) source
  ethernet 1/1
• switch(config) flow exporter flow-exporter-one
  switch(config-flow-exporter) destination
  10.1.1.1 switch(config-flow-exporter) source
  ethernet 1/1 switch(config-flow-exporter)
  transport udp 200
• switch(config) flow exporter flow-exporter-one
  switch(config-flow-exporter) destination
  10.1.1.1 switch(config-flow-exporter) dscp 0
• Answer B

QUESTION NO 3 DRAG DROP the commands shown in
the left to the definition on the right.
Answer
3

• QUESTION NO 4
• Name the policy that determine the connections
  and the network communication resources between
  the server and the SAN on the network. These
  policies are included in service profiles and
  service profile templates, and can be used to
  configure multiple servers.
• Fiber Channel Adapter Policy
• SAN Connectivity Policy
• Storage Connection Policy
• ID Range access Policy
• Answer B

• QUESTION NO 5
• Select the two options from below that need to be
  configured before you start deploying ACI layer
  4 to Layer 7 services. (Choose two)
• At least one bridge domain
• Detach the service graph template to a contract
• Skip the device selection policy
• An application profile
• Answer A, D

• QUESTION NO 6
• You are a network admin and you have been
  assigned a tasks to deploy Layer 4 to Layer 7
  services. Select the correct options from below
  that you will perform. (Choose two)
• Export a device package
• Import a device package
• Register the device and the logical interfaces
• Disable trunking on the devices if Cisco ASA
  Firewall services is being used.
• Answer B, C

QUESTION NO 7 You are a network admin and you
have configured Netflow on a switch. You want to
monitor the netflow parameter on the switch
where it shows you SIP, DIP, S-Port, D-Port, Byte
Count Packet Count. Which command will you run
from the below options to get these details at
once?
4

• Show flow exporter
• Clear flow exporter
• Show flow cache
• Show running-config netflow
• Answer C

• QUESTION NO 8
• You have Cisco ACI running in your network. You
  have to configure route peering. Select the
  protocols that supported for route peering.
  (choose two)
• EIGRP
• OSPF
• iBGPv4
• IS-IS
• RIP
• Answer B, C

• QUESTION NO 9
• Before you upgrade or downgrade firmware in a
  Cisco UCS domain, select the two correct options
  from the below options that you will follow.
  (Choose two)
• Review the release notes
• Power off the active fiber interconnect so that
  secondary can take over.
• Back up the configuration into an All
  Configuration backup file.
• Verify that the data path is down.
• Answer A, C

• QUESTION NO 10
• Name the policy that contains a collection of
  target storage ports on storage array that you
  use to configure fibre channel zoning.
• Fiber Channel Adapter Policy
• SAN Connectivity Policy
• Storage Connection Policy
• ID Range access Policy
• Answer C

5

• QUESTION NO 11
• A network engineer is trying to configure Netflow
  on a Cisco Nexus 7000 Series Switches using
  NX-OS, but none of the CLI commands are working
  to do this. What must be configured first before
  Netflow configuration commands are available on
  the Nexus 7000?
• Netflow enable
• Flow enable
• Feature netflow
• Feature flow
• Services netflow
• Answer C

QUESTION NO 12 You have configured HSRP version
2 on a Cisco device to provide for router
redundancy on a LAN segment. Group 12 was used
for the HSRP instance. After this, what virtual
MAC address will the hosts on the LAN use as the
default gateway? A. 0000.5E00.0112 B.
0000.0C9F.F00C C. 3784.0898.1C0C D.
0000.0C9F.F012 Answer B

• QUESTION NO 13
• A network engineer has applied the following
  command to a Cisco NX-OS device ip verify
  unicast source reachable-via any
• What feature has been implemented with this
  command?
• Strict uRPF
• Loose uRPF
• PIM SSM
• MSDP
• Answer B

6

• QUESTION NO 14
• A network administrator must specify the EPG
  Policy Resolution Immediacy parameters to
  determine when a policy should be pushed to the
  leaf switches. Which of the following are valid
  options for this? (Choose three).
• Pre-provision
• At-startup
• Immediate
• Hold-time
• On Demand
• Answer A, C, E

• QUESTION NO 15
• You have been tasked with installing a software
  maintenance upgrade to a Cisco NX-OS device. The
  image has already been added to the hard disk.
  Which command is used to install this image?
• Install add
• Boot system
• Load image
• Install commit
• Answer A

• QUESTION NO 16
• Which of the following OSPF LSA types can only
  exist in a not-so-stubby area (NSSA)?
• Type 1
• Type 5
• Type 6
• Type 7
• Type 8
• Answer D

QUESTION NO 17 Which of the following OSPFv2
authentication methods are supported by Cisco
NX-OS? (Choose two).
7

• MD5 authentication digest
• IPSec
• Simple password authentication
• TACACS authentication
• RADIUS authentication
• Answer A, C Explanation
• OSPFv2 supports authentication to prevent
  unauthorized or invalid routing updates in the
  network. Cisco NX-OS supports two authentication
  methods
• Simple password authentication
• MD5 authentication digest

• QUESTION NO 18
• A network administrator configures BGP. He wants
  to establish a TCP connection between peers that
  can send incremental updates only when a change
  occurs in topology or routing policy. Which TCP
  port can be used in this scenario?
• TCP port 179
• TCP port 80
• TCP port 8080
• TCP port 43
• Answer A Explanation
• BGP uses TCP port 179 to create a TCP session
  with a peer. When a TCP connection is established
  between peers, each BGP peer initially exchanges
  all of its routesthe complete BGP routing
  tablewith the other. After this initial
  exchange, the BGP peers send only incremental
  updates when a topology change occurs in the
  network or when a routing policy change occurs.
  In the inactivity between these updates, peers
  exchange messages called keepalives.

• QUESTION NO 19
• In which of the following scenarios does BFD send
  a failure detection notice to BFD-enabled
  protocols?
• Detects a failure in AS-path
• Detects a failure in the forwarding path
• Detects a failure in network convergence
• Detects a failure in the protocol recalculation
  process

8
Answer B Explanation BFD sends a failure
detection notice to the BFD-enabled protocols
when it detects a failure in the forwarding
path. The local device can initiate the protocol
recalculation process and reduce the overall
network convergence time.

• QUESTION NO 20
• Which configuration tasks trigger the automatic
  MLD process on a device using IGMPv2? (Choose
  three).
• Enable PIM6
• Enable non-link-local group reports
• Enable link-local group reports
• Statically bind a local multicast group
• Dynamically bind a local multicast group
• Enable PIM sparse mode
• Answer A, C, D Explanation
• The MLD process is started automatically on the
  device. You cannot enable MLD manually on an
  interface. MLD is enabled automatically when you
  perform one of the following configuration tasks
  on an interface
• Enable PIM6
• Statically bind a local multicast group
• Enable link-local group reports
• Reference https//www.cisco.com/c/en/us/td/docs/s
  witches/datacenter/nexus9000/sw/92x/multicast/b-
  cisco-nexus-9000-series-nx-os-multicast-routing-co
  nfiguration-guide-92x/b-cisco-nexus-9000-
  series-nx-os-multicast-routing-configuration-guide
  -92x_chapter_0100.html
