Magento 2 Paya Connect

1

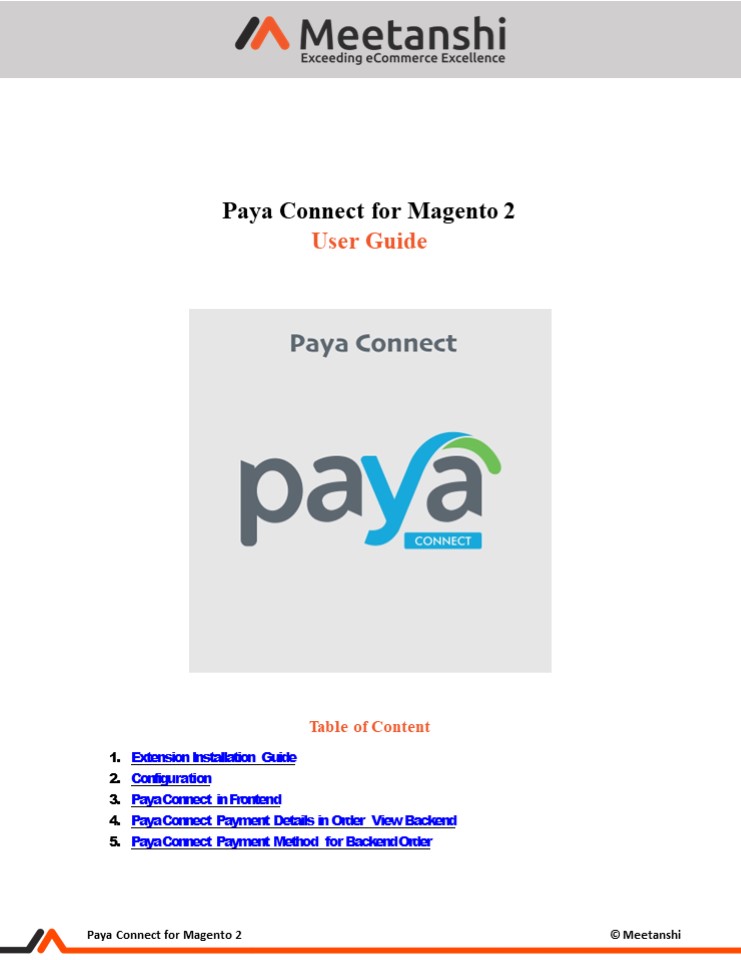

Paya Connect for Magento 2 User Guide

• Table of Content
• Extension Installation Guide
• Configuration
• Paya Connect in Frontend
• Paya Connect Payment Details in Order View
  Backend
• Paya Connect Payment Method for Backend Order

2

• Extension Installation
• For Magento Marketplace Customers
• Find the Composer name and version of the
  extension in the extensions composer.json file.
• Login to your SSH and run
• composer require meetanshi/magento-2-paya-connect
• Enter your authentication keys. Your public key
  is your username your private key is your
  password.
• Wait for Composer to finish updating your project
  dependencies and make sure there
• arent any errors.
• To verify that the extension installed properly,
  run the command
• php bin/magento modulestatus Meetanshi_PayaConnec
  t
• By default, the extension is probably disabled.
• Enable the extension and clear static view files
• php bin/magento moduleenable Meetanshi_PayaConnec
  t --clear-static-content
• php bin/magento setupupgrade
• For Magento version 2.0.x to 2.1.x - php
  bin/magento setupstatic-contentdeploy
• For Magento version 2.2.x above - php
  bin/magento setupstatic-contentdeploy f
• php bin/magento cacheflush
• For Meetanshi Customers

3

• Configuration
• For configuring the extension, login to Magento
  2, move to Stores ? Configuration ?? Sales ?
  Payment Methods ? Paya Connect Payments -
  Meetanshi, where you can find various settings
  to configure the extension.
• Enabled Enable or disable Paya Connect extension
  from here.
• Vault Enabled Set YES to enable vault to allow
  customers save cards for future transactions.
• Basic Paya Connect Settings
• Title Enter title for the Paya Connect payment
  method to show in the frontend.
• Show Paya Logo Select YES to show Paya logo on
  the checkout page in frontend.
• Payment Action Select one of the payment actions
  for the payment capture.
• Authorize Authorizes and validates card for the
  order amount. The admin has to manually capture
  the amount (by generating invoice using Capture
  Online option) within the authorization hold
  period which is 7 calendar days for Paya connect.
• Authorize and Capture Authorizes and captures
  the order amount immediately.
• Sandbox Mode Set YES to enable sandbox mode for
  the payment gateway.
• User API Key Enter the user API key you have
  received after registration with Paya Connect.
• User Hash Key Enter the user hash key you have
  received after registration with Paya Connect.
• User ID Enter the user ID you have received
  after registration with Paya Connect.
• Location ID Enter the location ID you have
  received after registration with Paya Connect.
• Developer ID Enter the developer ID you have
  received after registration with Paya Connect.
• Login to https//developer.sandbox.payaconnect.com
  / with your credentials

4
o Click on the Project Details tab to get the
location ID, Developer ID and Hash key. Copy
each and paste them in the relevant field in
Magento 2 extension configuration.
o Click on the API Credentials tab to get the
user ID, user API key and User hash key. Copy
each and paste them in the relevant field in
Magento 2 extension configuration.

• Advanced Paya Connect Settings
• Vault Title Enter the vault title to show in the
  email to customers.
• Add Surcharge Select YES to add surcharge on the
  orders placed through Paya Connect method.
• Show Account Holder Name in Payment Form Select
  YES to show account holder name in the payment
  form on the checkout page.
• New Order Status Set status for the new orders
  placed through Paya Connect method.
• Credit Card Types Select credit cards to allow
  use of while paying through the Paya Connect.
• Debug Select YES to enable debug.

5

• Instructions Enter additional instructions to
  show on the checkout page in the frontend.
• Minimum Order Total Enter the minimum order
  total to allow the use of the payment method.
• Maximum Order Total Enter the minimum order
  total to allow the use of the payment method.
• Sort Order Enter sort order of the payment
  method.

6
3. Paya Connect in Frontend Once the extension is
configured, it can be seen enabled in the
frontend. Simply add products to cart and go to
the check out, you can see payment method
enabled. Select it, enter the card details in
the payment form and click submit to finish
payment and place the order. The customers can
tick the box here to save the card for future
transactions.
7

• Paya Connect Payment Details in My Account
  Section
• Immediately after the order is placed, the Paya
  Connect payment details can be seen in order
  view under customers My Account section.

8

• Paya Connect Stored Cards
• If the vault is enabled and the customers have
  ticked the box from the checkout page to save
  the cards for the future transactions, they can
  see stored cards in their My Account section
• under Stored Payment Methods tab.

• New Order Placement using Stored Cards
• If the vault is enabled and the customer has
  ticked the box from the checkout page to save the
  card for the future transactions, he can use the
  stored card to pay for the new order.

9
4. Paya Connect Payment Details in Order View
Backend Apart from the customers My Account
section, the admin can see Paya Connect payment
details from the Sales ? Orders ? Order View
section in the backend.
10
5. Paya Connect Payment Method for Backend
Order Just as the frontend, Paya Connect payment
method also works with backend orders. Admin
needs to create a new order, select the customer,
add products, enter the address details and
select Paya Connect payment method, add card
details and click submit order to place order
from backend using the Paya Connect payment
method.
