Magento 2 SecurePay Payment

1

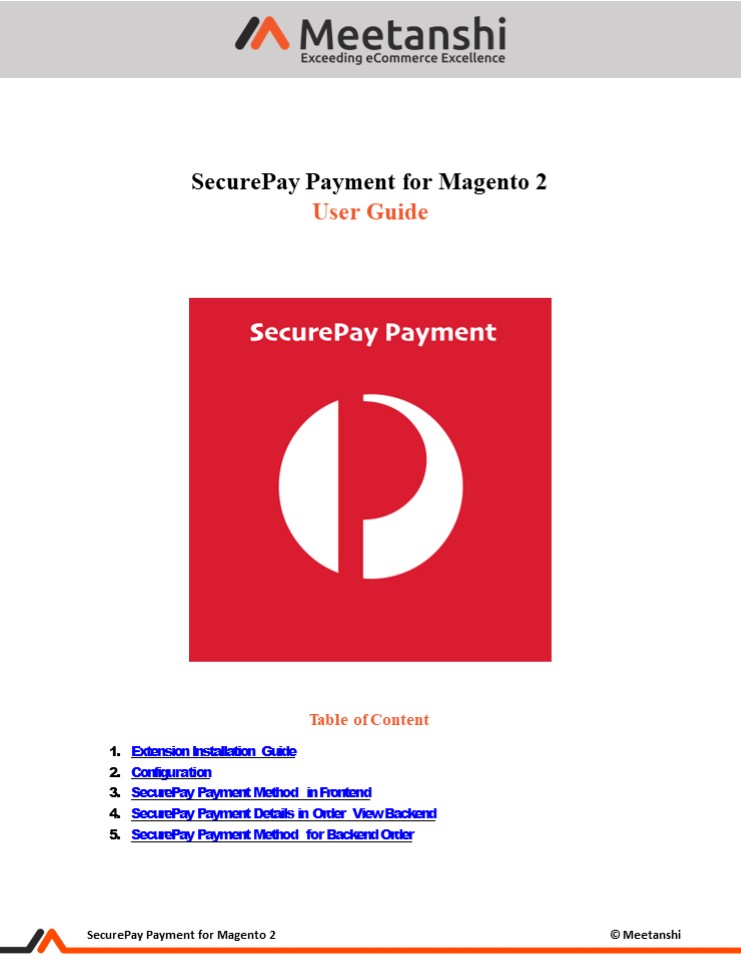

SecurePay Payment for Magento 2 User Guide

• Table of Content
• Extension Installation Guide
• Configuration
• SecurePay Payment Method in Frontend
• SecurePay Payment Details in Order View Backend
• SecurePay Payment Method for Backend Order

2

• Extension Installation
• For Magento Marketplace Customers
• Find the Composer name and version of the
  extension in the extensions composer.json file.
• Login to your SSH and run
• composer require meetanshi/magento-2-securepay-pay
  ment
• Enter your authentication keys. Your public key
  is your username your private key is your
  password.
• Wait for Composer to finish updating your project
  dependencies and make sure there
• arent any errors.
• To verify that the extension installed properly,
  run the command
• php bin/magento modulestatus Meetanshi_Securepay
• By default, the extension is probably disabled.
• Enable the extension and clear static view files
• php bin/magento moduleenable Meetanshi_Securepay
  --clear-static-content
• php bin/magento setupupgrade
• For Magento version 2.0.x to 2.1.x - php
  bin/magento setupstatic-contentdeploy
• For Magento version 2.2.x above - php
  bin/magento setupstatic-contentdeploy f
• php bin/magento cacheflush
• For Meetanshi Customers

3

• Configuration
• For configuring the extension, login to Magento
  2, move to Stores ? Configuration ?? Sales ?
  Payment Methods ? SecurePay Payment - Meetanshi,
  where you can find various settings to configure
  the extension.
• Enabled Enable SecurePay Payment extension from
  here.
• Title Enter title for the SecurePay payment
  method to show in the frontend.
• Show SecurePay Logo Select YES to show SecurePay
  logo on the checkout page in frontend.
• Sandbox Mode Set YES to enable sandbox mode for
  the payment gateway.
• Merchant Code Follow the steps to get your
  publishable key from SecurePay.
• Client ID Follow the steps to get your client ID
  from SecurePay.
• Client Secret Follow the steps to get your
  client secret from SecurePay.
• Payment Action Select one of the payment actions
  for the payment capture.
• Authorize Authorizes and validates card for the
  order amount. The admin has to manually capture
  the amount (by generating invoice using Capture
  Online option) within the authorization hold
  period which is 5 to 10 business days for
  SecurePay.
• Authorize and Capture Authorizes and captures
  the order amount immediately.
• New Order Status Set status for the new orders
  placed through SecurePay method.
• Credit Card Types Select the credit card types
  to allow using for SecurePay payment method.
• Payment from Applicable Countries Select all or
  selected countries to allow payments using
  SecurePay.
• Payment from Selected Countries If you have set
  selected countries from the above option, select
  the countries to allow payments using SecurePay.
• Debug Select YES to enable debug.
• Instructions Enter additional instructions to
  show on the checkout page in the frontend.

4
(No Transcript)
5
3. SecurePay Payment Method in Frontend Once the
extension is configured, it can be seen enabled
in the frontend. Simply add products to cart and
go to the checkout, you can see the SecurePay
Payment method enabled. Select it, enter the
card details and click Place Order to finish
payment and place the order successfully. The
customers can tick the box here to save the card
for future transactions.
6

• SecurePay Payment Details in My Account Section
• Immediately after the order is placed, the
  SecurePay Payment details can be seen in order
  view tab under the customers My Account section.

7

• SecurePay Payment Stored Cards
• If the vault is enabled and the customers have
  ticked the box from the checkout page to save
  the cards for the future transactions, they can
  see SecurePay stored cards in their My Account
• section under Stored Payment Methods tab.

8

• New Order Placement using Stored Cards
• If the vault is enabled and the customer has
  ticked the box from the checkout page to save the
  card for the future transactions, he can use the
  stored card to pay for the new order.

9
4. SecurePay Payment Details in Order View
Backend Apart from the customers My Account
section, the admin can also see SecurePay payment
details from the Sales ? Orders ? Order View
section in the backend.
10
5. SecurePay Payment Method for Backend
Order Just as the frontend, SecurePay payment
method also works with the backend orders. Admin
needs to create a new order, select the customer,
add products, enter the address details, select
SecurePay method, add card details and click
Submit Order to place order from the backend
using the SecurePay Payment method.
11

• New Backend Order Placement using Stored Cards
• If the customer has stored cards for the future
  transactions, the admin can use the stored cards
  while creating a new order from the backend. The
  admin needs to create a new order, select the
  customer, add products, enter the address
  details, select SecurePay stored card, and click
  Submit Order to place order from the backend
  using the SecurePay payment stored cards.
