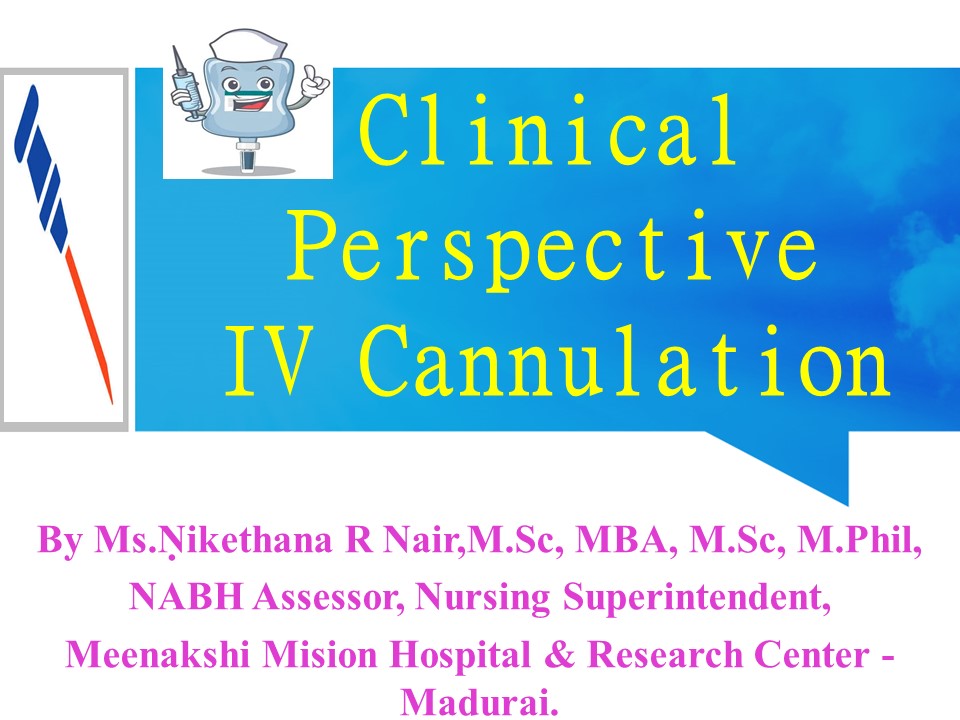

Clinical Perspective IV Cannulation

• By Ms.?ikethana R Nair,M.Sc, MBA, M.Sc, M.Phil,
• NABH Assessor, Nursing Superintendent,
• Meenakshi Mision Hospital Research Center -
  Madurai.

2
Definition

• Intravenous cannulation is a technique in which a
  cannula is placed inside a vein to provide venous
  access.

3
Types of Cannula

• IV Cannula Pen Type Model
• IV Cannula with Wings Model
• IV Cannula with Injection Part Model
• IV Cannula Y Type Model
• Scalp Vein Cannula

4
(No Transcript)
5
Gauge Size Shades
No. Colour Gauge Length (mm) Flow Rate ml/min
1 Orange 14 2.0 (45) 270
2 Grey 16 1.7 (45) 180
3 Green 18 1.2 (45) 80
4 Pink 20 1.0 (32) 60
5 Blue 22 0.8 (25) 31
6 Yellow 24 0.9 (19) 19
7 Violet/Purple 26 0.6 (19) 14
6
Closed Cannulae Parts
7
Types of Fixator
8
Structure of Vein
9
Why Veins are Suitable for Insertion

• Superficial
• Palpabe
• Visible
• Blood at Low Pressure
• Relatively Large internal Diameter
• Tough Vasuclar Wall - Able to form a seal around
  the cannula
• Offer a Rapid Route - Circulatory system

10
Signs of Good Vein

1. Bouncy
2. Soft
3. Above Previous Vein
4. Refills when Depressed
5. Visible
6. Has a Large Lumen
7. Well Supported
8. Staright
9. Easily Palpable

11
Tips
No. Features Rational
1 Smallest size of catheter
2 EMR situation use a large gauge catheter
3 Upper Extremities
4 Lower extremities
5 Peripheral venous access interfere less with pt's
6 Recommended to choose a straight portion of a vein
7 Use the patient's non-dominant arm
8 For prolonged courses of therapy it is recommended to start distally move proximally as distal catheters are replaced.
12
Tips
No. Features Rational
1 Smallest size of catheter To prevent damage to the vessel intima
2 EMR situation use a large gauge catheter To allow administration of large volumes of fluid quickly
3 Upper Extremities The superficial veins
4 Lower extremities Peripheral venous access
5 Peripheral venous access interfere less with pt's Mobility pose a lower risk for phlebitis
6 Recommended to choose a straight portion of a vein To minimize the chance of hitting valves
7 Use the patient's non-dominant arm Convenience, Further damage is been prevented
8 For prolonged courses of therapy it is recommended to start distally move proximally as distal catheters are replaced. Distal Damage - Proximal is available for the further line Proximal As first Line - Distal u cant get the line for the therapy
13
Indications

• Repeated blood sampling
• IV fluids
• Medications
• Chemotherapy
• Nutritional Support
• Blood or Blood products administration
• Radiological contrast agents for CT, MRI or
  nuclear imaging

14
Contraindications

• Avoid Peripheral Venous Access in
• An injured,
• Infected,
• Burned extremity - if possible

15
(No Transcript)
16
Volar Wrist Dorsal Wrist
17
Lower Limbs
18
Scalp Veins - PAEDIATRICS
19
(No Transcript)
20
Inappropriate Sites

• Edematous Site
• Haematous
• Scarred Sites
• Arms with Fistula's or Vascular Grafts
• Thrombosed
• Fibrosed
• Thin Fragile
• Near Bony Prominises
• Have undergone Multiple Pricks

21
Equipment

• Non-sterile gloves
• Tourniquet
• Antiseptic or Alcohol wipes
• Anaesthetic Agent
• 5-ml syringe with NS or Poshi Flush (3ml or 5ml)
• Sterile gauze
• Cannula
• Saline
• Tegaderm or Dynaplast or Easy Fix
• Vein Deductor

22
Advance Techniques
Red - SP Saline Syringe Blue - Xs Saline Syringe
23
Topical Anesthesia for IV Insertion

• Lidocaine
• Buffered lidocaine
• Bacteriostatic normal saline

24
Before The Procedure

• Introduce yourself to the patient.
• Explain the procedure to the patient gain
  informed consent to continue
• Make sure there is adequate light that the room
  is warm enough to encourage vasodilation
• Make sure the patient is in a comfortable
  position
• The patients skin should be kept clean for the
  procedure

25
Standard Precautions
26
Steps of Procedure
27
Steps of Procedure
28
Steps of Procedure
29
Steps of Procedure
30
(No Transcript)
31
Stop Remove
32
Cannula Placement
33
IV Cannulation in Fragile Veins

• Say no to tourniquet as much as possible
• Use the smallest catheter as much as possible -
  20 to 22g
• Use Bevel Up, Low Angle Slowly but surey
  approach
• Secure the catherter with Micropore or
  Transparent dressing
• Provide Health Education

34
IV Cannulation for the Geriatrics

• Extremely Challenging
• Avoid applying too much friction when preparing
  the skin
• use the smallest catheter
• Know the veins depth
• If possible do not use tourniquet, Incase use a
  soft material ones
• stabilise the vein insert the catheter on top
  of the vein
• Hypoallergic Tape tape to be used

35
Documentation

• Date Time
• Site Size of the Cannula
• Any Problems Encountered
• Notes Eaxmple
• 22/8/19 _at_ 3pm Inserted 16G Needle under Clean
  Techique in a single prick in Rt Metacarpel
  region by S/N XX,Pt cooperated, Back Flow
  Present, Flushed with 5ml Poshi flush or NS,Line
  Intact Patent,Line Secured with dynaplast
  labelled with date time. Score I 0/4 P 0/5

36

• 22/8/19 _at_ 3pmInserted 20G Needle under Clean
  Techique in Lt anaesthetist vein. First prick
  failed since there was no back flow or
  infiltration present in Lft Cephalic Vein by S/N
  xyz.
• By 2nd prick line was secured by Anaesthetist
  XXXX. Pt was irritable.
• Back Flow Present, Flushed with 5ml Poshi flush
  or NS,Line Intact Patent
• Line Secured with Tegaderm labelled with date
  time.
• Score I 0/4 P 0/5

37
Complications

• Pain
• Cannula Clott
• Blood stops flowing into the flashback chamber
• Arterial puncture
• Hypersensitivity reaction
• Peripheral nerve palsy
• Thrombophlebitis
• Phebilitis
• Infiltration
• Extravasation

38
(No Transcript)
39
VIPS (Visual Infiltration Score)
40
Phebilitis Scale
41
Crub the Hub
42
Purpose

• ?To administer the appropriate amount of fluid to
  the patient
• ?To prevent fluid overload fluid deficiency
• ?To prevent, treat support the patients
  condition with the help of correct administration
  of fluid.

43
Formula

• Amt of fluid to be infused (X)DF
• No. of hours to be flown (X) 60

44
Macro Drops

• 1ml 15 macro drops.
• 1macro drop 4 micro drops.
• 15 macro drop 154 60 micro drops.

45
Example Ordered Amount

• 6 pints for 24 hours
• One Pint 24 / 6 4 Hours (500 ml / 4hour)
• Per hour 500 / 4 125 ml / hour
• Amt of fluid to be infused DF
• No. of hrs to be flown 60
• 12515 1875 31.25
• 160 60

46
Ready Reckoner
