Fast TC Charger 6.6KW HK-L on board Charger

1

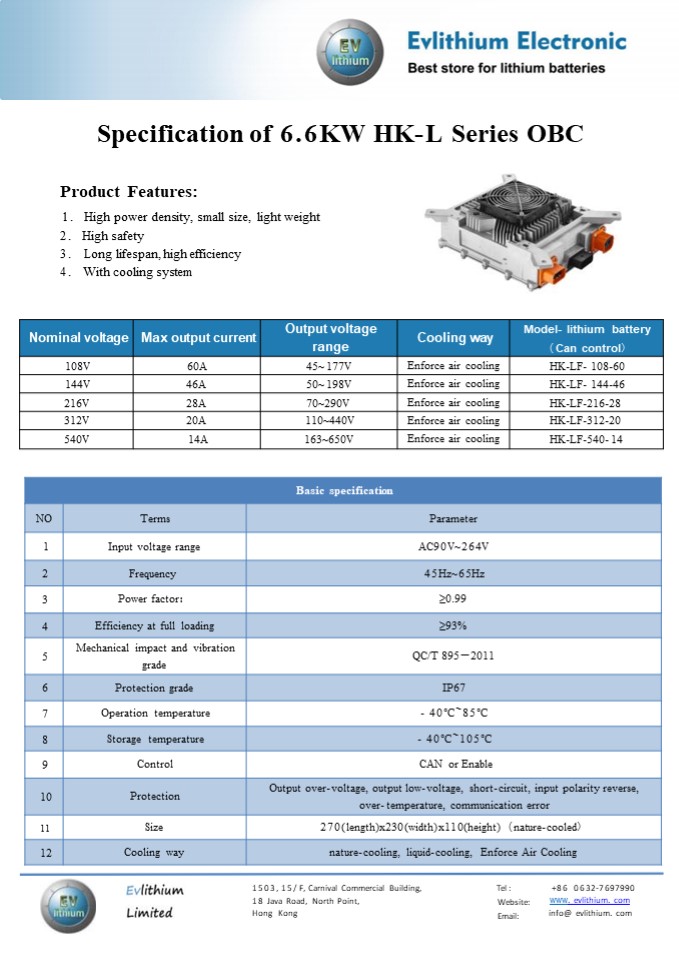

Specification of 6.6KW HK-L Series OBC
Product Features 1. High power density, small
size, light weight 2. High safety 3. Long
lifespan,high efficiency 4. With cooling system
Nominal voltage Max output current Output voltage range Cooling way Model-lithium battery (Can control)
108V 60A 45 177V Enforce air cooling HK-LF- 108-60
144V 46A 50 198V Enforce air cooling HK-LF- 144-46
216V 28A 70290V Enforce air cooling HK-LF-216-28
312V 20A 110440V Enforce air cooling HK-LF-312-20
540V 14A 163650V Enforce air cooling HK-LF-540- 14
Basic specification Basic specification Basic specification
NO Terms Parameter
1 Input voltage range AC90V264V
2 Frequency 45Hz65Hz
3 Power factor 0.99
4 Efficiency at full loading 93
5 Mechanical impact and vibration grade QC/T 895-2011
6 Protection grade IP67
7 Operation temperature - 40?85?
8 Storage temperature - 40?105?
9 Control CAN or Enable
10 Protection Output over-voltage, output low-voltage, short-circuit, input polarity reverse, over-temperature, communication error
11 Size 270(length)x230(width)x110(height) (nature-cooled)
12 Cooling way nature-cooling, liquid-cooling, Enforce Air Cooling
