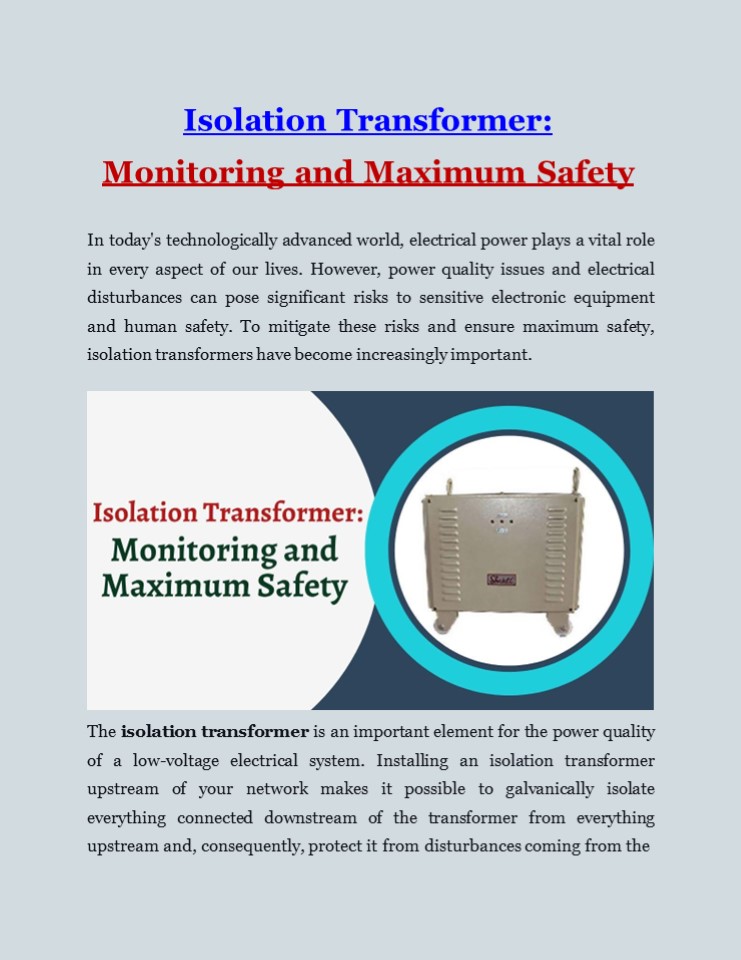

Isolation Transformer: Monitoring and Maximum Safety

1
Isolation Transformer Monitoring and Maximum
Safety
In today's technologically advanced world,
electrical power plays a vital role in every
aspect of our lives. However, power quality
issues and electrical disturbances can pose
significant risks to sensitive electronic
equipment and human safety. To mitigate these
risks and ensure maximum safety, isolation
transformers have become increasingly important.
The isolation transformer is an important element
for the power quality of a low-voltage
electrical system. Installing an isolation
transformer upstream of your network makes it
possible to galvanically isolate everything
connected downstream of the transformer from
everything upstream and, consequently, protect
it from disturbances coming from the
2
distribution network, in particular transient
over voltages and conducted disturbances.
Isolation transformers are used to isolate two
different parts of a circuit from each other
while maintaining electrical continuity. This can
help to prevent electrical shock, reduce
electrical noise, and provide surge
protection. What is an isolation
transformer? Isolation transformers are widely
used to prevent electrical shock, reduce
electrical noise, and provide surge protection.
The function of an isolating transformer is to
separate the voltage circuit of electrical
equipment from the mains through the use of
separate power windings isolated from each
other. The use of isolation transformers in India
allows you to maximize electrical safety and
protect electrical equipment. Connecting an
isolating transformer The generally accepted home
wiring scheme, implemented in accordance with
current requirements, provides for the presence,
along with phase and neutral, of a ground
wire. Consumers connected to such a network are
grounded so that in the event of an emergency
current leakage, the residual current device
(RCD) mounted on the switchboard cuts off the
power supply. However, not every electrical
appliance is provided with grounding. In such
cases, the best solution to the problem of their
safe operation is the installation of an
isolating transformer, in the secondary winding
of which an autonomous and reliably isolated
electrical circuit appears.
3

• In this circuit, a potential difference exists
  between the contacts of the transformer, and in
  the event of a breakdown in the insulation of the
  electrical appliance or the network itself, the
  electrical potential will again be present on
  the faulty device. However, it does not pose any
  danger to humans since, due to the lack of
  connection between the connection and the ground
  potential, the current flow circuit is cut off.
• To avoid this, the following safety precautions
  must be strictly followed
• The primary winding connected to the mains must
  be equipped with an RCD
• Do not allow grounding of the housing of
  electrical appliances connected to the network
  through an isolating transformer
• Connect the isolation transformer to only one
  electrical appliance. If it is necessary to
  connect several devices, it is mandatory to use
  voltage control equipment.
• Monitoring an Isolation Transformer
• Monitoring the performance of an isolation
  transformer with a 3-Phase Linear Stabilizer is
  vital to ensure its optimal functionality and
  safety.
• Key parameters to monitor include
• Voltage The voltage should be monitored to
  ensure that it is within the appropriate range.
  If the voltage is too high or too low, it can
  cause problems in the circuit.

4

• Temperature The temperature of the transformer
  should be monitored to ensure that it is not
  overheating. If the transformer gets too hot, it
  can cause damage to the insulation and other
  components.
• Humidity Humidity should be monitored to ensure
  that the transformer is not affected by
  moisture. Moisture can cause corrosion and other
  damage to the transformer.
• Insulation resistance The insulation resistance
  should be monitored to ensure that the
  dielectric barrier is functioning properly. If
  the insulation resistance is too low, it can
  cause electrical continuity between the two
  circuits.
• Efficiency and applications of an isolating
  transformer
• During the operation of any transformer, the loss
  of a certain part of the energy is inevitable.
  For isolating transformers, depending on the type
  of construction, the efficiency varies in the
  range from 75 to 90.
• Most often, isolation transformers are needed if
  there are increased requirements for electrical
  safety
• rooms characterized by elevated humidity levels
• basements and semi-basements
• cable wells
• work with electrical appliances of the first
  class of electrical safety
• the power supply of medical stationary
  installations and devices, etc.

5
Maximizing Safety with an Isolation
Transformer While isolation transformers can
provide an additional level of safety when
working with electricity, it is still important
to take proper safety precautions. Here are some
ways to maximize safety when using an isolation
transformer Use the right equipment Make sure
that the isolation transformer is rated for the
voltage and current that will be used in the
circuit. Using an isolation transformer that is
not properly rated can cause damage to the
transformer and potentially create a safety
hazard. Follow proper installation procedures
Follow the installation instructions of the
isolation transformer manufacturer in jaipur
when installing the isolation transformer.
Improper installation can cause damage to the
transformer and create a safety hazard. Ground
the circuit The circuit should be properly
grounded to prevent electrical shocks. Make sure
that the ground wire is securely connected and
that the ground is properly tested before working
on the circuit. Use personal protective
equipment When working with electricity, it is
important to wear personal protective equipment
(PPE) such as gloves, goggles, and a face
shield. This can help prevent injuries from
electrical shocks and other hazards. Regularly
inspect and maintain the transformer Regularly
inspect the isolation transformer to ensure that
it is functioning properly. Perform routine
maintenance, such as cleaning and lubricating the
transformer, to keep it in good working
condition.
6
Conclusion From the foregoing, it can be
concluded that an isolation transformer is a
rather useful device that can significantly
increase the level of overall electrical safety.
However, when utilizing isolation transformers
for maximum safety, it is crucial to prioritize
monitoring, adherence to safety protocols, and
regular maintenance. However, it is equally
important to rely on reputable manufacturers for
obtaining high-quality isolation
transformers. Choosing reputable isolation
transformer manufacturers in india ensures that
the transformers are designed, manufactured, and
tested to meet industry standards, providing
enhanced safety and reliability. Reputable
manufacturers prioritize product quality, adhere
to stringent safety regulations, and offer
warranties and technical support. By selecting
isolation transformers from trusted
manufacturers, users can have confidence in the
performance, durability, and safety of the
equipment, ultimately reducing risks and
promoting a secure electrical environment. Source
