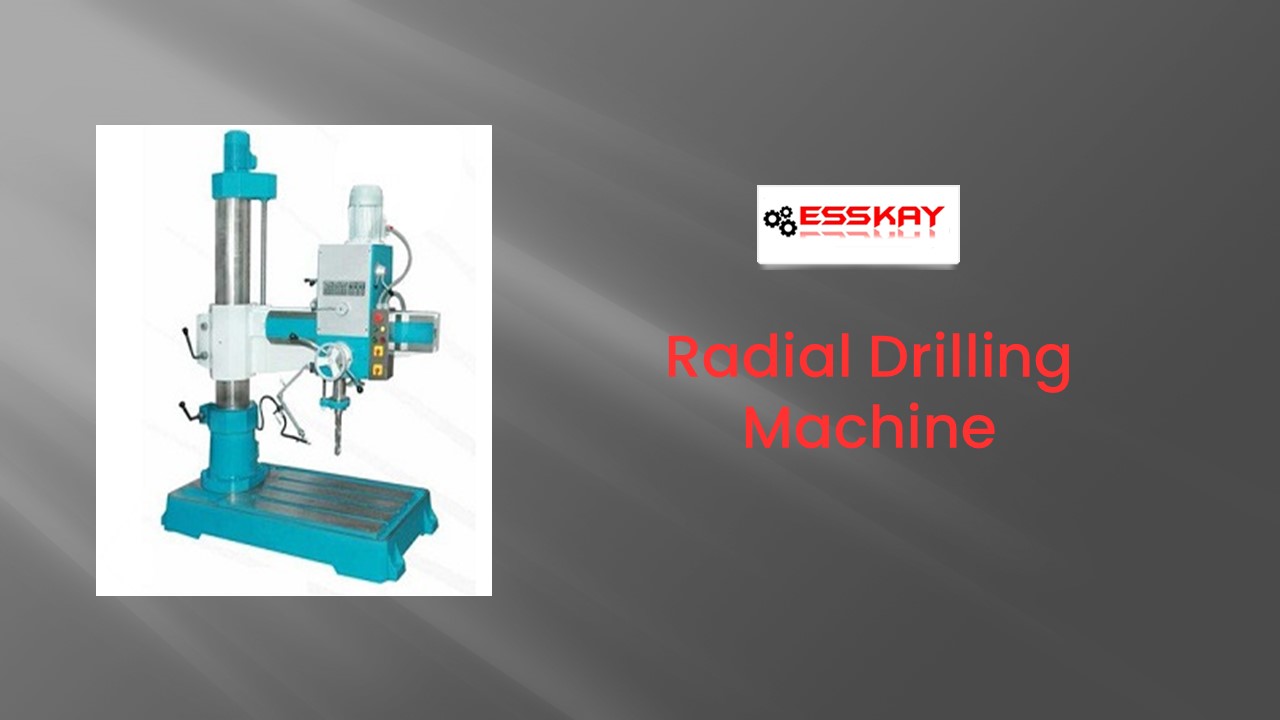

Radial Drilling Machine
2
Radial Drilling Machine is a heavy machinery
tool, primarily used for making round holes in
mediums to large and heavy workpieces. these
machines are used to drill holes in a given
radial distance. It is mainly used when the
components size is larges in height. A radial
drilling machine is a cylindrical geared electric
drill head that is mounted on an axial armature
that can rotate up to its full extent to bore
into any substance. Since heavy work cannot move
much, the radial drilling machine is made in such
a way that the machine tool can move any part of
heavy work without doing much work. This
technology is perfect for drilling, boring,
reaming, tapping and counterboring very large and
heavy parts of different metrologies.
3
Working Principle
of
Radial Drilling Machine
4
When power is supplied to the motor, the spindle
rotates, causing the attached stepped pulley to
also rotate. On the opposite end, a stepped
pulley is attached, which can be inverted to
increase or decrease the rotational speed. A
V-belt is installed between the stepped pulleys
for maximum power transmission. Now, the drill
bit that was placed in the fixed workpiece is
connected to the spindle. As it rotates through
the rotation of pulleys, the drill bit rotates.
The spindle is moved down to advance the drilling
process with the help of a handwheel. After the
hole is drilled, the handwheel is rotated to lift
the spindle.
5
Components
of
Radial Drilling Machine
6
1) Base
The base is usually made of cast iron. The reason
behind this is that when you use the radial drill
for machining, there will be a lot of vibration
in it. cast iron has a remarkable ability to
absorb the vibration produced by the machine
parts. But that is not the main function of the
base. The main function of the base is to provide
support to the assembly mounted on it.
7
2) Column
The column is a vertical pillar that is mounted
on the rear side of the base. Just like the base,
it is also made from cast iron. The main function
of the column is to support and hold the radial
arm assembly. the radial arm that is mounted on
the column is designed in such a way that it can
slide easily up and down on the surface of the
pillar.
8
3) Radial Arm
This is the part that is attached to the column.
Radial arm is actually a mechanical tool which
supports the drill head. This part can rotate 360
??degrees around the column. It has so many
unique movements that make the radial drill
machine different from any other drill machine.
9
4) Drill Head
The drill head is mounted on the radial arm and
drives the drill spindle. It engages all
mechanisms to drive and feed the drill at
different speeds.
10
5) Motor
The motor is present at the top of the drill
head, which drives the horizontal axis. Its main
job is to provide rotary drive to the spindle.
The more drill capacity you want the more
powerful motor you will need.
11
6) Spindle
The main function of the spindle is to support
your tool and provide a rotary drive so that it
can easily make a hole in your workpiece without
breaking or falling.
12
7) Table
It is placed above the column. It provides you
the facility to hold the workpiece during the
drilling operation. Usually, the table comes in a
round or rectangle shape.
13
