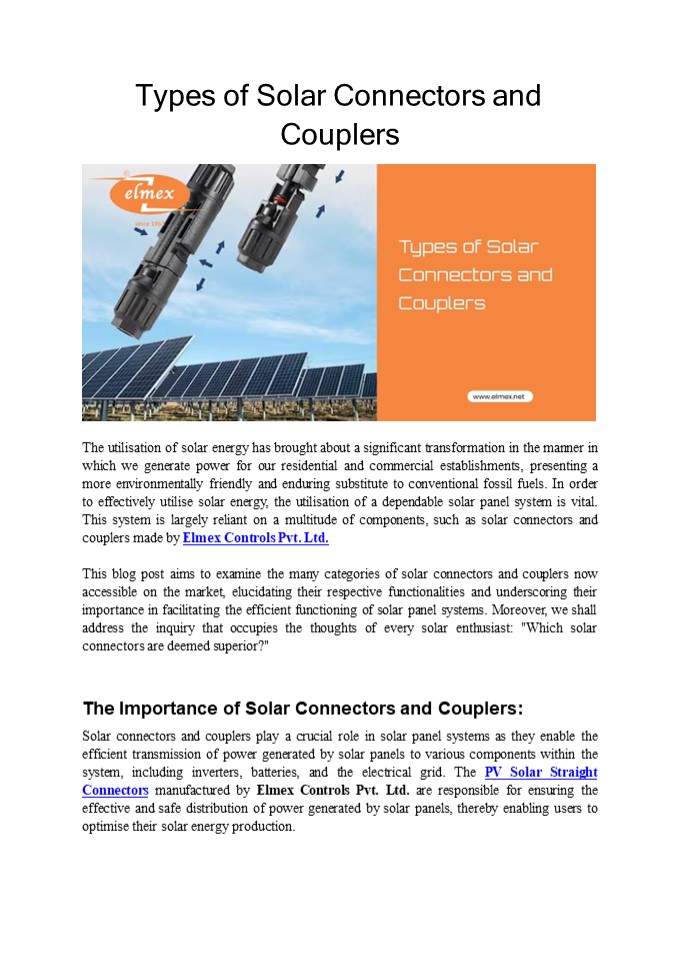

Types of Solar Connectors and Couplers
The utilisation of solar energy has brought about
a significant transformation in the manner in
which we generate power for our residential and
commercial establishments, presenting a more
environmentally friendly and enduring substitute
to conventional fossil fuels. In order to
effectively utilise solar energy, the utilisation
of a dependable solar panel system is vital.
This system is largely reliant on a multitude of
components, such as solar connectors and
couplers made by Elmex Controls Pvt. Ltd. This
blog post aims to examine the many categories of
solar connectors and couplers now accessible on
the market, elucidating their respective
functionalities and underscoring their
importance in facilitating the efficient
functioning of solar panel systems. Moreover, we
shall address the inquiry that occupies the
thoughts of every solar enthusiast "Which solar
connectors are deemed superior?" The Importance
of Solar Connectors and Couplers Solar
connectors and couplers play a crucial role in
solar panel systems as they enable the efficient
transmission of power generated by solar panels
to various components within the system,
including inverters, batteries, and the
electrical grid. The PV Solar Straight
Connectors manufactured by Elmex Controls Pvt.
Ltd. are responsible for ensuring the effective
and safe distribution of power generated by solar
panels, thereby enabling users to optimise their
solar energy production.
2

• Types of Solar Connectors
• MC4 Connectors
• MC4 connections are widely utilised in
  photovoltaic systems as one of the prevailing
  sorts of solar connectors. The aforementioned
  products have gained recognition for their
  notable attributes, including their dependable
  performance, long-lasting nature, and
  user-friendly installation process. MC4
  connections are specifically engineered to
  endure harsh weather conditions and ensure a
  reliable electrical connection, hence minimising
  the likelihood of electrical malfunctions. Solar
  installers often prefer these devices due to
  their compatibility with a wide range of solar
  panels and inverters.
• T4 Connectors
• T4 connectors exhibit comparable performance and
  compatibility to MC4 connectors. Nevertheless,
  their form exhibits a little variation,
  characterised by a distinctive "T" shape. T4
  connectors are renowned for their robustness and
  user-friendly nature, rendering them a viable
  option for solar installations in both
  residential and commercial settings. If you are
  looking for the most efficient PV Solar Straight
  Inline Fuse Connectors, Elmex Controls Pvt. Ltd.
  is the right place for you.
• Amphenol H4 Connectors
• The Amphenol H4 connections have gained
  recognition for their notable capability to
  handle high levels of power, rendering them
  well-suited for extensive solar initiatives. The
  primary objective of these connectors is to
  mitigate power losses and establish a connection
  that is both secure and dependable. Utility-scale
  solar projects frequently employ them due to
  their crucial importance in achieving high
  efficiency.
• Solarlok Connectors
• Solarlok connectors are renowned for their
  tool-free installation, hence streamlining the
  assembly procedure for solar panels. The devices
  have been engineered with the intention of being
  tiny and lightweight, all the while ensuring a
  robust and dependable connection. Solarlok
  connections are well-suited for do-it-yourself
  solar panel installations and projects of a
  smaller scale.
• Tyco Solarlok Connectors

3

• resources, thereby guaranteeing sustained
  dependability. Tyco Solarlok connections are
  frequently employed in residential solar
  installations.
• Types of Solar Couplers
• Y-Connectors
• Y-connectors, alternatively referred to as branch
  connectors, are employed for the purpose of
  parallel-connecting several solar panels. These
  devices facilitate the integration of several
  panels' outputs into a unified wire, hence
  minimising the number of cables required inside
  a solar panel system. The utilisation of
  Y-connectors is crucial in order to enhance the
  operational efficiency of one's solar array.
• In-Line Couplers
• In-line couplers, as their name implies, serve
  the purpose of facilitating a direct connection
  between two solar wires. These connectors are
  frequently employed for the purpose of
  increasing the length of pre-existing cables or
  for establishing connections between solar
  panels in a series configuration. In-line
  couplers are offered in a range of dimensions
  and are engineered to establish a reliable and
  impervious connection.
• Fuse Couplers
• Fuse couplers are designed to include fuse safety
  within the coupling process. The primary purpose
  of its design is to safeguard solar panels and
  other system components by mitigating the risks
  associated with overcurrent and short-circuit
  problems. Fuse couplers play a pivotal role as an
  essential safety component inside solar panel
  systems, particularly in regions susceptible to
  electrical storms.
• Parallel Couplers
• Parallel couplers are a type of device employed
  to merge the electrical output of many strings
  of solar panels that are connected in parallel.
  These connectors provide the interconnection of
  strings with varying orientations or shading
  circumstances, hence enhancing the flexibility
  of solar panel array design.

4
connectors and T4 connectors are widely regarded
as highly favourable choices for home solar
installations due to their exceptional
reliability and compatibility. Amphenol H4
connections are often favoured for bigger
commercial or utility-scale projects owing to
their notable capability in managing high levels
of power. In order to ascertain the most
appropriate connectors for your unique
requirements, it is imperative to seek guidance
from a certified solar installer or expert like
Elmex Controls Pvt. Ltd., to know more please
visit their official website at
www.elmex.net. Final Thoughts Solar connectors
and couplers are integral components that
significantly impact the effectiveness and
security of a solar panel system. Gaining
knowledge about the various classifications and
their respective uses will enable individuals to
make well-informed choices during the process of
developing and implementing a solar power system.
The selection of appropriate Elmex connectors
and Elmex couplers manufactured and supplied by
Elmex Controls Pvt. Ltd. is crucial in maximising
the utilisation of solar energy and minimising
environmental impact, whether one is engaged in a
do-it-yourself solar project or collaborating
with industry experts.
