Title: What is the VFD Panel

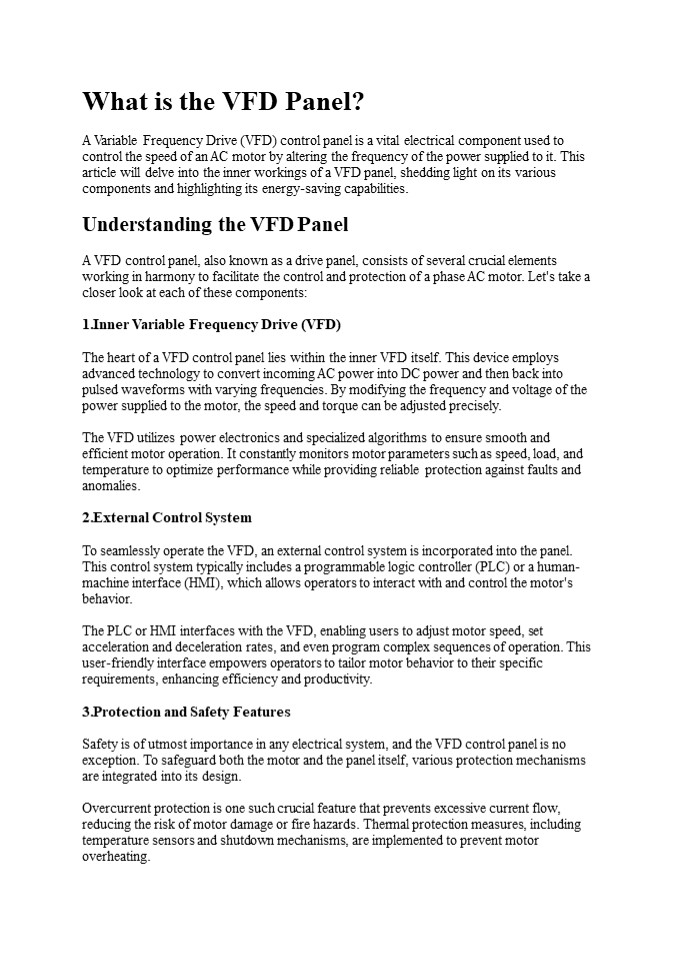

1
  • What is the VFD Panel?
  • A Variable Frequency Drive (VFD) control panel is
    a vital electrical component used to control the
    speed of an AC motor by altering the frequency of
    the power supplied to it. This article will delve
    into the inner workings of a VFD panel, shedding
    light on its various components and highlighting
    its energy-saving capabilities.
  • Understanding the VFD Panel
  • A VFD control panel, also known as a drive panel,
    consists of several crucial elements working in
    harmony to facilitate the control and protection
    of a phase AC motor. Let's take a closer look at
    each of these components
  • Inner Variable Frequency Drive (VFD)
  • The heart of a VFD control panel lies within the
    inner VFD itself. This device employs advanced
    technology to convert incoming AC power into DC
    power and then back into pulsed waveforms with
    varying frequencies. By modifying the frequency
    and voltage of the power supplied to the motor,
    the speed and torque can be adjusted precisely.
  • The VFD utilizes power electronics and
    specialized algorithms to ensure smooth and
    efficient motor operation. It constantly monitors
    motor parameters such as speed, load, and
    temperature to optimize performance while
    providing reliable protection against faults and
    anomalies.
  • External Control System
  • To seamlessly operate the VFD, an external
    control system is incorporated into the panel.
    This control system typically includes a
    programmable logic controller (PLC) or a human-
    machine interface (HMI), which allows operators
    to interact with and control the motor's
    behavior.
  • The PLC or HMI interfaces with the VFD, enabling
    users to adjust motor speed, set acceleration and
    deceleration rates, and even program complex
    sequences of operation. This user-friendly
    interface empowers operators to tailor motor
    behavior to their specific requirements,
    enhancing efficiency and productivity.
  • Protection and Safety Features

2
In addition to these protections, the VFD panel
often incorporates fault diagnostics and alarming
capabilities, providing early warnings of
potential issues such as short circuits or ground
faults. By promptly alerting operators, these
features allow for swift action to mitigate risks
and prevent costly downtime. 4. Display and
Monitoring Comprehensive display and monitoring
functionalities are essential for operators to
gain real- time insights into the motor's
performance. The VFD control panel typically
features an intuitive graphical display that
presents crucial parameters such as motor speed,
current, and voltage. Electrical Panel
Manufacturers can monitor these metrics and
identify any irregularities or trends that may
require adjustment or maintenance. The display
may also provide diagnostic information, aiding
in troubleshooting and reducing downtime. Energy
Efficiency Benefits The incorporation of a VFD
control panel into AC motor systems holds
tremendous potential for energy savings. By
modulating the motor speed, the VFD eliminates
the need for wasteful mechanical speed reduction
methods, such as throttle valves or dampers. This
ensures that the motor operates at the optimal
speed required to meet the load demand,
effectively reducing energy consumption. Furtherm
ore, the VFD's ability to control acceleration
and deceleration rates minimizes power spikes
during startup or sudden load changes, preventing
unnecessary power wastage. With precise control
over motor speed, the VFD ensures that the motor
operates within its most efficient range,
maximizing energy efficiency and reducing
operating costs. In conclusion, a VFD panel
combines the power of advanced technology and
smart control to enable efficient and precise
control of AC motors. With its internal VFD,
external control system, protection features, and
comprehensive monitoring capabilities, it
provides unparalleled control and safety. By
employing a VFD control panel, industries can
harness the energy-saving benefits of variable
speed operation, optimizing motor performance
while reducing environmental impact and operating
costs. Embracing this technology is a step
towards a greener and more sustainable future.
