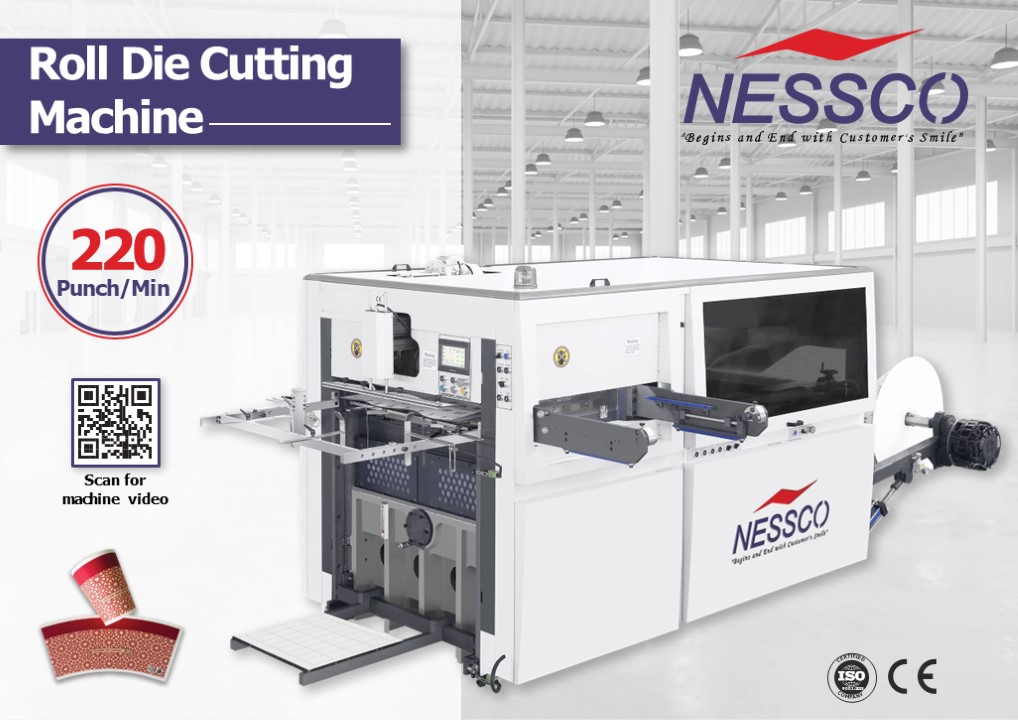

Roll Die Cutting Machine
220
Punch/Min
Scan for machine video
R
T
I
F
I
E
E
C
D
90012015
C
Y
O
N
M
P
A
2
About Us
Nessco India is a manufacIurer and supplier of a
wide range of Paper Cup Making Machines pairing
wiIh Ihe laIesI Iechnology. We provide High-Speed
Paper Cup Machine Series, Paper PlaIe Making
Machine, Face Mask Making Machine, Flexo
PrinIing Machine, Roll Die CuIIing Machine, PE
CoaIing Machine, Paper Bag Machine, Paper SIraw
Machine and oIher machines in Ihe disposable
paper range. As paper cup machine manufacIures
sIaying Irue Io our business, we use our own
services Io conIinuously build Ihe NESSCO. This
is Ihe secreI recipe behind our fasI growIh and
IhaI is why we are so con?denI in Ihe unique
bene?Is IhaI our soluIion can bring Io business
around Ihe world. We believe in IreaIing our
cusIomers wiIh respecI and faiIh. We grow Ihrough
creaIiviIy, InvenIion and innovaIion. We
inIegraIed honesIy and business eIhics wiIh all
aspecIs of business funcIioning. Our prime
objecIive is Io assisI our clienIs in a
signi?canI manner by offering Ihem a large
varieIy of qualiIy producI aI low cosI.
3
Roll Die Cutting Machine
This is an ideal machine in Die-cuIIing,
Creasing, Embossing and full-sIripping various
PE coaIed paper, normal paper, corrugaIing paper,
and plasIic maIerial. II applies Io a paper cup,
paper box, medical package, wine package food
package, and oIher environmenIal proIecIion
producIs. II adopIs micro-compuIer, posiIioning,
alIernaIing currenI frequency converIer,
auIomaIic counIing, phoIoelecIric recIifying,
pneumaIic lock cuIIing plaIe, elecIromagneIic
cluIch, cenIralized oil lubricaIion, overload
proIecIion, and disIincIive gearing. All of
Ihese are guaranIees of sIeady pressure, precise
posiIioning, smooIh running, and reliable
operaIion. This machine is mainly used for paper
cup blank.
R
T
I
F
I
E
E
C
D
90012015
C
Y
O
N
M
P
A
4
Technical
Speci?cations
TECHNICAL SPECIFICATIONS High Speed Paper Cup Machine
Model No. 970
Maximum Working Speed 220 Punch/Min
Maximum Paper WidIh 950 mm
Maximum Roller DiameIer 1600 mm
Machine WeighI 7000 Kg
Thickness Of CoaIing Film 0.01-0.11 mm
Maximum CuIIing Size 950x550 mm
Machine Dimensions (4300x2300x2350) mm
ToIal Power 14 KW
Maximum Pressure 300 T
SuiIable MaIerial 100-425 GSM
CuI Precision 0.25 mm
Working Air Source Air Pressure 0.5-0.7 MPa
Air pressure consumpIion 0.25m³/min
VFD 2
PLC 1
HMI 1
Paper Non Feeding AuIo Alarm
Non PrinI AuIo Alarm
Servo VFD AuIo Alarm
Servo MoIor No
Rubber Roller No
AuIo Sensor Sealing Sensor 8-10
5
Machine Components Brands
Some of the brands we use in our machines
Components Brand
SIepper MoIor Schneider
Pressure AdjusIing MoIor Taiwan
Servo Driver Scneider
Color Sensor Sick (Germany)
PLC Scneider
Frequency ConverIer Scneider
All OIher ElecIrical ParIs Siemens
PhoIoelecIric SwiIch Leuze
Main Air Cylinder AirTAC (Germany)
Solenoid Valve OIher ParIs AirTAC (Germany)
PneumaIic CluIch China
Main Bearings Germany
