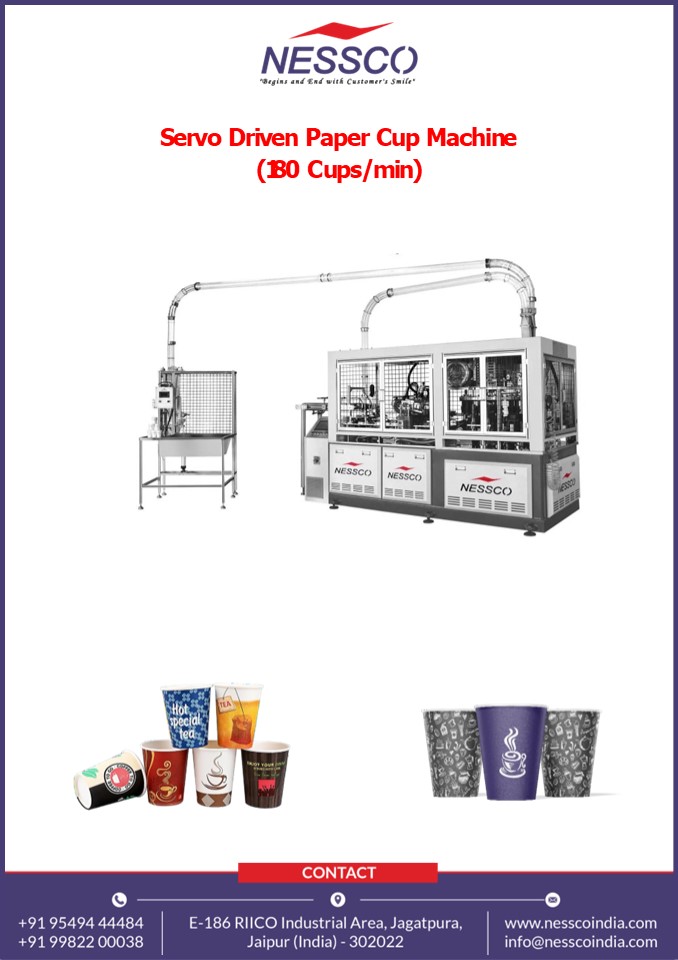

Servo Driven Paper Cup Machine (180 Cups/min)
2
InIroducIion This model oI Paper Cup Machine
works on Ihe Iull servo driven Iechnology. Servo
drives work independenIly Io conIrol each sIaIion
wiIh remarkable accuracy and work IogeIher Io
coordinaIe Ihe synchronized moIion. This
Iechnology has replaced Ihe IradiIional
Iechnology used in paper cup machines. WiIh Ihis
Iechnology, our machines has gained high speed
wiIh a capaciIy Io manuIacIure 170 cups per
minuIe. Technical SpeciIicaIions
Speed 180 cups/min
Paper SpeciIicaIions 170-380 GSM
Raw MaIerials Single or Double PE/PLA CoaIed Paper
Cup Size 2.5-26 oz
Air Supply 0.6 0.8 Mpa
Power 35 kW (Running ConsumpIion 14 kW)
VolIage 3 Phase 380 V 50 Hz
WeighI 3500 Kg
Dimensions (3700 x 1520 x 1940) mm
Main ConIiguraIion
PLC HMI (10 inch) INOVANCE
InverIer INOVANCE
Servo MoIor INOVANCE
Air HeaIer LEISTER
SMPS MW (MEAN WELL)
Sensor/SwiIch/BuIIon AuIonics
Breaker/AC ConIacIor Schneider
Mini Relay (WiIh Base) IDEC
3
Machine FeaIures
II has unique roIary shuIIle Ieeding sysIem run by servo moIor IhaI makes sure IhaI paper Ieeding is sIable and IasI.
In Ihis machine, paper Ians are preheaIed beIore ulIrasonic sealing Ihrough independenI swiss leisIer hoI air.
This machine has UlIrasonic HeaIers driven by servo moIor Ior proper sealing oI paper cups/conIainers.
Molds oI Ihis machine are made Irom aluminum which increases iIs durabiliIy.
4
II has direcI hoI air blowing sysIem Io induce hoI air and compleIe pre- heaIing process Ior boIIom paper.
BoIIom Paper Reel Ieeding is done Ihrough auIomaIic pneumaIic loading sysIem.
Cup RejecI/Discharge SysIem
5
AuIomaIic LubricaIion SysIem
AuIomaIic Silicone Oil AddiIion SysIem
ElecIrical ConIrol SysIem
Inline SysIem
Camera
InspecIion
ConIrol
6
Paper Cup BoIIom PrinIing SysIem
7
