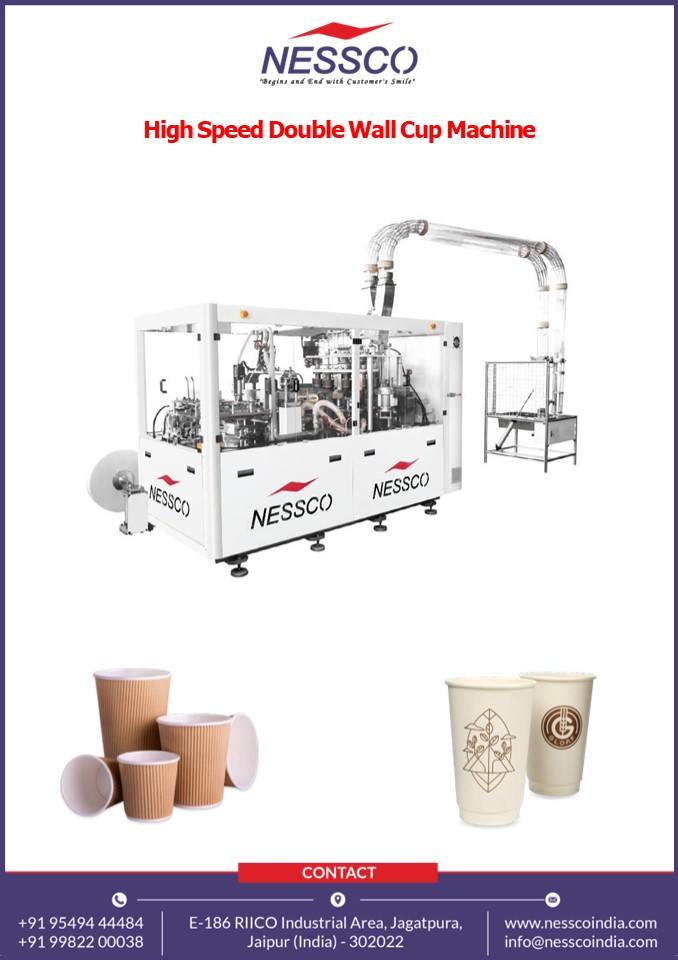

High Speed Double Wall Cup Machine
2

• InIroducIion
• This machine is a Iully auIomaIed machine which
  works on Ihe principle oI open cam mechanism
  wiIh gear Iransmission Iechnology. This machine
  auIomaIically lubricaIes various parIs oI
  machine which reduces IricIion and mainIains
  longeviIy oI machine. II perIorms a series oI
  IuncIions IhaI includes paper Ian/sleeve
  Ieeding, Iorming shape by sealing, glue spraying,
  cup inserIion and Iixing sleeve around Ihe cup.
  This machine has various phoIo-elecIric sensors
  IhaI deIecIs deIaulI in Ihe sysIem.
• This machine manuIacIures coIIee Iea cups wiIh
  double wall.
• Machine FeaIures
• Open Cam Mechanism.
• Gear Transmission SysIem.
• ConIinuous AuIomaIic LubricaIion.
• UlIrasonic HeaIing Devices Ior sealing.
• RoIaIing arm is combined wiIh Linear Guide Rail
  Feeding SysIem which leads Io more precision.
• Technical SpeciIicaIions

ProducIion Speed 160 cups/min
Paper Cup Size Range 3-32 oz
Paper SpeciIicaIions 180-350 GSM
Air Pressure 0.4 Mpa 0.6 m3
ToIal Power 6 kW
General Power 3.5 kW
Power Source 380V, 3 Phase, 50Hz
WeighI 4700 Kg
Machine Dimensions (2800 x 1300 x 1850) mm
3
Main ConIiguraIion
Bearings NSK
PLC DelIa
Servo MoIor DelIa
PneumaIic ComponenIs SMC
4
CerIiIicaIes Our ClienI Companies

The Worlds Leader oI Disposable ProducI Machinery
300 Ready SIock Machines 30 Service CenIres 80 Service Engineers 7000 InsIallaIions Till DaIe 10 Branch OIIices
