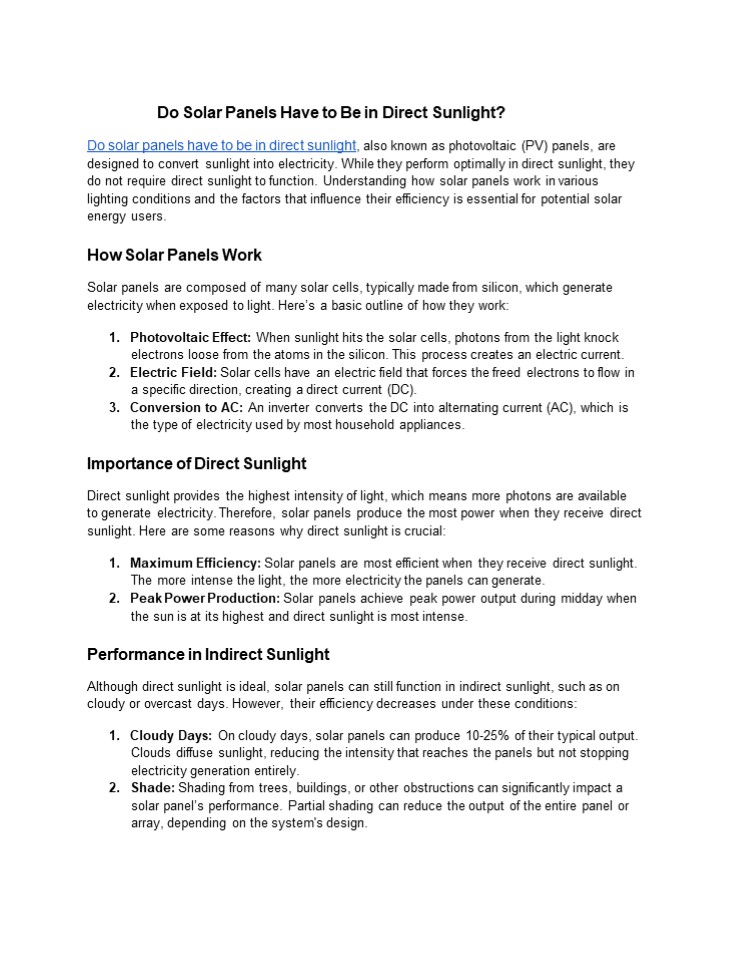

Title: do solar panels have to be in direct sunlight


1
  • Do Solar Panels Have to Be in Direct Sunlight?
  • Do solar panels have to be in direct sunlight,
    also known as photovoltaic (PV) panels, are
    designed to convert sunlight into electricity.
    While they perform optimally in direct sunlight,
    they do not require direct sunlight to function.
    Understanding how solar panels work in various
    lighting conditions and the factors that
    influence their efficiency is essential for
    potential solar energy users.
  • How Solar Panels Work
  • Solar panels are composed of many solar cells,
    typically made from silicon, which generate
    electricity when exposed to light. Heres a basic
    outline of how they work
  • Photovoltaic Effect When sunlight hits the solar
    cells, photons from the light knock electrons
    loose from the atoms in the silicon. This process
    creates an electric current.
  • Electric Field Solar cells have an electric
    field that forces the freed electrons to flow in
    a specific direction, creating a direct current
    (DC).
  • Conversion to AC An inverter converts the DC
    into alternating current (AC), which is the type
    of electricity used by most household appliances.
  • Importance of Direct Sunlight
  • Direct sunlight provides the highest intensity of
    light, which means more photons are available to
    generate electricity. Therefore, solar panels
    produce the most power when they receive direct
    sunlight. Here are some reasons why direct
    sunlight is crucial
  • Maximum Efficiency Solar panels are most
    efficient when they receive direct sunlight. The
    more intense the light, the more electricity the
    panels can generate.
  • Peak Power Production Solar panels achieve peak
    power output during midday when the sun is at
    its highest and direct sunlight is most intense.
  • Performance in Indirect Sunlight
  • Although direct sunlight is ideal, solar panels
    can still function in indirect sunlight, such as
    on cloudy or overcast days. However, their
    efficiency decreases under these conditions
  • Cloudy Days On cloudy days, solar panels can
    produce 10-25 of their typical output. Clouds
    diffuse sunlight, reducing the intensity that
    reaches the panels but not stopping electricity
    generation entirely.
  • Shade Shading from trees, buildings, or other
    obstructions can significantly impact a solar
    panels performance. Partial shading can reduce
    the output of the entire panel or array,
    depending on the system's design.

2
  • Reflection and Diffusion Even in shaded or
    cloudy conditions, some light is reflected or
    diffused onto the panels. While less effective
    than direct sunlight, this still allows for some
    electricity production.
  • Factors Influencing Solar Panel Efficiency
  • Several factors affect how well solar panels
    perform in less-than-ideal lighting conditions
  • Panel Quality Higher quality panels are
    generally more efficient and can perform better
    in low-light conditions. Monocrystalline panels,
    for example, tend to be more efficient than
    polycrystalline or thin-film panels.
  • System Design Proper system design, including
    the placement and orientation of the panels, can
    mitigate the effects of shading and indirect
    sunlight. Panels should be positioned to receive
    the maximum possible direct sunlight throughout
    the day.
  • Inverter Technology Advanced inverters, such as
    microinverters or power optimizers, can help
    improve system performance in shaded conditions
    by optimizing the output of each panel
    individually.
  • Practical Considerations
  • Location Geographic location plays a crucial
    role in solar panel efficiency. Areas with more
    sunny days will benefit more from solar panels,
    but even regions with frequent overcast weather
    can effectively use solar energy.
  • Maintenance Keeping panels clean and free from
    obstructions like dust, dirt, or snow ensures
    they can capture as much light as possible,
    whether direct or indirect.
  • Energy Storage Battery storage systems can store
    excess energy generated during sunny periods for
    use during cloudy days or nighttime, ensuring a
    continuous power supply.
  • Conclusion
  • Solar panels do not have to be in direct sunlight
    to function, but direct sunlight maximizes their
    efficiency and power output. While they still
    generate electricity on cloudy or overcast days,
    their performance is reduced. Factors such as
    panel quality, system design, and inverter
    technology can influence how well solar panels
    perform in various lighting conditions.
    Ultimately, solar panels remain a viable and
    effective renewable energy source, even in areas
    with less frequent direct sunlight.
