How to Install V-Ray BY CADD Mastre

1

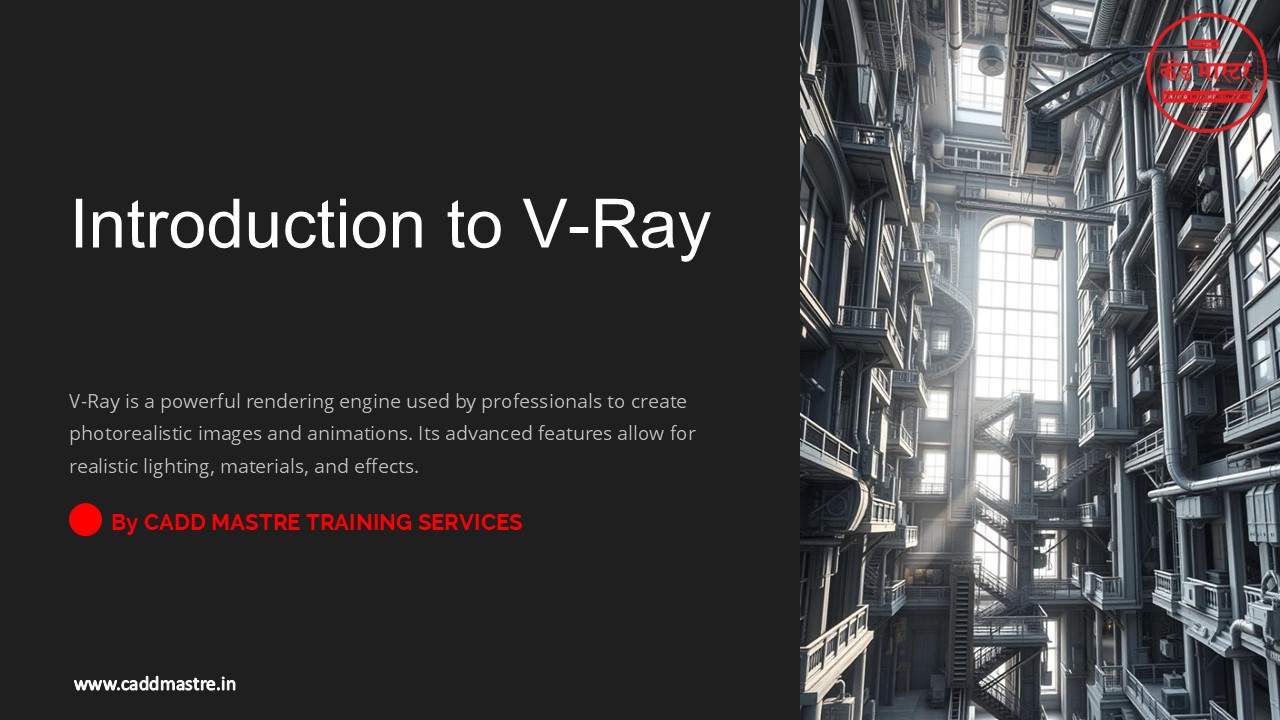

Introduction to V-Ray
V-Ray is a powerful rendering engine used by
professionals to create photorealistic images and
animations. Its advanced features allow for
realistic lighting, materials, and effects.
By CADD MASTRE TRAINING SERVICES
www.caddmastre.in
2
System Requirements for V-Ray
Processor
RAM
V-Ray requires a powerful processor, ideally a
multi-core CPU, for efficient rendering.
Sufficient RAM is crucial for handling large
scene files and complex renderings.
Graphics Card
Storage
A dedicated GPU, especially a high-end card, can
significantly accelerate rendering.
V-Ray requires ample storage space for storing
project files and render output.
www.caddmastre.in
3
Downloading and Installing V-Ray
Visit V-Ray Website
Navigate to the Chaos Group website and locate
the V-Ray download page.
Select Your Software
Choose the appropriate version of V-Ray
compatible with your 3D software.
Download Installer
Download the installer file and run it to begin
the installation process.
Follow Installation Steps
Follow the on-screen instructions to install
V-Ray on your computer.
www.caddmastre.in
4
Integrating V-Ray with 3D Software
Plugin Installation
Render Settings
1
2
Install the V-Ray plugin for your specific 3D
software, such as 3ds Max or Maya.
Access the V-Ray render settings in your 3D
software to configure rendering options.
Material Library
Render Output
3
4
Explore the V-Ray material library to access a
wide range of pre-built materials.
Configure the render output settings, such as
image format, resolution, and file path.
www.caddmastre.in
5
Understanding V-Ray Render Settings
Setting
Description
Render Engine
Select the V-Ray render engine for high-quality
rendering.
Image Size
Define the resolution of the rendered image.
Sampling Quality
Control the quality and accuracy of the rendered
image.
Output Options
Configure the image format, file path, and other
output settings.
www.caddmastre.in
6
Lighting and Materials in V-Ray
Lighting
Materials
Advanced Features
V-Ray offers a variety of lighting options,
including physical lights, HDRI environments, and
area lights.
V-Ray materials are highly customizable, allowing
for realistic representation of various surfaces.
V-Ray includes advanced features for creating
realistic effects, such as reflections,
refractions, and caustics.

1. Physical Lights

1. Diffuse

1. Reflections

1. HDRI Environments

1. Glossy

1. Refractions

1. Area Lights

1. Metallic

1. Caustics

1. Transparent

1. Subsurface Scattering

www.caddmastre.in
7
Rendering Techniques and Optimization
Render Passes
1
Render different elements separately, such as
color, depth, and normals, for post-processing
flexibility.
Render Elements
2
Utilize V-Ray's render elements to create various
visual effects and compositions.
Render Optimization
3
Optimize render settings and scene geometry to
reduce render times and improve performance.
Render Farms
4
Leverage render farms to distribute rendering
tasks across multiple computers, accelerating the
process.
www.caddmastre.in
8
Conclusion and Resources
Online Documentation
Consult the official V-Ray documentation for
comprehensive information and tutorials.
Online Forums
Engage with the V-Ray community to ask questions,
share knowledge, and learn from others.
Tutorials and Courses
Explore online tutorials and courses to expand
your skills and master V-Ray rendering techniques.
www.caddmastre.in
