Flow Batteries: An Analysis of Energy Storage Solutions

1

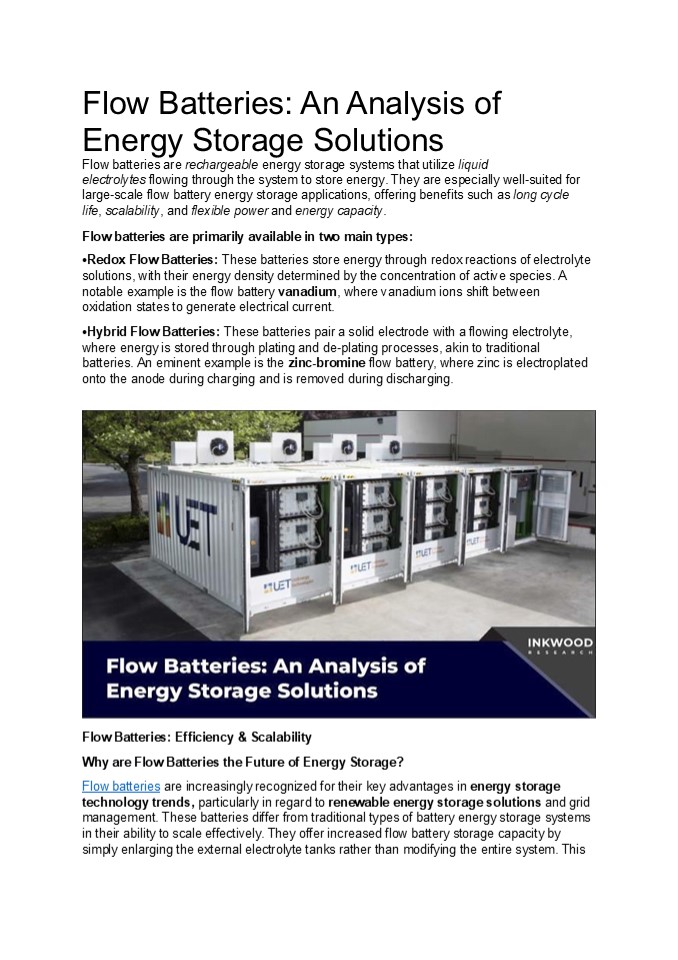

• Flow Batteries An Analysis of Energy Storage
  Solutions
• Flow batteries are rechargeable energy storage
  systems that utilize liquid
• electrolytes flowing through the system to store
  energy. They are especially well-suited for
  large-scale flow battery energy storage
  applications, offering benefits such as long
  cycle life, scalability, and flexible power and
  energy capacity.
• Flow batteries are primarily available in two
  main types
• Redox Flow Batteries These batteries store
  energy through redox reactions of electrolyte
  solutions, with their energy density determined
  by the concentration of active species. A notable
  example is the flow battery vanadium, where
  vanadium ions shift between oxidation states to
  generate electrical current.
• Hybrid Flow Batteries These batteries pair a
  solid electrode with a flowing electrolyte, where
  energy is stored through plating and de-plating
  processes, akin to traditional batteries. An
  eminent example is the zinc-bromine flow battery,
  where zinc is electroplated onto the anode during
  charging and is removed during discharging.

Flow Batteries Efficiency Scalability Why are
Flow Batteries the Future of Energy Storage? Flow
batteries are increasingly recognized for their
key advantages in energy storage technology
trends, particularly in regard to renewable
energy storage solutions and grid management.
These batteries differ from traditional types of
battery energy storage systems in their ability
to scale effectively. They offer increased flow
battery storage capacity by simply enlarging the
external electrolyte tanks rather than modifying
the entire system. This
2
scalability is further crucial for utilities, as
it allows them to meet varying energy demands
without the need to invest in multiple, larger
battery systems. Flow batteries possess an
impressive lifespan, capable of lasting up to 30
years with minimal degradation. This longevity
represents a significant advantage over flow
batteries vs lithium-ion systems, which last
about 10 years before substantial performance
declines. Furthermore, the extended lifetime of
flow batteries can lead to reduced costs and less
frequent replacements, making them a more
sustainable option for long-duration energy
storage solutions. Safety is another compelling
attribute of flow batteries. These batteries
employ non- flammable electrolytes, reducing the
risks associated with flow battery storage,
particularly in a grid environment where safety
is paramount. Flow batteries also have a
favorable environmental influence, as many of the
materials can be reused or recycled, supporting a
more sustainable energy ecosystem. How are New
Developments Influencing Flow Battery
Competitiveness? Recent advancements in flow
battery technology are enhancing their
efficiency, cost- effectiveness, and reliability,
which is crucial for their adoption in the future
of energy storage market. Innovations like the
use of more abundant and affordable materials,
such as iron and organic compounds, are being
explored to reduce dependence on costly and less
sustainable substances like vanadium. These
advancements further aim to reduce the initial
investment needed for installing flow battery
systems. This could enhance their competitiveness
compared to established technologies, such as
flow batteries vs lithium-ion. Currently, many
commercial flow batteries utilize
vanadium-saturated electrolytesoften a mix of
vanadium sulfate and sulfuric acid due to
vanadiums high energy density and long
lifespan. In essence, Invinity Energy Systems, a
leading provider of vanadium flow batteries, has
over 275 units in operation. These batteries,
housed in portable shipping containers, are
particularly suited for providing 10 to 36 hours
of energy storage, especially when integrated
with wind power, potentially lowering costs by
2530 compared to lithium-ion systems. By 2030,
flow batteries are expected to store 61 MWh
annually, generating over 22 billion in sales,
highlighting the flow battery market growth
potential. Furthermore, ongoing research has led
to breakthroughs that enhance the efficiency and
performance of flow batteries. Examples include
the use of additives to improve electrolyte
stability and increase charge-discharge rates,
enabling longer operational periods and allowing
these batteries to compete more effectively in
both residential and commercial energy markets.
With this trajectory, flow batteries are inclined
to play a pivotal role in the transition to a
sustainable grid, especially in applications
requiring long-duration energy storage, such as
wind and solar power. Flow Battery Enhancements
From Additives to New Materials What Improvements
are Boosting Flow Battery Performance? Recent
flow battery technology advancements have
improved efficiency and performance, making these
systems more suitable for large-scale energy
storage. Notably, the use of simple additives
like ß-cyclodextrin has optimized electrolyte
kinetics, enhancing charge and
discharge rates and increasing flow battery
energy density while extending battery lifespan.
3
Additionally, advancements in membrane technology
have also contributed to the development of
high-efficiency flow batteries. Innovations in
ion-selective membranes are reducing the
crossover of active species, which leads to
improved efficiency in energy storage and
retrieval. This reduction in energy loss is
crucial for maximizing the operational
effectiveness of flow batteries in real-world
applications. The development of new flow battery
materials also plays a key role in this regard.
Researchers are exploring cheaper and more
abundant alternatives to traditional vanadium-
based systems, such as iron and organic
compounds. These alternatives offer
cost-effective solutions and reduce dependence on
scarce resources. Together, these advancements
are positioning next-generation flow batteries as
ideal for long-duration energy storage, meeting
the growing demand for reliable energy systems in
the context of increasing renewable energy
integration. What are the Benefits of Using Iron
Organic Materials in Flow Batteries? Breakthroug
hs in materials and flow battery design
innovation are transforming their applications
across various sectors. The shift from
traditional vanadium-based systems to iron and
organic materials enhances both
cost-effectiveness and sustainability. These new
materials reduce operational costs and
environmental impacts by using more abundant and
less toxic components. Recent advances in battery
design are also optimizing flow battery
performance. Innovations such as separating
electrolytes into external tanks allow for
independent scaling of power and energy
capacities. This improves versatility, enabling
flow batteries to be customized for different
applications, from large utility-scale plants to
smaller microgrid setups. Moreover, flow
batteries now provide extended energy delivery,
often up to 10 hours. As a result, this makes
them well-suited for balancing intermittent
renewable energy sources like wind and solar
power, which is crucial for stabilizing power
grids as renewable generation increases. Flow
Battery Evolution Eco-Friendly Materials
Economic Benefits New flow battery technologies
are increasingly focused on utilizing sustainable
energy storage materials, such as iron and
organic compounds. These alternatives aim to
replace traditional materials like vanadium,
which pose environmental challenges due to their
mining processes and toxicity. These newer
materials reduce the carbon footprint of energy
storage, increase resource availability and
decrease reliance on scarce elements. The
recyclability of components in flow batteries
enhances their environmental benefits of flow
batteries. Advanced flow battery systems often
incorporate strategies that promote closed-loop
recycling processes, helping to minimize waste
and reduce the need for new raw materials. This
approach ensures that materials are reused
effectively throughout the batterys lifecycle,
leading to less environmental impact overall. In
addition, flow batteries can reduce carbon
emissions when integrated with renewable energy
sources. For instance, as per a study by Texas
AM University, operational vanadium flow
batteries, when combined with wind sources, are
expected to save around 2.13 million metric tons
of CO2 over their operational lifespan. This
reduction in emissions is equivalent to the
carbon savings of approximately 2.6 million
acres of US forests in one year.
4
Moreover, research and development in flow
battery technology are also aimed at improving
life cycle assessments. This provides a clearer
understanding of the environmental impacts
throughout the entire lifespan of the batteries,
from resource extraction to end-of-life disposal.
Hence, these innovations signify a strong move
towards eco-friendly battery technology and
sustainable energy storage solutions. How do
Advanced Flow Battery Systems Drive Economic
Benefits? The adoption of advanced flow battery
systems is driving considerable economic
benefits. One of the key advantages is cost
savings. Research from Strathclydes Energy for
Development group indicates that flow batteries
can reduce costs by 20 to 50 compared to
traditional lithium-ion and lead-acid batteries
in microgrid applications. This economic impact
of flow batteries arises from their extended
operational life and lower maintenance needs,
offering a better return on investment over
time. Additionally, developing local supply
chains for flow battery production can stimulate
job creation and boost economic activity within
communities. By utilizing locally sourced
materials and establishing manufacturing
positions, these economic benefits extend across
various sectors, enhancing local economies in the
process. Therefore, investments in flow battery
technologies support a sustainable energy future
while aligning with broader economic goals. These
investments help meet energy storage needs and
contribute to energy independence and resilience
against market fluctuations tied to fossil
fuels. Flow Battery Market Expansion Key Regions
Strategic Drivers Flow battery technologies are
experiencing notable growth across various
regions, reflecting an increasing recognition of
their potential for energy storage solutions. In
parallel, flow battery adoption in Europe is
projected to grow due to advancements in
technology, primarily focusing on renewable
energy grid integration and long-duration energy
storage applications to support renewable power
systems. Major players such as VRB Energy and
RedFlow Ltd are actively involved in developing
these new technologies to meet the growing energy
demands in the region. Flow batteries in North
America are gaining traction as well,
particularly in utility applications. Key players
such as Sumitomo Electric Industries and ViZn
Energy Systems are focusing on integrating flow
batteries with renewable energy sources,
facilitating a transition towards sustainable
energy systems. The Asia-Pacific energy storage
is further witnessing the fastest growth rate in
flow battery technologies, largely driven by
hefty investments and innovative initiatives in
renewable energy projects. Countries such as
China and Japan are at the forefront of deploying
flow battery systems, enabling extensive
applications in electric vehicle charging and
grid infrastructure. How are Key Initiatives
Shaping Flow Battery Growth Globally? Several
strategic initiatives are propelling the adoption
of flow batteries in Europe, North America, and
Asia-Pacific. In Europe, government-backed
projects aimed at renewable energy grid
integration and grid stability are creating a
conducive environment for the growth of flow
battery technologies. Enhanced funding for energy
storage solutions has been pivotal in motivating
companies to invest in flow battery research and
development, aligning with
regional energy storage trends.
5
In North America, initiatives surrounding
electric grid modernization and resilience have
driven the demand for flow batteries. The focus
on enhancing grid infrastructure alongside
favorable government policies has encouraged
utilities to explore flow battery technology as a
cost-effective energy storage solution.
Additionally, various incentives and subsidies
for integrating renewable energy sources into
existing electrical grids promote the deployment
of flow battery systems. In Asia-Pacific,
national policies aimed at boosting renewable
energy capacities play a significant role in the
growing adoption of flow batteries. For instance,
Chinas recent five- year plan mandates the
incorporation of energy storage solutions, such
as flow batteries, into solar and wind energy
projects. Coupled with local government
initiatives to support infrastructure
development, this regional focus on sustainable
energy transition is expected to further enhance
the presence of flow battery technologies across
various sectors. Regional Breakthroughs in Flow
Battery Systems Significant advancements in flow
battery technologies are being made across
Europe, North America, and Asia-Pacific,
highlighting the growing importance of these
systems in renewable energy integration and grid
stability. In Europe, notable projects are
driving the progress of flow batteries. For
example, the Vanadium Flow Battery project in
Germany includes the establishment of a new
electrolyte plant aimed at enhancing local
production capabilities and supporting renewable
energy integration. The United Kingdom is also
seeing significant developments, such as Largo
Clean Energys deployment of a 6.1 MWh Vanadium
Redox Flow battery in Mallorca, Spain, which
enhances energy storage for solar
power. Additionally, Volterion has introduced an
innovative flow battery stack design that
eliminates the need for leak-prone seals and
heavy steel endplates. The Nordic region has seen
its first agricultural flow battery installed in
Norway, aimed at boosting self-produced
electricity and supporting farm
electrification. In North America, flow battery
projects are gaining momentum as part of the
shift toward renewable energy sources.
California, in particular, is making strides with
large-scale installations like Calpines Nova
Power Bank near Los Angeles. This billion-dollar
facility, set to become one of the worlds
largest, will provide power to approximately
680,000 homes for up to four hours, enhancing
grid stability during peak demand periods.
Californias energy storage boom reflects the
states commitment to meeting its 2045
carbon-free energy goals and underscores the
critical role of energy storage in supporting
renewable energy growth. The Asia-Pacific is also
witnessing rapid progress in flow battery
technology. In China, the Dalian flow battery
energy storage peak-shaving power station, with
an initial capacity of 400 MWh, is expected to
supply power to around 200,000 residents while
aiding in the integration of renewable energy
sources. Meanwhile, Japan energy storage
solutions are being advanced by companies like
Sumitomo Electric, which is actively deploying
utility- scale flow battery installations. These
efforts are enhancing grid control and providing
solutions for renewable generation
smoothing. Flow Batteries Future Trends
Policies Recent advancements in flow battery
technology highlight several promising trends.
Material innovations are focusing on alternatives
to vanadium, such as iron and organic compounds.
The future of flow battery technology is
promising, as these alternatives are more cost-
6
effective and more widely available. This
advancement paves the way for more sustainable
and affordable energy storage solutions,
enhancing the viability of flow batteries in
large- scale energy applications. Another
emerging flow battery trend is the optimization
of battery design. Innovations aimed at improving
electrolyte stability and increasing energy
density are set to enhance the performance of
flow batteries in practical applications. Further,
the exploration of hybrid systems that combine
different battery chemistries is gaining
traction. These hybrid models can capitalize on
the strengths of multiple technologies,
potentially leading to enhanced efficiency and
effectiveness in next-gen energy storage
systems. The utilization of techno-economic
modeling is emerging as a prominent research
direction, allowing engineers and researchers to
evaluate the long-term economic viability of
various flow battery technologies. Consequently,
this approach is becoming a critical part of flow
battery industry practices, guiding investments,
and optimizing workflows within the sector. How
are Various Policies Influencing Flow Battery
Technology? Evolving policies and policy impact
on energy storage are crucial in shaping the
development and deployment of flow
batteries. Government Initiatives The US
Department of Energy (DOE) has been actively
involved in understanding and enabling
innovations in long-duration energy storage
(LDES), including flow batteries. Their strategic
initiative, Storage Innovations 2030, aims
to achieve 90 cost reductions for technologies
providing 10 hours or more of energy storage.
Similarly, the European Union (EU) emphasizes
investment in flow battery technologies
to enhance grid integration of renewables and
contribute to decarbonization goals. Advantages
of Flow Batteries Flow batteries offer several
advantages for long-duration energy storage
(LDES) applications. They are scalable, have a
longer cycle life, and can be charged and
discharged independently. These features make
them suitable for grid-level energy storage,
especially in conjunction with renewable energy
sources, aligning with the future of flow battery
technology. While lithium-ion batteries dominate
the market, flow batteries are gaining attention
due to their potential for large-scale,
long-duration storage. Industry trends also
indicate increased interest in flow battery
research, development, and commercialization over
the upcoming years. Image Source
https//images.app.goo.gl/js8vAx6DTUwx79jc6
