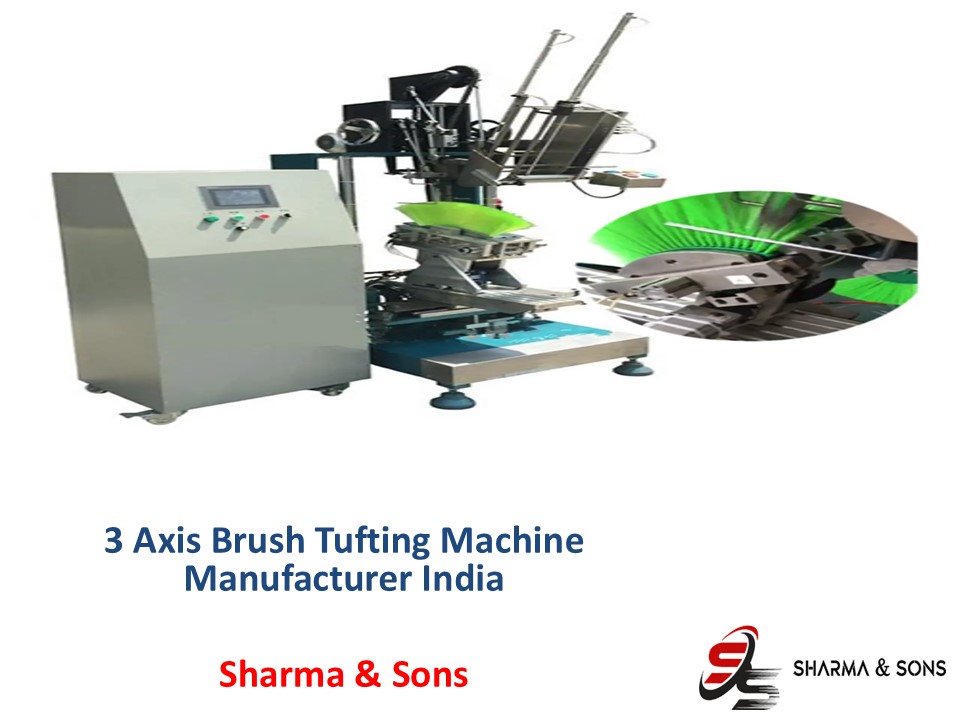

3 Axis Brush Tufting Machine Manufacturer India

1

• 3 Axis Brush Tufting Machine Manufacturer India
• Sharma Sons

2
About Us

• A 3-axis brush tufting machine is a specialized
  industrial equipment that manufactures brushes
  for cleaning, painting, and other uses that
  require bristles to be securely connected to a
  base material. The machine employs a technique
  known as "tufting," in which bristles (or
  filaments) are placed into holes on a backing
  material, such as a brush head or strip, and then
  held in place, typically using adhesive or
  mechanical fixing.
• The 3-axis refers to the machine's ability to
  move and position the tufting components along
  three different axes

3

• X-axis Typically, this is the horizontal axis
  that allows for side-to-side movement, moving the
  tufting head or needle along the width of the
  material.
• Y-axis The vertical axis, allowing movement up
  and down, which controls the positioning of the
  tufting needles or tools relative to the brush
  base.
• Z-axis This is usually a depth axis, allowing
  movement into and out of the material,
  controlling the insertion of the bristles into
  the holes in the backing.
• These three axes give the machine the ability to
  perform precise and complex tufting patterns,
  placing bristles at specific intervals,
  orientations, and depths, making it highly
  versatile for creating brushes of different
  sizes, shapes, and configurations.

4

• Key Components of a 3-Axis Brush Tufting Machine
• Tufting Head Contains the needles or tools used
  to insert bristles into the backing material.
• Needles or Pins These are used to push the
  bristles through the holes in the backing
  material.
• Backing Material Usually a base material that
  the bristles are inserted into, which could be
  made from various materials such as plastic,
  wood, or metal.
• Control Panel The system that allows operators
  to input tufting parameters such as bristle
  density, pattern, and length. In modern machines,
  this may be automated with a computerized system.

5
Our Products
1.Single Hockey Cleaning Brush Tufting Machine?
6

• A Single Hockey Cleaning Brush Tufting Machine is
  a specialized piece of equipment used to produce
  hockey cleaning brushes that are intended to
  clean the TOILET. These devices are designed to
  automate the process of producing brush tufts,
  which are required for effective cleaning.

7

• 2. Curve Cleaning Brush Tufting Machine?

8

• The company features two- and five-axis equipment
  with high-speed production capabilities. These
  include toilet brushes double hockey, single
  hockey washing brushes, Goby and Zala
  toothbrushes, toothbrush heads, short filament
  brushes, brooms, disc brushes, roller brushes,
  and a variety of industrial brushes.

9

• 3. 3 Axis Jala Brush Making Machine

10

• The company features two- and five-axis equipment
  with high-speed production capabilities. These
  include toilet brushes double hockey, single
  hockey washing brushes, Goby and Zala
  toothbrushes, toothbrush heads, short filament
  brushes, brooms, disc brushes, roller brushes,
  and a variety of industrial brushes.

11
Contact Us

• Mobile No 91 98370 30603
• Email Id sharmasons.agra_at_gmail.com
• Address B-329 B Block Shastripuram Yojna
  Sikandra, Agra.
• Working Hours Monday To Saturday 900 AM TO
  900 PM
• Website https//brush-solution.com/
• Facebook https//www.facebook.com/SharmaSons.agra
  /
• Youtube https//www.youtube.com/_at_sharmasons
