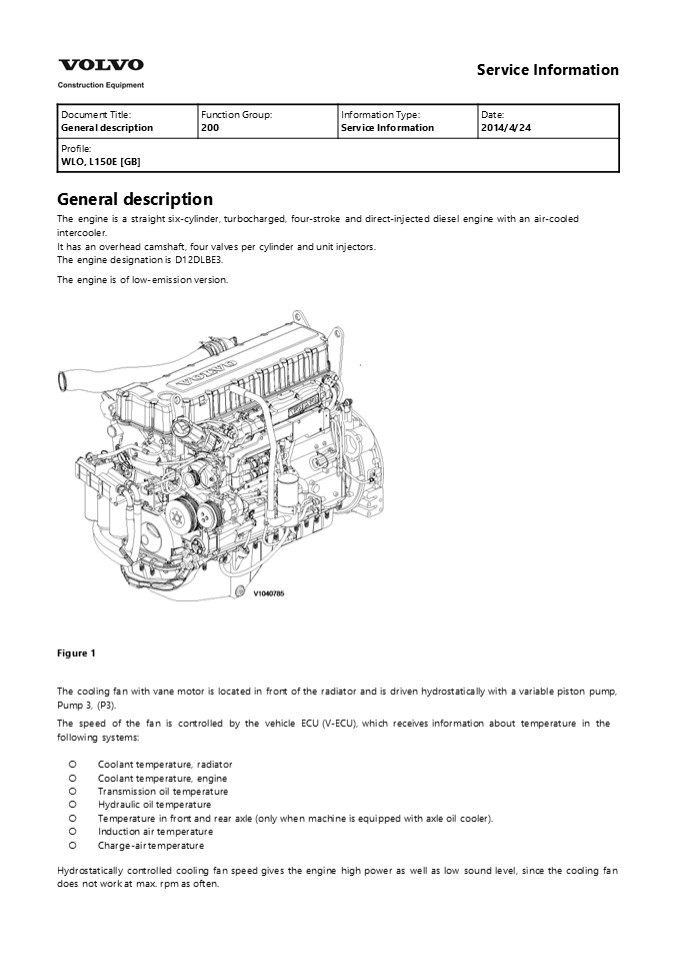

Service Information
Document Title General description Function Group 200 Information Type Service Information Date 2014/4/24
Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB
General description The engine is a straight
six-cylinder, turbocharged, four-stroke and
direct-injected diesel engine with an air-cooled
intercooler. It has an overhead camshaft, four
valves per cylinder and unit injectors. The
engine designation is D12DLBE3. The engine is of
low-emission version.

• Figure 1
• The cooling fan with vane motor is located in
  front of the radiator and is driven
  hydrostatically with a variable piston pump,
  Pump 3, (P3).
• The speed of the fan is controlled by the vehicle
  ECU (V-ECU), which receives information about
  temperature in the following systems
• Coolant temperature, radiator
• Coolant temperature, engine
• Transmission oil temperature
• Hydraulic oil temperature
• Temperature in front and rear axle (only when
  machine is equipped with axle oil cooler).
• Induction air temperature
• Charge-air temperature
• Hydrostatically controlled cooling fan speed
  gives the engine high power as well as low sound
  level, since the cooling fan does not work at
  max. rpm as often.

2
The cooling system is based on a concept where
cooling for engine, transmission, hydraulics and
axle oil cooling (optional equipment) are
integrated. These systems' cooling depends on the
cooling fan speed. Engine identification
Identification plate 1 Engine designation, serial
number, part number and assembly plant are
stamped in one field on the engine block's left
rear edge Identification plate 2 A decal with
the software's ID-number, the engine's serial
number and assembly plant is located on the valve
cover to ensure installation of correct ECU on
the engine in production. On the back of the ECU,
there is a decal indicating its hardware
number. Assembly plants A Skövde, Sweden E
Curitiba, Brazil F Flen, Sweden L Lyon,
France Identification plate 3 The certification
decal is located on the valve cover as well as on
the machine frame.
Figure 2 Engine identification, D12D
3
Service Information
Document Title Engine, description Function Group 200 Information Type Service Information Date 2014/4/24
Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB
Engine, description The engine type is D10B.
Engine type, product and serial number are
stamped on the cylinder block above the starter
motor (right-hand side of machine).
Figure 1 The engine is a straight six-cylinder,
direct-injected diesel with 9.6 litre cylinder
volume, turbocharger, intercooler and
electronically controlled fuel injection EMS
(Engine Management System). The valve mechanism
is operated by the camshaft via push rods and
rocker arms. The engine is equipped with separate
cylinder heads and wet, replaceable cylinder
liners. The engine has an electronic control unit
(E-ECU), which is located on the engine on the
left-hand side of the engine.
4
https//www.ebooklibonline.com Hello dear
friend! Thank you very much for reading. Enter
the link into your browser. The full manual is
available for immediate download. https//www.eb
ooklibonline.com
5
Service Information
Document Title Engine, description D9 Function Group 200 Information Type Service Information Date 2014/4/24
Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB
Engine, description D9 L150E with engine D9A is
introduced at serial number 8000. D9A is a
straight six cylinder, direct-injected diesel
engine with a 9.4 litre cylinder capacity, with
turbo, intercooler, and electronically
controlled fuel injection. The engine has an
overhead camshaft and unit injectors, which are
centred above the pistons and controlled by the
camshaft and a control unit (E-ECU). The control
unit is located on the engine's left side.
Figure 1 Exterior view, D9A
6
Service Information
Document Title Engine identification, D9 Function Group 200 Information Type Service Information Date 2014/4/24
Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB
Engine identification, D9 Identification plate
1 Engine designation, serial number, part number
and assembly plant are stamped in two fields on
the engine block's left front edge Stamping,
field 1 Engine designation serial
number Stamping, field 2 Engine
designation Part number assembly
plant Assembly plants A Skövde, Sweden E
Curitiba, Brazil F Flen, Sweden Identification
plate 2 A decal with the engine's serial number
is located on the engine's ECU to ensure that
correct ECU is mounted on the engine in
production. Identification plate 3 The
certification decal is located on the oil
cooler's casing on the engine's right side as
well as on the vehicle frame.
7
Figure 1 Engine identification, D9A
8
Service Information
Document Title Engine identification, D10 Function Group 200 Information Type Service Information Date 2014/4/24
Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB
Engine identification, D10 Identification
plate Engine designation, serial number and part
number are stamped in three fields on the engine
block's left trailing edge Stamping, field 1
Engine designation Stamping, field 2 Part
number Stamping, field 3 Serial number
Figure 1 Engine identification, D10B
9
Service Information
Document Title Engine, removing Function Group 210 Information Type Service Information Date 2014/4/24
Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB
Go back to Index Page Engine, removing Op nbr
210-070 9998547 Lifting tool 1. Remove the
engine hood. See 821 Engine hood, removing
WARNING
2.
Risk of burns when removing the header tank cap
because of excess pressure in the cooling
system. Remove the cap from the header
tank. Drain the coolant. Use the drain hose
stored in the right-hand battery box or the
toolbox on the machine. Volume See 030 Cooling
system volume. Drain the engine oil if needed.
Use the drain hose, located in the toolbox on the
machine. Volume 030 Engine, volume.

• Figure 1
• Draining the coolant
• Draining the engine oil
• Remove the clamp securing the oil drain plug.

10

• Figure 2
• 1. Clamp
• Remove the side panels.
• Loosen the following from the right side of the
  machine

• Disconnect the cab heater hose from the engine
  block (1).
• Remove the charge-air pipe (2).
• Disconnect the return fuel line from the
  injection pump (3).
• Remove the protective grating over the alternator
  and AC compressor (4).
• Loosen the drive belt's adjusting screw and
  remove the belt (5).
• Remove the ventilation casing on the alternator.
  Make a note of and disconnect the electric
  connections (6).
• Loosen the AC compressor's bolts (4 pcs.) and
  move it aside without stressing the connectors
  (7). Loosen the engine's lower coolant hose (8).
• Loosen the starter motor's electric connections
  (9) Loosen the connection to the oil level
  sensor (SE213) (10).
• Disconnect the cable connection from the air
  filter indicator and remove the air hose from the
  turbocharger (11).
• Remove the radiator's lower hose (12).

? ? ? ? ?
?
11
Figure 3 Machine's right side 6. Loosen the
following from the left side of the machine
WARNING

• Do not disconnect or loosen connections for the
  air conditioning unit (AC). Risk of gas leakage.
• Loosen the fuel line from the primary fuel filter
  (1).
• Loosen the breather hose from the air/oil
  separator (2).
• Loosen the radiator's upper hose (3).
• Disconnect the coolant hoses (2 pcs.) and remove
  the expansion tank with bracket (4).
• Loosen the charge-air pipe's clamp and the sheet
  metal lead-through in the partition wall (5).
• Loosen the secondary steering pump and hold it
  away from the engine using a ratchet block, see
  fig.

12

• Figure 4
• Suspension of secondary steering pump
• Disconnect the connector for the engine
  connection (6).
• Loosen the clamps and cables to the preheating
  coil (7).
• Remove the primary fuel filter from the partition
  wall (8).
• Disconnect the connector for the cabling to the
  air filter indicator (9).

Figure 5 Machine's left side
13
7. Remove the bolts for the coolant pipe's
brackets. Remove the plate between the partition
wall and bottom plate.
WARNING
Do not disconnect or loosen connections for the
air conditioning unit (AC). Risk of gas
leakage. Loosen the receiver dryer from the
partition wall and place it to the side.

• Figure 6
• Receiver drier
• Plate
• Bottom plate
• Loosen and move the condenser to the rear.
• Remove the partition wall's support members.
• Loosen and lift away the partition wall.
  Partition wall, weight approx. 65 kg (143 lbs)

Figure 7 Lifting partition wall 11. Remove the
oil pipe from the flywheel housing.
14

• Figure 8
• Transmission bolt
• Oil pipe
• Rear axle
• Remove the lower transmission bolts, 4 pcs.
• Secure the hydraulic transmission in place with a
  sling and a ratchet blocks as illustrated.

Figure 9 Hydraulic transmission secured (engine
removed) 14. Fit lifting device 9998547 to the
engine's front and rear lifting eyes.
15

• Figure 10
• Lifting device position
• 1. 9998547
• Remove the remaining attaching bolts, 8 pcs., for
  the hydraulic transmission.
• Remove the bolts securing the engine mounting.
  Remove the engine.
• Engine's weight, including oil approx. 1130 kg
  (approx. 2500 lbs)

Figure 11 Engine mount 17. If changing the
engine, transfer the components required to the
new engine. NOTE! Never transfer a component that
could cause a malfunction.
16
Service Information
Document Title Engine, removing Function Group 210 Information Type Service Information Date 2014/4/24
Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB Profile WLO, L150E GB

• Go back to Index Page
• Engine, removing
• Op nbr 210-070
• 11668016 Lifting tool
• 9998547 Lifting tool
• Ratchet block, 750 kg (1653 lbs)
• Place the machine in service position, see 191
  Safety rules when servicing.
• Turn off the voltage with the battery disconnect
  switch.

WARNING
3.
Hot oil and hot engine coolant can cause severe
burns! Drain coolant and engine oil. Remove the
clamp securing the oil drain plug.

• Figure 1
• Draining the coolant
• Draining the engine oil

17

• Figure 2
• 1. Clamp
• Remove the engine hood, see 821 Engine hood,
  removing.
• Remove the side plates on both sides.

Figure 3 6. Remove the engine compartment's
rear partition wall and bottom plate.
Figure 4 1. Partition walls 7. Disconnect the
oil pipe between the flywheel housings and the
hydraulic transmissions from the flywheel housing.
Figure 5
18

• 1. Oil pipe between flywheel housing and
  hydraulic transmission
• Disconnect the hose to the cab heater from the
  engine block.
• Remove the expansion tank.
• Remove the charge-air pipe.
• Remove the upper radiator hose.
• Remove the electric connections from the starter
  motor.

• Figure 6
• Charge air pipe
• Header tank
• Upper radiator hose
• 9. Disconnect the fuel lines from the engine at
  the fuel filter.

Figure 7 1. Fuel lines
19
WARNING
Do not disconnect or loosen connections for the
air conditioning unit (AC). Risk of gas
leakage. 10. Remove the condenser and place it
on the radiator.

• Loosen the air conditioning's receiver dryer from
  the partition wall. Mark up and remove the cable
  connections on the pressure monitor.
• Loosen the fuel system's water trap from the
  partition wall. Detach the lower radiator hose
  from the engine.
• Remove the charge air pipe and the hose between
  the preheating coil and radiator. Disconnect the
  connector from the E-ECU.
• Loosen the alternator from the engine. Remove the
  drive belts. Disconnect the AC compressor from
  the engine, anchor it to the frame.
• NOTE!
• The air conditioning unit's hoses may not be
  folded or clamped.
• Remove the connector for the oil level sensor at
  the front edge of the oil sump.

? ? ? ? ? ?
?

• Figure 8
• Water trap, fuel
• Charge air pipe, preheating coil
• Receiver drier
• Connector, oil level sensor
• Alternator, AC compressor
• Connector, E-ECU
• 11. Disconnect the cabling and hoses from the
  partition wall. Remove the bolts in the
  partition wall's upper attachments. Remove the
  bolts in the partition wall's lower attachments.

20

• Figure 9
• Partition wall's upper attachment
• Partition wall's lower attachment
• 12. Remove the partition wall.
• Partition wall, weight approx. 45 kg (99 lbs)

Figure 10 13. Secure the hydraulic transmission
in place with a sling and a ratchet blocks as
illustrated.
21
Suggest If the above button click is invalid.
Please download this document first, and then
click the above link to download the complete
manual. Thank you so much for reading
22
Figure 11 Hydraulic transmission secured (engine
removed) 14. Fit tool 11 668 016 and connect 999
8547 and a lifting device to the engine.
Figure 12 Lifting tool 999 8547

• Figure 13
• Lifting tool 11 668 016
• Remove the bolts in the flywheel housing for the
  hydraulic transmission.
• Remove the bolts in the cross member for the
  engine mount. Remove the engine.

23
https//www.ebooklibonline.com Hello dear
friend! Thank you very much for reading. Enter
the link into your browser. The full manual is
available for immediate download. https//www.eb
ooklibonline.com
