Title: Quantum Computing Introduction Part II

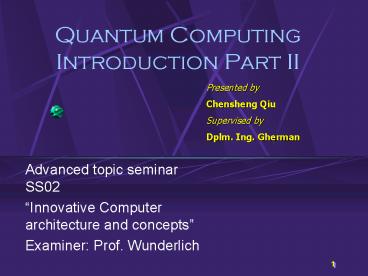

1
Quantum Computing Introduction Part II
Presented by Chensheng Qiu Supervised by Dplm.
Ing. Gherman
  • Advanced topic seminar SS02
  • Innovative Computer architecture and concepts
  • Examiner Prof. Wunderlich

1
2
QC -- Interdisciplinary Subject
Quantum Computation Quantum Information
Study of information processing tasks that can be
accomplished using quantum mechanical systems
Cryptography
Quantum Mechanics
Information Theory
Computer Science
2
3
Contents
  • Classical and Quantum Experiments
  • Basic concepts in Quantum mechanics
  • Qubits and Quantum Registers
  • Quantum Gates and Networks
  • Summary and Concluding remarks

3
4
Classical vs. Quantum Exper.
  • Classical Experiments
  • Experiment with bullets
  • Experiment with waves
  • Quantum Experiments
  • Two slits Experiment with electrons
  • Stern-Gerlach Experiment

4
5
Experiment with bullets
(b)
Figure 1 Experiment with bullets
5
6
Experiment with bullets
(b)
Figure 1 Experiment with bullets
5
7
Experiment with bullets
(b)
Figure 1 Experiment with bullets
5
8
Experiment with bullets
(b)
Figure 1 Experiment with bullets
5
9
Experiment with Waves
wave source
H1
H2
wall
(a)
Figure 2 Experiments with waves
6
10
Experiment with Waves
wave source
H1
H2
wall
(b)
(a)
Figure 2 Experiments with waves
6
11
Experiment with Waves
wave source
H1
H2
I2(x)
wall
(b)
(a)
Figure 2 Experiments with waves
6
12
Experiment with Waves
wave source
H1
H2
wall
(a)
Figure 2 Experiments with waves
6
13
Two Slit Experiment
Figure 3 Two slit experiment
7
14
Two Slit Experiment
Figure 3 Two slit experiment
8
15
Two Slit Exp. With Observ.
H1
H2
? Decoherence
wall
(a)
Figure 4 Two slit experiment with observation
9
16
Stern-Gerlach Experiment
Will be discussed in more detail later
Figure 5 Stern-Gerlach experiment with spin-1/2
particles
10
17
Conclusions From the Exps
  • Limitations of classical mechanics
  • Particles evince wavelike behavior
  • Effect of observations cannot be ignored
  • Evolution and measurement must be distinguished

11
18
Conclusions From the Exps
  • Quantum Phenomena
  • ?
  • Quantum Mechanics

12
19
Contents
  • Classical and Quantum Experiments
  • Basic concepts in Quantum mechanics
  • Qubits and Quantum Registers
  • Quantum Gates and Networks
  • Summary and Concluding remarks

13
20
Requirs On Math. Apparatus
  • Physical states ? Mathematic entities
  • Interference phenomena
  • Nondeterministic predictions
  • Model the effects of measurement
  • Distinction between evolution and measurement

14
21
Whats Quantum Mechanics
  • A mathematical framework
  • Description of the world known
  • Rather simple rules
  • but counterintuitive
  • applications

15
22
Introduction to Linear Algebra
  • Quantum mechanics
  • The basis for quantum computing and quantum
    information
  • Why Linear Algebra?
  • Prerequist
  • What is Linear Algebra concerning?
  • Vector spaces
  • Linear operations

16
23
Basic concs in LA concerning QM
  • Complex numbers
  • Vector space
  • Linear operators
  • Inner products
  • Unitary operators
  • Tensor products

17
24
Dirac-notation
  • For the sake of simplification
  • ket stands for a vector in Hilbert
  • bra stands for the adjoint of
  • Named after the word bracket

18
25
Inner Products
  • A function combining two vectors
  • Yields a complex number
  • Obeys the following rules

19
26
Hilbert Space
  • Inner product space linear space equipped with
    inner product
  • Hilbert Space (finite dimensional) can be
    considered as inner product space of a quantum
    system
  • Orthogonality
  • Norm
  • Unit vector parallel to

20
27
Hilbert Space (Contd)
  • Orthonormal basis
  • a basis set where
  • Can be found from an arbitrary basis set by
    Gram-Schmidt Orthorgonalizatioin

21
28
Unitary Operator
  • An operator U is unitary, if
  • Preserves Inner product

22
29
Tensor Product
  • Larger vector space formed from two smaller ones
  • Combining elements from each in all possible ways
  • Preserves both linearity and scalar
    multiplication

23
30
Postulates in QM
  • Why are postulates important?
  • they provide the connections between the
    physical, real, world and the quantum mechanics
    mathematics used to model these systems
  • - Isaal L.
    Chuang

24
31
Physical Systems - Quantum Mechanics Connections
25
32
Contents
  • Classical and Quantum Experiments
  • Basic concepts in Quantum mechanics
  • Qubits and Quantum Registers
  • Quantum Gates and Networks
  • Summary and Concluding remarks

26
33
Whats a qubit (1)
  • A qubit has two possible states
  • Unlike bits, a quibit can be in a state other
    than
  • We can form linear combinations of states
  • A quibit state is a unit vector in a two
    dimensional complex vector space

27
34
Whats a qubit (2)
  • and are known as computational basis
    states
  • orthonormal basis, we can assume
  • we cannot examine a qubit to determine its
    quantum state
  • A measurement yields

28
35
Qubits Cont'd
  • We may rewrite as
  • From a single measurement one obtains only a
    single bit of information about the state of the
    qubit
  • There is "hidden" quantum information and this
    info grows exponentially

We can ignore eia as it has no observable effect
29
36
Bloch Sphere
30
37
How can a qubit be realized?
  • Two polarizations of a photon
  • Alignment of a nuclear spin in a uniform magnetic
    field
  • Two energy states of an electron

31
38
Qubit in Stern-Gerlach Exp.
Oven
Figure 6 Abstract schematic of the Stern-Gerlach
experiment.
32
39
Qubit in Stern-Gerlach Exp.
Oven
Figure 7 Three stage cascade Stern-Gerlach
measurements
33
40
Qubit in Stern-Gerlach Exp.
Figure 8 Assignment of the qubit states
34
41
Qubit in Stern-Gerlach Exp.
Figure 8 Assignment of the qubit states
35
42
Quantum Registers
  • A collection of qubits
  • Size is the number of qubits it contains
  • State is decided by the tensor product of all the
    single qubits
  • Example the number 6 can be represented by a
    register in state
  • where the stands for tensor product

36
43
Contents
  • Classical and Quantum Experiments
  • Basic concepts in Quantum mechanics
  • Qubits and Quantum Registers
  • Quantum Gates and Networks
  • Summary and Concluding remarks

37
44
Quantum Gates and Networks
  • Operation on qubit
  • Unitarity constraint
  • Quantum network
  • Size of quantum network

38
45
Quantum Gates Why Unitary?
  • Length preserving
  • We require the normalization condition
  • for
  • and the result after the gate
    has acted

39
46
Quantum Gates Why Unitary?
  • Information preserving
  • A unitary operator fulfills
  • ? Reversible!

40
47
Quantum Not-Gate
  • NOT gate representation
  • for any
  • we get
  • to summarize

41
48
Hadamard Gate
  • Most common quantum gate
  • Like a square-root of NOT
  • but

42
49
Hadamard Gate
  • Bloch Sphere Representation

43
50
Single Qubit Gate Class. vs. Quan.
Figure 8 Operation on single bit in classical
gate (top) and operation on single qubit in
quatum gates
44
51
Phase Shift Gate
45
52
Separable vs. Entangled States
46
53
Multiple Qubit Gates
  • Controlled-NOT (CNOT) Gate
  • two input qubits control and target
  • In General

47
54
CNOT quantum gate

48
55
Controlled-U Gate

49
56
Universal set of gates
  • Classical Universal Gates (example)
  • - The NAND gate is a classical Universal
  • Gate. Why?

50
57
Universal set of gates
  • Universal Quantum Gates
  • Infinite set e.g. Hadamard gate, all phase
    gates, and C-NOT
  • Finite set e.g. Hadamard and the controlled-V
    can be used to APPROXIMATE any unitary
    transformation on qubits

51
58
Contents
  • Classical and Quantum Experiments
  • Basic concepts in Quantum mechanics
  • Qubits and Quantum Registers
  • Quantum Gates and Networks
  • Summary and Concluding remarks

52
59
Summary and Concluding Remarks
  • Experimental motivations for QM
  • Hilbert space
  • Unitary transformation
  • Qubits as mathematical objects
  • Quantum gates
  • Gedanken experiments

53
60
7- Qubit Q-Computer by IBM
Quantum computing researchers (l-r) Isaac Chuang
and Costantino Yannoni
  • Could be Most advanced model of QC
  • Finding the factors of the number 15 with Shors
    algorithm
  • Nuclei of five fluorine and two carbon atoms
    interacting with each other
  • Programmed by RF pulses
  • Detected by NMR technique

Diagram of the 7-qubit molecule
From IBM research news
54
61
Thanks !
Questions and Discussion
You can click mouse to view the following slide,
I. E. definition of tensor product of matrix and
the part of Quantum Arithmetic, which werent
shown during my presentation
55
62
Tensor Product
  • In QC, we usually use the tensor product of
    matrix

63
Contents
  • Classical and Quantum Experiments
  • Basic concepts in Quantum mechanics
  • Qubits and Quantum Registers
  • Quantum Gates and Networks
  • Quantum Arithmetic
  • Summary and Concluding remarks

64
Quantum Arithmetic
  • Hadamard and C-V gates as building block

65
Quantum Arithmetic
  • Three subsequent
  • Toffoli-Gate

66
Quantum Arithmetic
  • Auxiliary bit
  • Reversible

67
Quantum Arithmetic
  • Function evaluation
  • E.g Toffoli Gate
  • Requires at least quantum registers
  • Possible need of working-bit

68
Quantum Arithmetic
  • Modular arithmetic
  • Commutative
  • Associative
  • distributive
  • A trick for mod
  • For l-bit modulus n
  • intermediate result lt 2l-bit

69
Quantum Arithmetic
  • Function evaluation for supperposition
  • f(x) for all x in a single run
  • Problem of measurement
