Title: Gel time of different volume fractions of polystyrene particles

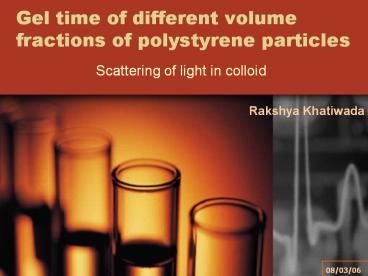

1
Gel time of different volume fractions of
polystyrene particles
  • Scattering of light in colloid

Rakshya Khatiwada
08/03/06
2
Outline
  • Introduction
  • Apparatus
  • Calibration
  • Sample Preparation
  • Measurements and Data Analysis
  • Results
  • Conclusion

3
Introduction
  • 3D solid objects dont coalesce like liquids
  • They form fractals with some different dimension
  • In dilute systems, including aerosols and
    colloids the dimension is 1.8

4
  • What is gelation of colloids?
  • Network of smaller particles/monomers
  • The particles exhibiting Brownian motion
    stop/slow down
  • How do we know when the gel point is reached?
  • The intensity of light doesnt change much
    because the network stops growing

5
What is polystyrene?
  • Micro spheres of 24nm diameter
  • About same charge
  • MgCl2 forms ions which screen the coulomb charge
    repulsion allowing them to stick together with
    van der Waals force

6
Calibration Apparatus
  • Used single slit (D10µm)

488nm laser beam
7
Single slit diffraction
Scattering wave vector Unit 1/m gives the
size of the aggregate
8
Sample preparation
  • Different volume fractions of polystyrene
  • 9.14E-4
  • 7.03E-4
  • 5.41E-4
  • 4.16E-4
  • 3.20E-4
  • 2.46E-4
  • 35mM of MgCl2

9
50µl of Polystyrene50µl of MgCl2
MgCl2
Polystyrene
Sample Holder
10
Measurements and Data Analysis
  • Intensity vs. wave vector q

11
Gel time vs. volume fraction
Volume fraction Theoretical gel time (minutes) Experimental gel time (minutes)
9.14E-4 0.300
7.03E-4 0.629
5.41E-4 1.21
4.16E-4 2.33
3.20E-4 4.50
2.46E-4 8.69
Theoretical gel time
12
Results Gel time vs.
volume fraction
13
Conclusion
  • Reproducible data
  • Lower volume fractions, longer gel time
  • Experimental gel times longer than theoretical
  • Literature values compared to our theory are
    consistent with our conclusions here.

14
Possibilities
  • Maybe theory has simplified so many details
    (example same cluster size)
  • Maybe stoppage of system to evolve is not good
    indication of gel time.
  • Need a better way of finding gel point
  • Like Dynamic light scattering (can see particles
    moving)

15
Acknowledgement
  • Supervisor Tahereh Mokhtari Dr. Christopher
    Sorensen
  • Thanks to
  • Rajan Dhoubhadel
  • Hao Yan
