Title: Structural Design of HybridTowers for Wind Energy Converters

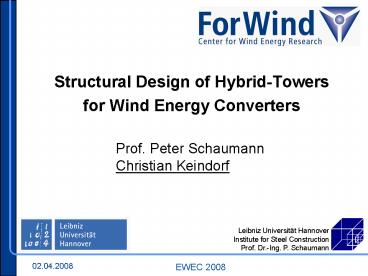

1
Structural Design of Hybrid-Towers for Wind
Energy Converters
Prof. Peter SchaumannChristian Keindorf
Leibniz Universität Hannover Institute for Steel
Construction Prof. Dr.-Ing. P. Schaumann
2
Motivation
  • New tower concepts for the next generation of WEC
  • Increase of ultimate limit state (shell
    stability)
  • Increase of fatigue limit state (welding details)
  • Check the use of high strength steels
  • New types of connections
  • New materials

3
Ultimate limit state (shell buckling)
  • Shell buckling due to axial compression DIN
    18800-4, EC 3 Part 1-6

Axial compression
4
Comparison of tower sections with various steel
grades
  • Geometry H 30 m / D 5.5 m / t const.

ST 235 t50
ST 355 t35
ST 460 t24
ST 690 t16
5
A new concept for tower sections
  • The objective is to increase the shell stability
    simultaneously with reduction in overall masses

outer steel face
core material
inner steel face
SCS
ST
SGS
SES
Steel
Steel-Elastomer-Steel
Steel-Grout-Steel
Steel-Concrete-Steel
Idea Sandwich shells with a core material as
full space stiffener, for
  • increasing the shell stability
  • using high strength steels
  • assembly thinner steel plates
  • additional load capacity due to the core
  • decreasing weld deposit and pre heating -gt
    faster welding processes
  • new hybrid tower variants and new type of
    connections possible

6
Hybrid- and Sandwichtowers
  • Parameter study

steel grades S 235 S 355 S 460
tower section L 30000 mm R0
2750 mm t-1/1 8 - 50 mm
core materials grout elastomer t0 0 - 80 mm
7
Optimization of shell stability
Start the optimization process with buckling
reduction curve
1.
3.
Get the critical buckling stress
for S 235
for S 460
4.
Thickness of core material
0.25
2.
Get the limit value depending on the relative
slenderness of shell
5.
68 mm
8
Buckling loads and tonnage
the objective was increase the shell stability
simultaneously with reduction of overall masses
is possible in theory! but in practice?
tonnage
buckling loads for axial compression
9
Shell buckling tests
Questions for the buckling tests with
sandwich-cylinders
  • Increase in shell stability?
  • Additional load capacity due to the core
    material?
  • Remain stable up to the yield stress of steel
    faces?
  • Bonding between core and steel faces sufficient?
  • Which failure modes occur?

10
Test Setup (model scale tests)
  • Shell buckling tests for axial compression of
    sandwich cylinders

SES
SGS
processes of injection - vertical or
horizontal position - prefabrication or
in-situ - full or parts of core volume - with
or without top plate
11
Buckling curves
Npl,ST_1 Npl,ST_2 178 kN
(only inner steel shell tested)
(only outer steel shell tested)
12
Axial load capacity
13
Failure modes
shear crimping
general buckling
face dimpling
face wrinkling inside and outside
local impact
face yielding or fracture
core shear failure
Source Dan Zenkert
SES
SGS
14
Fatigue
  • increased stress ranges Ds for steel faces with
    high strength steels, but no reduction in fatigue
    resistance due to the thickness effect!

with
  • example circular butt weld between segments
    (FAT 90)
  • increase in fatigue strength necessary
  • using methods for post weld treatment

15
Post weld treatment
as welded (Dsc 95 MPa)
  • Enhancing fatigue resistance by high frequency
    needle peening (Ultrasonic Impact Treatment, UIT)

UIT
weld
pin
weld toe
with UIT (Dsc 205 MPa)
fatigue crack
16
A new type of connection
steel section
  • advantages
  • - double shear tube-in-tube connection
  • - lower overlapped length as for grouted joints
  • - no eccentricities
  • - compensation of imperfection possible
  • no ring flanges
  • no bolts
  • fewer hot spots than for ring flanges and bolts
    (fatigue)
  • - lower costs for inspection and maintenance
  • stiff connection due to three parallel shells

high performance grout
overlapped length
sandwich section
pre-cast core material
spacer
no ring flanges
  • disadvantages
  • welding of additional shear keys
  • more erection techniques and work

base section
foundation
17
Conclusions
  • New tower concept with sandwich shells
  • Increase in shell stability up to the plastic
    range
  • Additional load capacity due to stiff core
    materials
  • Using S 460 for steel faces, but not S 690
  • Enhanced fatigue strength of welds necessary
  • New type of connection without bolts and ring
    flanges

18
Structural Design of Hybrid-Towers for Wind
Energy Converters
Prof. Peter SchaumannChristian
Keindorf keindorf_at_stahl.uni-hannover.de www.stahl
bau.uni-hannover.de
