Lathe Quiz

1

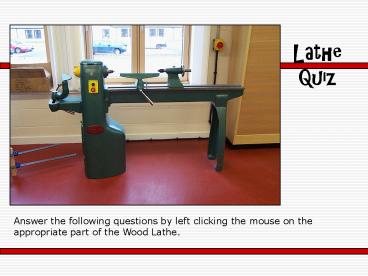

LatheQuiz
Answer the following questions by left clicking
the mouse on the appropriate part of the Wood
Lathe.
2
Copper

1. Where is the tailstock ?

3
Tailstock
Copper
The tailstock is used to support one end of the
work piece when turning between centres.
4
Copper
2. Where is the toolrest ?
5
Toolrest
Copper
The Toolrest is used to support the lathe tool
when turning
6
Copper
3. Where is the Forked Centre ?
7
Forked Centre
Copper
The Forked Centre supports the other end of the
work piece.
8
Copper
4. Where is the Lathe Bed?
9
Lathe Bed
Copper
The Lathe Bed is made from cast Iron and machined
flat to allow the tailstock to slide freely along
its length
10
Copper

• Where is the Revolving
• Centre?

11
Revolving Centre
Copper
The Revolving Centre supports the other end of
the work piece.
12
Copper
6. Where is the Headstock?
13
Headstock
Copper
The Headstock contains the Drive shaft and
Pulleys.
14
Copper
7. Where is the Isolator?
15
Isolator
Copper
The Isolator is used to Isolate the Lathes power
supply.
16
8. Which of the above Lathe tools is a Parting
tool?
17
The Parting tool
The parting tool can be used to cut narrow slots
in your work piece.
18
9. Which of the above Lathe tools is a Gouge?
19
The Gouge
Cross Section
The Gouge utilises a slicing action and can be
used for both roughing down and fine finishing
20
Copper
10. Which of the above Lathe tools is a Skew
Chisel?
21
The Skew Chisel
The skew chisel can be used to produce a very
smooth finish
When using this tool remember only to use the
bottom third of the blade
Copper
22
Copper
11. Which of the above Lathe tools is a Scraper?
23
The Scraper
Scrapers are available in a wide range of shapes
and sizes.
Copper
Scrapers are among the easiest lathe tools to use
however as the name suggests the tool scrapes
rather than cuts and can leave a rather rough
finish.
24
12. Which of the tools shown on the left is a
faceplate ?
25
The Faceplate
A Faceplate is used to attach a wood blank to the
lathe when making a bowl
Faceplate
26
Congratulations you have finished the Wood Lathe
Quiz
