Title: 12th International Conference EPE-PEMC 2006 Portoro


1

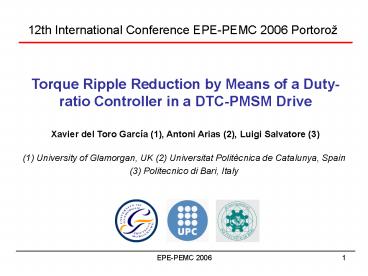

12th International Conference EPE-PEMC 2006
Portorož
Torque Ripple Reduction by Means of a Duty-ratio Controller in a DTC-PMSM Drive
Xavier del Toro García (1), Antoni Arias (2), Luigi Salvatore (3) (1) University of Glamorgan, UK (2) Universitat Politècnica de Catalunya, Spain (3) Politecnico di Bari, Italy


2
Outline
  • Introduction.
  • The PMSM.
  • DTC.
  • Duty-ratio Control Algorithm.
  • Simulation Results.
  • Conclusions.

3
Introduction
  • This work aims to study the application of the
    Direct Torque Control strategy to Permanent
    Magnet Synchronous Motor (PMSM).
  • Vector Control concept (early 70s). Field
    Oriented Control (FOC) (Blaschke 1972).
  • Direct Torque Control (DTC) (Takahashi 1986).
    Direct Self Control (DSC) was developed
    (Depenbrock 1988).
  • These thecniques were first developed and
    applied to Induction Motors (IMs), due to their
    success they were then adopted in PMSM drives
    (Zhong 1996).
  • The torque ripple present in DTC systems is one
    of the main drawbacks of this technique. A
    possible method to reduce the amplitude of the
    torque ripple is presented for DTC-PMSM drives.

4
The PMSM
  • Main advantges of the PMSM
  • Absence of brushes and slip rings, lower
    maintenace required.
  • Lower inertia and better dynamic performance.
  • Higher efficiency, there are no rotor losses.
  • Higher power/weight ratio.
  • Disadvantages
  • Higher cost.
  • Variation of PM properties.
  • Applications
  • High acceleration and precise control required.
  • Robotics, machine tools.

5
DTC
  • High performance and simplicity.
  • Decoupled and direct control of flux and torque.
  • Indirect control of stator currents and voltages.
  • Approximately sinusoidal stator fluxes and stator
    currents.
  • Quick torque response.
  • Inherent motion-sensorless control method (the
    motor speed is not required to achieve the torque
    control).
  • Absence of coordinate transformation (required in
    FOC).
  • Absence of voltage modulator, as well as other
    controllers such as PID and current controllers
    (used in FOC).
  • Variable inverter switching frequency (depends on
    on the hysteresis bands, the operating point and
    the error level of the variables under control).
  • Stator flux and torque estimation is required.
    Only the stator resistance is needed for the
    estimator.
  • Low sampling period required.
  • High torque and flux ripples (accentuated when
    controlling a PMSM).

6
DTC
7
Duty-ratio Control Algorithm
  • Duty-ratio Control A possible solution to reduce
    the torque ripple amplitude inherent to the DTC
    strategy.
  • Requires the calculation of the duty cycle (d
    ton / Ts) to minimise the torque ripple for every
    sampling period. How can it be done?
  • Analytical methods (Kang 1999).
  • Fuzzy-logic (Bird 97).

8
Duty-ratio Control Algorithm
  • J. Kang and S. Sul "New Direct Torque Control of
    Induction Motor for Minimum Torque Ripple and
    Constant Switching Frequency." IEEE Trans. on
    Ind. Appl., vol 35, no 5, pp. 1076-1082,
    September/October 1999.
  • The duty cycle (d) is a function of
  • The torque error.
  • The torque slope produced by the active vector.
  • The torque slope produce by the null vector.

?
9
Duty-ratio Control Algorithm
Surface-Mounted PMSM (LsdLsq)
10
Duty-ratio Control Algorithm
Active vector
Null vector
  • Requires coordinate transformation.
  • Requires rotor speed and angle.
  • Fixed average switching frequency Fs1/(3Ts)

11
Duty-ratio Control Algorithm
12
Results
DTC 100µs
DTC 50µs
DTC 25µs
DTC-DR 100µs
13
Conclusions
  • The application of the Direct Torque Control
    strategy to Permanent Magnet Synchronous Motor
    (PMSM) has been investigated.
  • Due to the low stator inductance torque and flux
    ripples are very high (when compared to the
    Induction Motor case).
  • The duty-ratio control scheme has been
    investigated in order to reduce the torque
    ripple. An analytical approach has been employed
    based on the motor model.
  • Torque ripple is considerably reduced.
  • Average switching frequency is fixed in
    steady-state to one third of the sampling
    frequency.
  • Requires coordinate transformation, rotor speed
    and angle.

14
Thanks for your attention
