LaserAce Burden Finder

1
ULTRA ENVIRO-SYSTEMS (P) LTD.

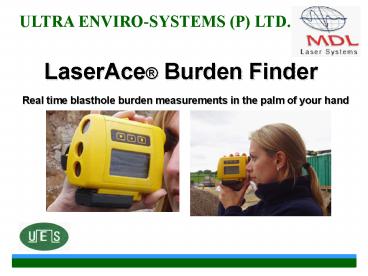

LaserAce Burden Finder
Real time blasthole burden measurements in the
palm of your hand
2
ULTRA ENVIRO-SYSTEMS (P) LTD. Formerly Globe
Agencies
Visionary and founder Late Shyam Sunder Sharma
started Globe Agencies in 1969 to Sell, Support
and Service high technological instrumentation in
Mining, Atmospheric and Earth Sciences.    We
have maintained over the years High Quality
Personalized Sales After Sales Services to our
customers.    We work in close coordination with
customers and our foreign collaborators and
principals to offer technological instruments and
systems best suited to Indian conditions.   We
also offer total Indian Solutions using Local
Contents, Layouts and Hardware.
3
LaserAce BurdenFinder is the worlds first
DIRECT Blasthole-Burden measurement system. The
Class 1 eyesafe reflectorless laser instrument
allows users to input basic drilling parameters
(drill angle, collar-crest distance and required
minimum burden). Shoot any point on the face in
front of a blasthole and directly display the
calculated burden and hole depth for that point.
A percentage indication of over/ under burden is
also displayed.
Real time blasthole burden measurements in the
palm of your hand Sequential shots taken from the
crest to toe infront of the blasthole allows a
complete table of burden depths to be saved and
displayed. Maximum and minimum burdens are
calculated and displayed. All measured data can
be transferred to PC computers and printers using
internal Bluetooth data radio.
4
Benefits - Safe Measurement to inaccessible/
dangerous areas - Direct Reading (no
computers required) - Lightweight/ Portable -
Bluetooth radio data output to PCs - Onboard
data memory
Features - Laser Distance Meter - Digital
Inclinometer - Optical Sighting Scope - Micro
Computer LCD - Active electronic
reflector mode - Graphics Display - Kbyte
Memory - Bluetooth data communication
5
Technical Specification
Laser - Class 1 Eyesafe - Passive Range upto
150m/ 500ft - Range to Reflector 600m/ 1970ft -
Typical Accuracy 10cm/ 4 - Resolution 1cm/
0.4 - Measurement Time 0.3 seconds Environmental
- Operating Temperature -10 to 45C - Water
Dust Resistant (IP65) Inclinometer - Type
Accelerometer - Range -70 to 70 - Accuracy
0.1 at 0 - Resolution 0.1 Physical - Data I/O
Bluetooth or RS232 - Weight 400g/ 14oz - Power
7.2V Lithium Ion Battery - Dimensions 110 x 100
x 50mm 4.33 x 3.94 x 1.97 inches
6
(No Transcript)
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
(No Transcript)
13
Thanks for your attention
