Chapter%205:%20Java%20Language%20Basics

1

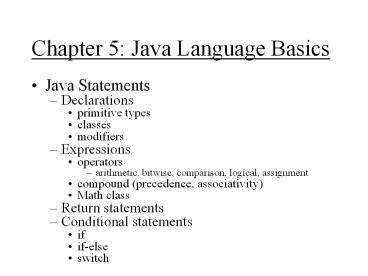

Chapter 5 Java Language Basics

• Java Statements
• Declarations
• primitive types
• classes
• modifiers
• Expressions
• operators
• arithmetic, bitwise, comparison, logical,
  assignment
• compound (precedence, associativity)
• Math class
• Return statements
• Conditional statements
• if
• if-else
• switch

2
Java Language

• A Java program consists of a set of classes
• an application program has a method main
• an applet generally has a class that extends the
  Applet class (instantiated when applet run)
• Classes have instance vars and methods
• methods have a header and body
• body consists of a sequence of statements

3
Java Statements

• Declarations - of variables
• Expression statements
• includes method calls
• Return statements
• Empty statements
• Group (compound) statements - more later
• All statements end with semi-colon()

4
Declarations

• At the class level (outside of a method), they
  define instance variables
• each class member has a slot for instance vars
• In a method they create a local variable
• local - exists only when method is running
• disappears when method ends

5
Declaration Forms

• PrimitiveType Name
• Class Name
• PrimitiveType Name Expression
• Expressions can be primitive values
• Class Name new Class(args) - ctor call
• Class Name Expression - returns instance
• Class Name ClassValue - somewhat rare

6
Primitive Type Values

• Differ from classes, have possible values, dont
  need to instantiate
• Primitives have lots or preestablished values
• Primitives dont allow the creation of new values
• Example integer 1, dont need to create an
  instance with value 1, 1 translates to 1

7
Primitive Types

• Whole numbers byte, short, int, long
• differ by the number of bits (8,16,32,64)
• limited (by bits), short -32768 to 32767
• Floating point numbers float, double
• differ by number of bits (32,64)
• Character values char
• Logical values boolean

8
Whole Numbers

• value format - digit digit
• L at end for long constants
• examples 5, 3, -30, 0005, 5000L
• representation twos complement
• can use bitwise ops to extract parts of number

9
Twos Complement

• positive number 0 (sign) binarynum
• ex. 0 0100101 37 (25 22 20)
• negative numbers
• take binarynum for magnitude (37 0100101)
• invert (change 1s to 0s) (1011010)
• add 1 (1011011)
• add leading 1 for sign
• -37 (11011011)

10
Floating-Point Numbers

• Constant values
• optional sign (-) plus
• digitstring, digitstring ., . digitString, or
  digitString . digitString plus
• optional exponent e intString
• examples 3, 3.0, .4e20, 3.4e-097
• add f at end for float constants
• representation sign (1 bit) magnitude
  exponent

11
Characters

• Constant values between single quotes ()
• Special values
• \b - backspace
• \n - linefeed
• \r - carriage return
• \t - tab char
• \ - quote
• \\ - backslash
• \ - double quote

12
Logical (boolean) values

• constant values true, false
• no other values

13
Instance Variable Modifiers

• Various terms can appear before each instance
  variables (and methods)
• access modifiers private, protected, public
• determine where the var/class can be accessed
• static
• indicates only one copy needed
• final
• indicates initial value is final
• Can appear in order (up to you)

14
Static

• A static instance variable means there is one
  copy for the whole class
• static int classcount 0 // count instances
• A static method is usually associated with a
  class that cannot be sub-classed (e.g. Math
  classes)
• Can refer to static vars through class (as in
  Math.PI)

15
Final

• A final instance variable is given a value, and
  the value remains unchanged (constant)
• often used with static
• final static double PI 3.14152
• in a final declaration there must be an
  assignment (), once this assignment is done no
  change is allowed

16
Access Modifiers

• private - this instance/method can only be used
  by members of the class (not inherited)
• protected - same as private, except can be
  inherited
• public - can be used/accessed by any class (be
  careful with public instance vars)
• package (default) - used by any member of package

17
Object-Oriented Orientation

• Generally restrict access (make instance vars
  private)
• How to change/look at vars outside class?
• Accessor method (method that returns value)
• Mutator method (method that changes value)

18
Making a Package

• Put files in a directory with package name
• At the top of each file add a statement
• package myPackageName
• To include your package in another class
  definition
• import myPackageName. etc.

19
Scope

• Common problems
• undefined variable (Java does not see var)
• multiply defined variable
• resolved by scoping rules
• Rules
• item connected to most recent declaration
• cannot have two items with same name in same block

20
Scope Example

• class MyClass
• int huh 2
• void method1()
• int huh 3
• // is huh 2 or 3 here?
• void method2()
• // is huh 2 or 3 here?
• void huh() // is this ok?

21
Expressions

• Need not be simple values
• Can be the result of a complex calculation
  involving operators (, , )
• Java has rules for resolving operators
• Some operators provided by Math class
  (automatically included)

22
Arithmetic Operators

• Apply to numbers (whole, floating-point)
• - addition (e.g. 5 3 is 8)
• also used as unary (as in 5)
• - - subtraction (e.g. 5 - 3 is 2)
• also used as unary (as in - 3)
• - multiplication (e.g. 5 3 is 15)
• / - division (e.g. 5 / 3 is 1 or 1.66666)
• result depends on args (whole -gt whole, float-gt
  float)
• - mod or remainder (e.g. 5 3 is 2)
• whole nums only

23
Bitwise Operators

• Apply to integrals (whole numbers, chars)
• Assume x10001000, y11000111
• - ones complement (flip bits) (x is 01110111)
• - and (x y is 10000000)
• - or (x y is 11001111)
• - xor (x y is 01001111)
• ltlt - left shift, pad with 0 (x ltlt 5 is 00000000)
• gtgt - right shift, pad leftmost (x gtgt 5 11111100)
• gtgtgt - right shift, pad 0 (x gtgtgt 5 is 00000100)

24
Comparison Operators

• Apply to all primitive types
• Assume x 5
• - equals (x 5 is true) applies to all types
• ! - not equals (x ! 5 is false) applies to all
• lt - less than or equal (x lt 5 is true)
• gt - greater than or equal (x gt 5 is true)
• lt - less than (x lt 5 is false)
• gt - greater than (x gt 5 is false)

25
Logical Operators

• Apply to boolean expressions
• Assume p is true q is false
• ! - not (!p is false)
• - and (p q is false)
• - short circuit and (p q is false)
• - or (p q is true)
• - short circuit or (p q is true)
• - have different values (p q is true)
• short circuit - if first arg determines value,
  second arg not evaluated

26
Assignment Operators

• Set the value of any variable
• - assign (x 5)
• can be strung together x y 5
• Assignment shorthands
• example x 5 is x x 5
• others -, , /, , ltlt, gtgt, gtgtgt, , ,

27
Increment Operators

• (increment by 1) -- (decrement by 1)
• can be used before or after an expression
• x or x
• prefix version - in/decrements and returns
  changed value
• postfix version - in/decrements and returns value
  before change
• y x or y x

28
Assigning Primitives, Instances
Primitive variables hold values Class variables
point to objects Can lose track of object when
assigning with Class vars

• MyClass c1 new MyClass()
• MyClass c2 new MyClass()
• c1 c2 // Both point at second
• // MyClass object created

• x 5
• y 3
• x y // both have copies
• // of value 3

29
Math Class

• Provides constants Math.PI, Math.E
• Methods (called by Math.methodname)
• double sqrt(double x) - square root of x
• double pow(double x, double y) - x raised to y
• type abs(type x) - absolute value
• type max(type x, type y) - maximum of x,y
• type min(type x, type y) - minimum of x,y
• type for all 3 can be int, long, float, double

30
Math Class

• Methods
• double ceil(double x) - round up to whole num
• double floor(double x) - round down to whole
• double rint(double x) - round to nearest whole
• int round(float x) - round to nearest int
• long round(double x) - round to nearest long
• double exp(double x) - e of x
• double log(double x) - natural log of x
• double cos(double x)
• double sin(double x)
• double tan(double x)

31
Casting Operator

• (Type) object (e.g. (float) x , x is an int)
• Requesting a conversion
• Some are silly (boolean) myClassInstance
• Generally safe to go from a limited to more
  expansive type
• int -gt float
• class -gt parent class
• Some casting done for you
• x 3 (if x is a float, 3 is cast to float)

32
Method Calls

• Form
• instanceName.methodName(args) or
• className.methodName(args) - for static methods
• Some methods return values, some dont (void)
• illegal to use a void return value in operator
  expecting type

33
Other Operators

• x instanceof Class - returns boolean, true if x
  is an instance of the class
• boolExpr ? expr1 expr2 - ternary expression,
  if boolExpr evaluates to true, return expr1, else
  returns expr2

34
Compound Expressions

• How to resolve operations with multiple
  operators
• x 3 y Math.sqrt(5)
• All operators have precedence, associativity
• operators first evaluated in order of precedence
• x 3 y is x (3 y) since has higher prec
• within same precedence associativity (left to
  right or right to left) determines
• 5 - 3 - 2 is (5 - 3) - 2 because of left
  associativity

35
Precedence () -- (unary ) (unary -) !
(typecast) / - ltlt gtgt gtgtgt lt lt gt gt
instanceof ! ? - /
ltlt gtgt gtgtgt
Associativity left to right right to left left to
right left to right left to right left to
right left to right left to right left to
right left to right left to right left to
right right to left right to left
36
Expression Statements

• Consist of a single expression followed by a
  semi-colon ()
• x y z
• myInstance.methodCall()
• 5

37
Return Statements

• In a method you signal the value you have
  calculated with a return statement
• public double mySqr(double x)
• return x x
• Type must match header type
• Must have a return statement (in every path)

38
Empty Statements

• Just a semi-colon ()
• Need to be careful when using compound ops such
  as if statements

39
Conditional Statements

• If statement - checks condition, if true,
  conditional statement executed
• If-else statement - depending on conditions
  executes then or else condition
• Switch statement - jumps to one of many labels
  depending on value of switch expression

40
If Statement

• Form if (booleanExpression) statement
• example if (x ! 0) y y / x
• Statement evaluated if booleanExpression
  evaluates to true
• Can compose
• if (x ! 0)
• if (y gt 0)
• y y x

41
Executing gt 1 Statement

• What if you want two statements executed when
  condition is true
• if (x ! 0)
• y y / x
• z z / x
• doesnt work
• Use blocks - treated as one statement
• if (x ! 0)
• y y / x
• z z / x
• safe to always use (even if only one statement in
  )

42
If-Else Statement

• Form if (boolExpr) thenstmt else elsestmt
• if (x 0) y 0.0 else y y / x
• which statement executes depends on whether x is
  0 or not
• If gt 1 if and only one else?
• if (x gt 0)
• if (y lt 0)
• x 0.0
• else y 0.0 // which??
• Else always matches the most recent if

43
Switch Statement

• Form
• switch (expression)
• case const1a case const1b
• some statements
• case const2a case const2b ..
• some statements
• default
• some statements

44
Switch Selection

• Switch expression is evaluated
• Value matched to case
• All statements following that case are executed
• Cases must be constants, of same type as
  expression
• Default is used if value matches no case

45
Breaks in Switch Blocks

• Switch evaluates all statements after case
• switch (x)
• case 1
• doA
• default
• doB
• When x is 1, doA and doB are executed, use a
  break to stop the switch statement

46
Breaks in Switch Blocks

• Adding a break
• switch (x)
• case 1
• doA
• break
• default
• doB
• When x is 1, doA is executed, then break ends
  switch
