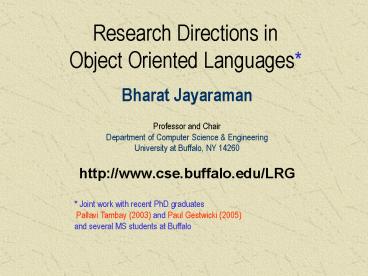

Research Directions in Object Oriented Languages

1
Research Directions in Object Oriented Languages

• Bharat Jayaraman
• Professor and Chair
• Department of Computer Science Engineering
• University at Buffalo, NY 14260
• http//www.cse.buffalo.edu/LRG

Joint work with recent PhD graduates Pallavi
Tambay (2003) and Paul Gestwicki (2005) and
several MS students at Buffalo
2
Programming Languages
Imperative
Declarative
Procedural
Data Abstraction
Relational
Functional
Logic
Modules
Constraints
Objects
C
Fortran
ML

Ada
Java
CLP Prolog
3
Two Research Projects

• Modeling Complex Systems
• Interactive Visualization

4
I. Modeling Complex Systems

• Motivating Domains
• Engineering
• Organizational
• Biological
• Common Characteristics
• Assembly of components
• Laws of behavior
• Natural visual representations

5
Building Elements
(Kalay et al 1998)
6
Examples of Laws/Constraints

• The load on a wall its load bearing capacity.
• The sum of the forces at a joint should be
  zero.
• Various other constraints, such as
• - mate constraints
• - flush constraints
• - angle constraints
• etc.

7
Our Principles of Modeling

• compositional specification of structure
• ? objects
• declarative specification of behavior
• ? constraints
• visual specification of assembly ? diagrams

8
I. Constrained Objects

• An object is a container of data that is accessed
  via a well-defined interface of procedures.
  (Imperative)
• A constrained object contains data that is
  governed by laws, or constraints. (Declarative)
• Examples
• resistor in a circuit
• a joint in a truss
• a cell in a spreadsheet

9
Constraints

• A constraint is a declarative relation among
  variables, e.g.,
• F 32 1.8C
• Constraints are additive, and collectively
  enforce the conditions among variables
• D 1
• D 31
• D 29 ? M 2 /\ leapyear(Y)
• Many algorithms for constraint satisfaction

10
1. Circuits as Constrained Objects
V1 I1 R1
V2 I2 R2
V3 I3 R3
11
Overview of Cob Programs

• class class_id extends class_id
• attributes
• attributes
• constraints
• constraints
• constructor
• constructor_clauses

Class inheritance
equations, inequations, conditional, quantified,
aggregate
12
Cob Class Definitions
class parallel extends component attributes
component C constraints forall X in C
(X.V V) (sum X in C X.I) I (sum X
in C 1/X.R) 1/R constructor parallel(P)
C P
class component attributes Real
V, I, R constraints V I R constructor
component(V1, I1, R1) V V1 I I1
R R1
Ohms Law
13
2. Truss as Constrained Object
Load
Load
Joint
Beam
14

• class joint
• attributes
• bar Bars
• load Loads
• constraints
• (sum X in Bars X.B.F sin(X.A))
• (sum L in Loads L.F sin(L.A))
  0
• (sum Y in Bars Y.B.F cos(Y.A))
• (sum M in Loads M.F cos(M.A))
  0
• constructor joint(B1, L1) Bars B1 Loads
  L1

15

• class bar
• attributes
• beam B real A
• constraints
• 0 ? A A ? 360
• constructor bar (B1, A1)
• B B1 A A1
• class load
• attributes
• real F, A
• constraints
• 0 ? A A ? 360
• constructor load (F1, A1)
• F F1 A A1

16
class beam attributes real E, Sy, L, W,
H, F_bn, F_bk, F_t, Sigma, I, F constraints
Pi 3.141 I F_bk L L / (Pi Pi
E) I W H H H / 12 F_t Sy
W H Sigma H I F_bn / (8 I)
F F_t - F gt 0 F F_bk - F lt
0 constructor beam(E1, Sy1, L1, W1, H1,F1)
E E1 L L1 HH1 WW1 F F1
17
Overall Modeling Scenario
modeling define_classes
build_instance
solve_instance
modify re_solve
query
18
Modeling Tools

• Constrained Object Language (Cob)
• Text-based language
• Constraint-Based UML (CUML)
• Domain-independent graphical modeling language
• Domain-Specific Visual Programming
• Diagrammatic notations customized for specific
  application domains, e.g., circuits, trusses, etc.

19
(with R. Jotwani)
CUML Constraint-based UML
20
CUML ? Cob
21
(with A. Dev and N. Menon)
Domain-Specific Visual Language

22
(No Transcript)
23
(No Transcript)
24
Compiled CUML Code
Compiled Circuit Diagram Code
Answers
Cob Compiler
Diagram Manager
Constraint Engine
CLP Code
Optimized Code
Optimizer
25
CUML Class Diagram
Compiler
Textual Cob Code
By Chinchani, Pramanik, Dutta
26
Circuit Diagram
Compiler
Textual Code
27
Optimized Code (by partial evaluation of
generated code)

• V1 V2 I1 10 I2 20
• V3 V4 I3 20 I4 20
• S.I I1 I2 I3 I4
• 1/P1.R 1/10 1/ 20
• V3 S.I P2 .R
• 1/P2.R 1/20 1/20
• 30 S.I S.R
• 30 V1 V3
• S.R P1.R P2.R

28
Building Elements (Kalay 1998)
29
Overall Class Diagram
30
Class Building

• class building
• attributes
• level Ls
• real Area
• constraints
• Area sum X in Ls X.Area
• constructor
• building(L)
• Ls L

Area of the building is the sum of areas of each
level
31
Class Slab

• class slab
• attributes
• level Pl
• beam Peripheralbeams
• real Z
• constraints
• forall B in Peripheralbeams B.Z Z
• constructor
• slab(L,B)
• Pl L
• Peripheralbeams B

The height of all beams surrounding the slab must
be the same
32
Two-level House (Kalay et al)
33
Cob Representation for a Space

• space Spaces00
• slab Slabs0
• slab Slabs1
• surface Surfaces00
• beam Beams01
• slab Slabs00
• surface Surfaces003, Surfaces002
• surface Surfaces001, Surfaces000
• horizontalSurface Ceiling00
• horizontalSurface Floor00
• beam B014, B013,B012, B011
• edge Edge003, Edge002
• edge Edge001, Edge000
• wall Wall007, Wall002
• wall Wall001, Wall000
• column C8,C4, C6, C2
• vertex V8, V7, V6, V5
• vertex V26, V30, V36, V31
• level Level0

All the elements needed to depict Spaces00 (green)
34
Cob Representation (cont)

• Wall007 new wall( V7, V8, 3.0, B014 )
• Wall002 new wall( V6, V7, 3.0, B013 )
• Wall001 new wall( V5, V6, 3.0, B012 )
• Wall000 new wall( V8, V5, 3.0, B011 )
• Slabs10 new slab( Level1, Beams10 )
• Slabs00 new slab( Level0, Beams00 )
• B012 new beam( V5, V6, B014, _ )
• B011 new beam( V8, V5, B013, _ )
• B014 new beam( V7, V8, B012, _ )
• B013 new beam( V6, V7, B011, _ )
• C4 new column( V6, V50 )
• C6 new column( V8, V51 )
• C2 new column( V5, V46 )
• C8 new column( V7, V55 )
• Edge003 new edge( Surfaces003, V7, Edge011 )
• Edge002 new edge( Surfaces002, V6, _ )
• Edge001 new edge( Surfaces001, V5, _ )
• Edge000 new edge( Surfaces000, V8, _ )
• V36 new vertex( V55, C8, 5.0, 5.0, 3.0 )

35
Observations

• Constrained objects represent nicely the
  structure and constraints arising in intelligent
  building representations.
• The model described in this presentation has been
  implemented and works in a predictable way.
• The current approach, even when applied to a
  simple two-level house with five spaces, is still
  tedious and error prone.
• There is a need for a higher-level specification
  from which Cob code can be generated ?
  Component-based Design
• Inconsistency analysis and debugging are very
  important

36
Conclusions and Further Work

• Constrained Objects Constraints Objects
• Applicable in many domains
• Facilitates true visual programming

• Model Analysis and Fault Detection
• Dynamic and Evolving Systems
• Intelligent Visualizations

37
II. Interactive Visualization of OO Programs

• Conventional Execution Model
• data objects and procedure activations are in
  separate spaces.
• Object-Oriented Execution Model
• procedure activations occur inside data
  objects, i.e., objects are execution environments
• Several more criteria for a good visualization
  system for OOPs

38
Binary Search Tree in Java

• class Tree
• public Tree(int n)
• value n
• left null
• right null
• protected int value
• protected Tree left
• protected Tree right

• public void insert(int n)
• if (value n) return
• if (value lt n)
• if (right null)
• right new Tree(n)
• else right.insert(n)
• else if (left null)
• left new Tree(n)
• else left.insert(n)

39
1
Tree
Tree
2
3
Tree
5
6
7
Tree
Tree
Tree
4
Tree
40
1
Tree
Tree
2
3
Tree
5
6
7
Tree
Tree
Tree
4
Tree
41
i

Tree
value
int
left
Tree
i
right
Tree
Tree
Tree
const
proc
insert
j
insert
n
int
k
n
rpdl
insert in Tree
42
Visualization Criteria

• Object as environments
• Multiple View of Objects
• Aesthetic Drawing
• Forward and Reverse Execution
• History of Execution
• Support Run-time Queries
• Use Existing Compiler and Run-time System

43
JIVE Java Interactive Visualization Environment
44
JIVE supports Source Code Highlighting, Break
Points, and Forward as well as Reverse
Stepping of Programs
45
JIVE Interaction Controls
46
(No Transcript)
47
Displaying only the Call Path
48
(No Transcript)
49
Object Diagram without Inherited Objects
50
Minimized Object Diagram
51
Final Object Diagram
52
Final Minimized Diagram
53

• Time
• Sequence
• Diagram
• to capture
• the history
• of method
• calls between
• objects

54
Tree Program with GUI front-end
55
Tree Program with Graphical User Interface
56
(No Transcript)
57
Selective Expansion of Object Diagram
58
Querying the Runtime State
Runtime Query
Which variable has the value 50?
59
Visual Display of Query Result
Object BST2 has the answer
Exact point of assignment
60
Visual Display of Query Result
Variable V in Object BST2 has the value 50!
61
Show all changes to variable left
62
Concluding Remarks

• Diagrams clarify Java semantics
• handles advanced features
• Visualization environment
• pedagogic tool
• visual debugger
• JPDA is key to the implementation
• Some research issues
• Aesthetic drawing
• Efficient reverse stepping

63
Current and Future Work

• Reverse execution and efficient state-saving
• Drawing algorithms
• Visual Queries
• Relationship between programs and diagrams
• Applications in Security
