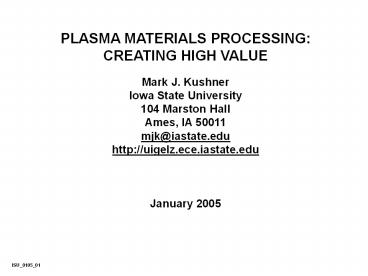

PLASMA MATERIALS PROCESSING CREATING HIGH
VALUE Mark J. Kushner Iowa State University 104
Marston Hall Ames, IA 50011 mjk_at_iastate.edu http/
/uigelz.ece.iastate.edu January 2005
ISU_0105_01
2
ACKNOWLEDGEMENTS

• Dr. Alex V. Vasenkov (now at CFD Research Corp.)
• Dr. Gottlieb Oherlein (U of Maryland)
• Dr. Arvind Sankaran (now at Novellus Systems)
• Dr. Pramod Subramonium (now at Novellus Systems)
• Dr. Rajesh Dorai (now at Varian Semiconductor
  Equipment)
• Mr. Ananth Bhoj
• Mr. Ramesh Arakoni
• Funding Agencies
• 3M Corporation
• Semiconductor Research Corporation
• National Science Foundation
• SEMATECH
• CFDRC Inc.

Iowa State University Optical and Discharge
Physics
ISU_0105_02
3
AGENDA

• Introduction to Plasmas
• Extremes in Physics and Applications
• Plasmas for functionalization of polymers
  (0.05/m2)
• Polymers for selectivity in plasma etching
  (1000/cm2)
• Challenges for adapting commodity processes for
  high value materials.
• Concluding Remarks

Iowa State University Optical and Discharge
Physics
ISU_0105_03
4
PLASMAS 101 INTRODUCTION

• Plasmas (ionized gases) are often called the
  fourth state of matter.
• Plasmas account for gt 99.9 of the mass of the
  known universe (dark matter aside).

• X-ray view of the sun, a plasma.

http//www.plasmas.org/basics.htm
Iowa State University Optical and Discharge
Physics
ISU_0105_04
5
PARTIALLY IONIZED PLASMAS

• A gas (collection of atoms or molecules) is
  neutral on a local and global basis.

• An energetic free electron collides with an atom,
  creating a positive ion and another free electron.

Iowa State University Optical and Discharge
Physics
ISU_0105_05
6
PARTIALLY IONIZED PLASMAS

• The resulting partially ionized gas is not
  neutral on a microscopic scale, but is neutral
  on a global scale.
• An air plasma N2, O2, N2, O2, O-, e where e
  ltlt Neutrals

• A plasma that ionizes itself at the same rate
  electrons and ions neutralize is self
  sustaining.

Iowa State University Optical and Discharge
Physics
ISU_0105_06
7
TECHNOLOGICAL PLASMAS

• Technological plasmas have electron temperatures
  of a few eV and electron densities of 1010-1014
  cm-3. The gas usually remains cool.

Iowa State University Optical and Discharge
Physics
ISU_0105_07
8
ELECTRONS AS AN ENERGY TRANSFER MEDIUM

• Electrons transfer power from the "wall plug" to
  internal modes of atoms / molecules dissociating
  and exciting them, very much like combustion.
• These activated species can them be used to make
  a product.

Iowa State University Optical and Discharge
Physics
ISU_0105_08
9
COLLISIONAL LOW TEMPERATURE PLASMAS
ISU_0105_09
10
PLASMAS FOR MODIFICATION OF SURFACES

• Plasmas are ideal for producing reactive species
  (radicals, ions) for modifying surface
  properties.
• Two of the most technologically (and
  commercially) important uses of plasmas add or
  remove molecules from surfaces to selectively
  achieve desired functionality (mechanical or
  chemical)
• .

• Functionalization of polymers (high pressure)
• Etching for microelectronics fabrication (low
  pressure)

Iowa State University Optical and Discharge
Physics
ISU_0105_10
11
EXTREMES IN CONDITIONS, VALUES, APPLICATIONS
Web Treatment of Films
Microelectronics

• High pressure
• High throughput
• Low precision
• Modify cheap materials
• Commodity

• Low pressure
• Low throughput
• High precision
• Grow expensive materials
• High tech

Iowa State University Optical and Discharge
Physics
ISU_0105_11
12
CREATING HIGH VALUE COMMODITY PROCESSES

• Can commodity processes be used to fabricate high
  value materials?
• Where will, ultimately, biocompatible polymeric
  films fit on this scale? Artificial skin for
  0.05/cm2 or 1000/cm2?

Iowa State University Optical and Discharge
Physics
ISU_0105_12
13
LOW COST, COMMODITY FUNCTIONALIZATION OF POLYMERS
ISU_0105_13
14
SURFACE ENERGY AND FUNCTIONALITY OF POLYMERS

• Most polymers, having low surface energy, are
  hydrophobic.
• For good adhesion and wettability, the surface
  energy of the polymer should exceed of the
  overlayer by ?2-10 mN m-1.

Iowa State University Optical and Discharge
Physics
ISU_0105_14
15
PLASMA SURFACE MODIFICATION OF POLYMERS

• To improve wetting and adhesion of polymers
  atmospheric plasmas are used to generate
  gas-phase radicals to functionalize their
  surfaces.

• Massines et al. J. Phys. D 31, 3411 (1998).

Iowa State University Optical and Discharge
Physics
ISU_0105_15
16
POLYMER TREATMENT APPARATUS

• Filamentary Plasma 10s 200 mm

Iowa State University Optical and Discharge
Physics
ISU_0105_17
17
COMMERCIAL CORONA PLASMA EQUIPMENT

• Sherman Treaters

• Tantec, Inc.

Iowa State University Optical and Discharge
Physics
ISU_0105_18
18
FUNCTIONALIZATION OF THE PP SURFACE

• Untreated PP is hydrophobic.
• Increases in surface energy by plasma treatment
  are attributed to the functionalization of the
  surface with hydrophilic groups.
• Carbonyl (-CO) ? Alcohols (C-OH)
• Peroxy (-C-O-O) ? Acids ((OH)CO)
• The degree of functionalization depends on
  process parameters such as gas mix, energy
  deposition and relative humidity (RH).

Iowa State University Optical and Discharge
Physics
ISU_0105_19
19
PLASMA PRODUCED WETTABILITY

• Increases in wettability with plasma treatment
  result from formation of surface hydrophilic
  groups such as C-O-O (peroxy), CO (carbonyl).

• Polyethylene, Humid-air

• Polypropylene, Air corona

• Akishev, Plasmas Polym. 7, 261 (2002).

• Boyd, Macromol., 30, 5429 (1997).

Iowa State University Optical and Discharge
Physics
ISU_0105_20
20
REACTION PATHWAY
Iowa State University Optical and Discharge
Physics
ISU_0105_21
21
GLOBAL_KIN AND SURFACE KINETICS

• Reaction mechanisms in pulsed atmospheric air
  plasma treatment of polymers have been
  investigated with global kinetics and surface
  models.

• GLOBAL_KIN
• 2-Zone homogeneous plasma chemistry (bulk plasma,
  boundary layer)
• Plug flow
• Multilayer surface site balance model
• Circuit module
• Boltzmann derived f(?)

Iowa State University Optical and Discharge
Physics
ISU_0105_22
22
REACTION MECHANISM FOR HUMID-AIR PLASMA

• Initiating radicals are O, N, OH, H

• Gas phase products include O3, N2O, N2O5, HNO2,
  HNO3.

Iowa State University Optical and Discharge
Physics
ISU_0105_23
23
POLYPROPYLENE (PP) POLYMER STRUCTURE

• Three types of carbon atoms in a PP chain
• Primary bonded to 1 C atom
• Secondary bonded to 2 C atoms
• Tertiary bonded to 3 C atoms
• The reactivity of an H-atom depends on the type
  of C bonding. Reactivity scales as
• HTERTIARY gt HSECONDARY gt HPRIMARY

Iowa State University Optical and Discharge
Physics
ISU_0105_24
24
PP SURFACE REACTION MECHANISM INITIATION

• The surface reaction mechanism has initiation,
  propagation and termination reactions.
• INITIATION O and OH abstract H from PP to
  produce alkyl radicals and gas phase OH and H2O.

Iowa State University Optical and Discharge
Physics
ISU_0105_25
25
PP SURFACE REACTION MECHANISM PROPAGATION

• PROPAGATION Abundant O2 reacts with alkyl groups
  to produce stable peroxy radicals. O3 and O
  react to form unstable alkoxy radicals.

Iowa State University Optical and Discharge
Physics
ISU_0105_26
26
PP SURFACE REACTIONS PROPAGATION / AGING

• PROPAGATION / AGING Peroxy radicals abstract H
  from the PP chain, resulting in hydroperoxide,
  processes which take seconds to 10s minutes.

Iowa State University Optical and Discharge
Physics
ISU_0105_27
27
PP SURFACE REACTION MECHANISM TERMINATION

• TERMINATION Alkoxy radicals react with the PP
  backbone to produce alcohols and carbonyls.
  Further reactions with O eventually erodes the
  film.

Iowa State University Optical and Discharge
Physics
ISU_0105_28
28
BASE CASE ne, Te

• Ionization is dominantly of N2 and O2,
• e N2 ? N2 e e,
• e O2 ? O2 e e.
• After a few ns current pulse, electrons decay by
  attachment (primarily to O2).
• Dynamics plasma-dielectric interaction enable
  more efficient ionization on later pulses.
• N2/O2/H2O 79/20/1, 300 K
• 15 kV, 9.6 kHz, 0.8 J-cm-2
• Web speed 250 cm/s (460 pulses)

Iowa State University Optical and Discharge
Physics
ISU_0105_29
29
GAS-PHASE RADICALS O, OH

• Electron impact dissociation of O2 and H2O
  produces O and OH. O is consumed primarily to
  form O3 OH is consumed by both bulk and surface
  processes.
• After 100s of pulses, radicals attain a periodic
  steady state.

• O

• OH

• N

Iowa State University Optical and Discharge
Physics
ISU_0105_30
30
PP SURFACE GROUPS vs ENERGY DEPOSITION

• Surface concentrations of alcohols, peroxy
  radicals are near steady state with a few J-cm-2.
• Alcohol densities decrease at higher J-cm-2
  energy due to decomposition by O and OH to
  regenerate alkoxy radicals.

• Air, 300 K, 1 atm, 30 RH

• Ref L-A. Ohare et al.,
• Surf. Interface Anal. 33, 335 (2002).

Iowa State University Optical and Discharge
Physics
ISU_0105_31
31
HUMIDITY PP FUNCTIONALIZATION BY OH

• Increasing RH produces OH which react with PP to
  form alkyl radicals, which are rapidly converted
  to peroxy radicals by O2.
• PP-H OH(g) ? PP? H2O(g) PP? O2(g) ?
  PP-O2?
• Alcohol and carbonyl densities decrease due to
  increased consumption by OH to form alkoxy
  radicals and acids.

PP-OH OH(g)?PP-O? H2O(g) , PPO? OH(g)
? (OH)PPO
Iowa State University Optical and Discharge
Physics
ISU_0105_32
32
COMMODITY TO HIGH VALUE

• As the material value increases (cents to dollars
  /cm2?) higher process refinement is justified to
  customize functionalization.

• Control of O to O3 ratio using He/O2 mixtures can
  be used to customize surface functionalization.
• 1 atm, He/O2, 15 kV, 3 mm, 9.6 kHz, 920 pulses.

Iowa State University Optical and Discharge
Physics
ISU_0105_33
33
COMMODITY TO HIGH VALUE

• Additional tuning of functionalization can be
  achieved with sub-mTorr control of water content.

• Small water addition tuning of
  functionalization can be achieved with sub-mTorr
  control of water content.
• H and OH reduce O3 while promoting acid
  formation.

• 1 atm, He/O2/ H2O, 15 kV, 3 mm,
• 9.6 kHz, 920 pulses.

Iowa State University Optical and Discharge
Physics
ISU_0105_34
34
HIGH COST, UTILIZATION OF POLYMERS IN
MICROELECTRONICS FABRICATION
ISU_0105_35
35
PLASMAS IN MICROELECTRONICS FABRICATION

• Plasmas play a dual role in microelectronics
  fabrication.
• First, electron impact on otherwise unreactive
  gases produces neutral radicals and ions.
• These species then drift or diffuse to surfaces
  where they add, remove or modify materials.

Iowa State University Optical and Discharge
Physics
ISU_0105_36
36
PLASMAS IN MICROELECTRONICS FABRICATION

• Second, ions deliver directed activation energy
  to surfaces fabricating fine having extreme and
  reproducible tolerances.

• 0.25 ?m Feature
• (C. Cui, AMAT)

Iowa State University Optical and Discharge
Physics
ISU_0105_37
37
APPLIED MATERIALS DECOUPLED PLASMA SOURCES (DPS)
Iowa State University Optical and Discharge
Physics
ISU_0105_38
38
rf BIASED INDUCTIVELY COUPLED PLASMAS

• Inductively Coupled Plasmas (ICPs) with rf
  biasing are used here.
• lt 10s mTorr, 10s MHz, 100s W kW, electron
  densities of 1011-1012 cm-3.

Iowa State University Optical and Discharge
Physics
ISU_0105_39
39
SELECTIVITY IN MICROELECTRONICS FABRICATION

• Fabricating complex microelectronic structures
  made of different materials requires extreme
  selectivity in, for example, etching Si with
  respect to SiO2.
• Complex features are fabricated by selectively
  removing one material but not another with near
  monolayer resolution.

• Ref G. Timp

• AMD 90 nm Athlon 64

Iowa State University Optical and Discharge
Physics
ISU_0105_40
40
FLUOROCARBON PLASMA ETCHING SELECTIVITY

• Selectivity in fluorocarbon etching relies on
  polymer deposition from dissociation of feedstock
  gases.

• Compound dielectrics contain oxidants which
  consume the polymer, producing thinner polymer
  layers.
• Thicker polymer on non-dielectrics restrict
  delivery of ion energy (lower etching rates).

Iowa State University Optical and Discharge
Physics

• G. Oerhlein, et al., JVSTA 17, 26 (1999)

ISU_010541
41
MODELING OF FLUOROCARBON PLASMA ETCHING

• Our research group has developed an integrated
  reactor and feature scale modeling hierarchy to
  model plasma processing systems.

• MCFPM (Monte Carlo Feature Profile Model)
• Feature scale
• 2- and 3-dimensional
• Fluxes from HPEM
• First principles

• HPEM (Hybrid Plasma Equipment Model)
• Reactor scale
• 2- and 3-dimensional
• ICP, CCP, MERIE, ECR
• Surface chemistry
• First principles

Iowa State University Optical and Discharge
Physics
ISU_0105_42
42
ELECTROMAGNETICS AND ELECTRON KINETICS

• The wave equation is solved in the frequency
  domain using tensor conductivities and sparse
  matrix techniques

• Electron energy transport Continuum and Kinetics

• where S(Te) Power deposition from electric
  fields L(Te) Electron power loss due to
  collisions ? Electron flux
• ?(Te) Electron thermal conductivity tensor
• SEB Power source source from beam electrons
• Kinetic MCS is used to derive
  including e-e collisions using electromagnetic
  and electrostatic fields .

Iowa State University Optical and Discharge
Physics
ISU_0105_43
43
PLASMA CHEMISTRY, TRANSPORT AND ELECTROSTATICS

• Continuity, momentum and energy equations are
  solved for each species (with jump conditions at
  boundaries).

• Implicit solution of Poissons equation

Iowa State University Optical and Discharge
Physics
ISU_0105_44
44
ION/NEUTRAL ENERGY/ANGULAR DISTRIBUTIONS

• MC methods are used to obtain energy and angular
  distributions of particles striking surfaces.

• Ar/C4F8, 40 mTorr, 10b MHz, MERIE

Iowa State University Optical and Discharge
Physics
ISU_0105_45
45
MONTE CARLO FEATURE PROFILE MODEL (MCFPM)

• The MCFPM predicts profiles using energy and
  angularly resolved neutral and ion fluxes
  obtained from equipment scale models.
• Arbitrary reaction mechanisms may be implemented
  (thermal and ion assisted, sputtering, deposition
  and surface diffusion).

• Mesh centered identify of materials allows
  burial, overlayers and transmission of energy
  through materials.

Iowa State University Optical and Discharge
Physics
ISU_0105_46
46
GAS PHASE REACTION MECHANISM Ar/c-C4F8/O2/CO

• To achieve selectivity, gas mixtures are complex
  Ar/c-C4F8/O2/CO.

• Refs
• G. I. Font, J. Appl. Phys 91, 3530 (2002).
• C. Q. Jiao, Chem. Phys. Lett. 297, 121 (1998).

Iowa State University Optical and Discharge
Physics
ISU_0105_48
47
SURFACE KINETICS FLUOROCARBON PLASMA ETCHING
Si/SiO2

• CxFy passivation regulates delivery of precursors
  and activation energy.
• Chemisorption of CFx produces a complex at the
  oxide-polymer interface.
• 2-step ion activated (through polymer layer)
  etching of the complex consumes the polymer.
  Activation scales inversely with polymer
  thickness.
• Etch precursors and products diffuse through the
  polymer layer.

• In Si etching, CFx is not consumed, resulting in
  thicker polymer layers.

Iowa State University Optical and Discharge
Physics
ISU_0105_54
48
PLASMA PROPERTIES ICPs IN Ar/c-C4F8/CO/O2

• In mixtures typically used for dielectric etch
  c-C4F8 has a low mole fraction.
• Ions are dominated by Ar having temperatures
  near 1 eV in presheaths.
• Te has large gradients due to collisional nature
  of plasma.

• Ar/c-C4F8/CO/O2 60/5/25/10, 10 mTorr, 600 W,
  13.56 MHz, 20 sccm.

Iowa State University Optical and Discharge
Physics
ISU_0105_50
49
PLASMA PROPERTIES ICPs IN Ar/c-C4F8/CO/O2

• M- are dominated by F- due to charge exchange
  with CFn- .
• Densities of CmFn are commensurate with CFn.
• Ratios critically depend on power, wall reactions
  and charge exchange with Ar.

• Ar/c-C4F8/CO/O2 60/5/25/10, 10 mTorr, 600 W,
  13.56 MHz, 20 sccm.

Iowa State University Optical and Discharge
Physics
ISU_0105_51
50
MIXTURES Ar/c-C4F8, O2/c-C4F8

• Flux of ions to surface can be tuned by choice of
  additives.
• Addition of Ar to C4F8 produces more ions that
  are on average less chemically reactive.
• Addition of O2 adds oxidizing ions without
  changing fluorocarbon reactivity.
• Te decreases with Ar and O2 as ionization is more
  efficient.

• 10 mTorr, 600 W, 13.56 MHz, 40 sccm.

Iowa State University Optical and Discharge
Physics
ISU_0105_52
51
TEL-DRM Ar / C4F8 / O2 IEADs FOR 2000 W

• Complex gas mixtures produce a large variety of
  ion energy and angular distributions.

• Ar/C4F8/O2 200/10/5 sccm, 40 mTorr, 2000 W, 100
  G

Iowa State University Optical and Discharge
Physics
ISU_0105_53
52
ETCH RATES C2F6, C4F8, CHF3

• Due to small differences in the composition of
  the flux of radicals and polymer, and ion energy
  distributions, etching characteristics differ
  with feedstock gases.

• Experiments Schaepkens et al J. Vac. Sci.
  Technol. A 17, 26 (1999) Oehrlein et al private
  communications

Iowa State University Optical and Discharge
Physics
ISU_0105_55
53
POLYMERIZATION PRODUCES SELECTIVITY

• Highly optimized processes produce nearly
  infinite selectivity. The underlying Si does not
  consume the polymer, and so etches slower.

• 10 mTorr, C2F6.

Iowa State University Optical and Discharge
Physics
ISU_0105_56
54
C4F8/Ar and C4F8/O2

• Larger ionization rates result in larger ion
  fluxes in Ar/C4F8 mixtures which reduces polymer
  thickness.
• With high Ar, the polymer thins to sub-monolayer
  (less deposition, more sputtering). Etch rates
  decrease.
• O2 etches polymer and reduces its thickness. Rate
  has a maximum with O2, similar to Ar addition.

• 40 sccm, 600 W ICP, 20 mTorr, -125 V self-bias

Iowa State University Optical and Discharge
Physics
Li et al, J. Vac. Sci. Technol. A 20, 2052, 2002.
ISU_0105_57
55
POROUS Si FOR LOW-K DIELECTRIC

• As feature sizes decrease and device count
  increases, the diameter of interconnect wires
  shrinks and path length increases.
• Larger RC-delay limits performance.

• Low-dielectric constant materials reduce RC.
• Porous SiO2 (xerogels) have low-k properties due
  to their lower mass density resulting from
  (vacuum) pores.
• Porosities 30-70
• Pore sizes 2-20 nm

• Ref S. Rossnagel, IBM

Iowa State University Optical and Discharge
Physics
ISU_0105_58
56
PROCESSING OF NANOSTRUCTURED MATERIALS

• The opening of pores during etching of porous
  SiO2 results in the filling of the voids with
  polymer, creating thicker layers.
• Ions which would have otherwise hit at grazing or
  normal angle now intersect with more optimum
  angle.

• An important parameter is
• L/a (polymer thickness / pore radius).

• Adapted Standaert, JVSTA 18, 2742 (2000)

Iowa State University Optical and Discharge
Physics
ISU_0105_59
57
PORE FILLING BY POLYMER

• Polymer deposition is activated by low energy
  ions.
• Polymer removal is activated by high energy ions.
• Low energy fluxes penetrate into pores activating
  polymer deposition
• Pore filling locally increases depth of polymer.
• Etching proceeds through a series of break
  throughs, pore-filling, and polymer removal.
• 15 nm, 60 porosity
• ICP CHF3, 6 mTorr, 1400 W

Iowa State University Optical and Discharge
Physics
ISU_0105_60
58
EFFECT OF PORE RADIUS ON HAR TRENCHES
4 nm
16 nm
10 nm

• With increase in radius, thicker polymer layers
  are produced in the pores causing a decrease in
  etch rates.

Iowa State University Optical and Discharge
Physics
ISU_0105_62
59
HAR PROFILES INTERCONNECTED PORES
100
60
0
Interconnectivity

• Higher porosities, larger pores and higher
  interconnectivity, filling of pores produces
  thicker polymer layers and lower etch rates.

Iowa State University Optical and Discharge
Physics
ISU_0105_64
60
EFFECT OF PORE RADIUS ON CLEANING

• Larger pores have poor view angles to ions and
  thicker polymer layers.
• Lower rate of cleaning results.

4 nm
16 nm

• Ar/O299/1, 40 sccm, 600 W, 4 mTorr

Iowa State University Optical and Discharge
Physics
ANIMATION SLIDE
ISU_0105_65
61
THE CHALLENGE COMMODITY PROCESSING FOR HIGH
VALUE MATERIALS
ISU_0105_66
62
THE ROLE OF PLASMAS IN BIOSCIENCE

• Plasmas, to date, have played important but
  limited roles in bioscience.
• Plasma sterilization
• Plasma source ion implantation for hardening hip
  and knee replacements.
• Modification of surfaces for biocompatibility (in
  vitro and in vivo)
• Artificial skin
• The potential for commodity use of plasmas for
  biocompatibility is untapped.

• Low pressure rf H2O2 plasma (www.sterrad.com)

Iowa State University Optical and Discharge
Physics
ISU_0105_67
63
HIGH VALUE PROCESSING - CELL MICROPATTERNING

• PEO - polyethyleneoxide
• pdAA plasma deposited acrylic acid

• Low pressure microelectronics-like plasmas are
  used to pattern selective substrate regions with
  functional groups for cell adhesion.
• These processes have costs commensurate with
  microelectronics high value, high cost.

1Andreas Ohl, Summer School, Germany (2004).
Iowa State University Optical and Discharge
Physics
ISU_0105_68
64
ATMOSPHERIC PRESSURE PLASMAS THE CHALLENGE

• 10,000 square miles of polymer sheets are
  functionalized annually with atmospheric pressure
  plasmas. Cost lt 0.05 /m2
• Low pressure plasma processing technologies
  produce biocompatible polymers having similar
  functionalities. Cost up to 100s /cm2.
• Microelectronic plasma processing produces
  functionality at the nanoscale.
• Can these knowledge bases be combined?
• Can commodity, atmospheric pressure processing
  technology be leveraged to produce high value
  biocompatible films at low cost? The impact on
  health care would be large.

Iowa State University Optical and Discharge
Physics
ISU_0105_69
65
DESCRIPTION OF nonPDPSIM CHARGED PARTICLE,
SOURCES

• Continuity (sources from electron and heavy
  particle collisions, surface chemistry,
  photo-ionization, secondary emission), fluxes by
  modified Sharfetter-Gummel with advective flow
  field.
• Poissons Equation for Electric Potential
• Electron energy equation
• Photoionization, electric field and secondary
  emission

Iowa State University Optical and Discharge
Physics
ISU_0105_71
66
DESCRIPTION OF nonPDPSIM NEUTRAL PARTICLE
TRANSPORT

• Fluid averaged values of mass density, mass
  momentum and thermal energy density obtained in
  using unsteady algorithms.

• Individual fluid species diffuse in the bulk
  fluid.

Iowa State University Optical and Discharge
Physics
ISU_0105_72
67
CAN COMMODITY PROCESSES PRODUCE HIGH VALUE
MATERIALS?

• 2 mm gap, 15 kV pulse, N2/O2/H2O 79.5 / 19.5 /
  1, 1 atm

• Tantec, Inc.

• van Veldhuizen et al

Iowa State University Optical and Discharge
Physics
ISU_0105_73
68
POTENTIAL, ELECTRIC FIELD, CHARGE
Animation Slide

• Pulse is initiated with electron emission from
  tip of cathode.
• Development of plasma streamer deforms potential
  producing large electric field. Pulse is
  terminated with dielectric charging.

• E/N

• Potential

• Charge

• N2/O2/H2O 79.5 / 19.5 / 1, 1 atm,
• 15 kV, 0-15 ns

ISU_0105_74
69
ELECTRON TEMPERATURE, SOURCES
Animation Slide

• Electric field at head of streamer elevates
  electron temperature, producing a transitory wave
  of ionization. 2-body attachment occurs in high
  Te regions 3-body attachment in low Te.

• Net Attachment

• Net Ionization

• Te

• N2/O2/H2O 79.5 / 19.5 / 1, 1 atm,
• 15 kV, 0-15 ns

Iowa State University Optical and Discharge
Physics
ISU_0105_75
70
ELECTRON AND ION DENSITIES
Animation Slide

• Electrons are consumed by 3-body attachment at
  the end of the pulse.

• e

• M

• M-

• N2/O2/H2O 79.5 / 19.5 / 1, 1 atm,
• 15 kV, 0-15 ns

Iowa State University Optical and Discharge
Physics
ISU_0105_76
71
POST PULSE RADICAL DENSITIES

• Radical and ion densities at end of pulse are as
  high as 10s ppm. Temperature rise is nominal due
  to short pulse duration.

• H, OH

• O

• O2(1?)

• N2(A)

• N2/O2/H2O 79.5 / 19.5 / 1, 1 atm,
• 15 kV, 0-15 ns

Iowa State University Optical and Discharge
Physics
ISU_0105_77
72
SURFACE INTERACTIONS ELECTRON DENSITY
2x109- 2x1011
2x1010- 2x1012
? Electrons penetrate surface features on the
polymer to a limited extent due to surface
charging.
? -15 kV, 760 Torr, N2/O2/H2O79.5/19.5/1
e cm-3
MIN (log scale) MAX
1.45 ns
1.5 ns
1.65 ns

2x1011- 2x1013
1x1011- 5x1013
Iowa State University Optical and Discharge
Physics
10 mm
ISU_0105_79
73
SURFACE INTERACTIONS O DENSITY
1x109- 1x1012
5x1010- 5x1013
? Radicals striking the surface penetrate into
the features by diffusion. ? Unlike ions, the
transport of radicals into features is unimpeded
by surface charging
? -15 kV, 760 Torr, N2/O2/H2O79.5/19.5/1
1.5 ns
1.4 ns
4.0 ns
1.65 ns
7.0 ns

O cm-3
MIN (log scale) MAX
10 mm
1x1011- 1x1014
Iowa State University Optical and Discharge
Physics
ISU_0105_80
74
FUNCTIONAL GROUP DENSITIES ON POLYPROPYLENE

• 1 atm, N2/O2/H2O79.5/19.5/1, 1.5 ms, 10 kHz.

Iowa State University Optical and Discharge
Physics
ISU_0105_81
75
FUNCTIONALIZATION OF SCAFFOLDING

• ? Functionalization of scaffolding-like surfaces
  for cell adhesion.
• Can uniformity of functionalization be maintained
  over microscopic and macroscopic scale lengths.
• Use 1 atm, He/O2/H2O mixtures to optimize.

Iowa State University Optical and Discharge
Physics
ISU_0105_82
76
FUNCTIONALIZING PP SCAFFOLDING HIGH O2
(He/O2/H2O 69/30/1)

• High O2 produces O3 and rapid alkoxy formation.
• Reactivity of O3 limits transport and produces
  long- and short-scale nonuniformities.

? 1 atm, He/O2/H2O 69/30/1
Iowa State University Optical and Discharge
Physics
ISU_0105_83
77
FUNCTIONALIZING PP SCAFFOLDING LOW O2
(He/O2/H2O 89/10/1)

• Lower O2 produces less O3 and limits alkoxy
  formation.
• Overall uniformity becomes reaction limited,
  producing smoother functionalization.

? 1 atm, He/O2/H2O 89/10/1
Iowa State University Optical and Discharge
Physics
ISU_0105_84
78
CONCLUDING REMARKS

• Plasmas materials processing spans a vast range
  in value added, from extremely high value
  microelectronics to commodity polymer
  functionalization.
• Development of nanostructured and bio-compatible
  materials using plasmas and their broad
  implementation are largely limited by cost.
• The social benefit to reducing cost of these
  plasma processes would be large .
• The key to creating high value using commodity
  processing is leveraging knowledge bases
  developed in different contexts. That is, working
  at the interfaces between fields.
• Rapid improvement in these knowledge bases will
  enable high values materials (plastic
  microelectronics?) to be produced using commodity
  processes during this decade.

Iowa State University Optical and Discharge
Physics
ISU_0105_85
