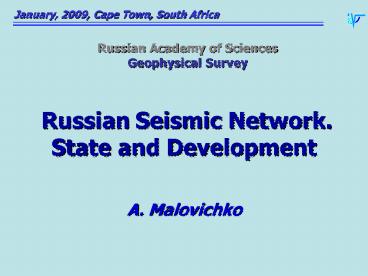

Russian Seismic Network.State and Development
A. Malovichko
January, 2009, Cape Town, South Africa
Russian Academy of Sciences Geophysical Survey
2
January, 2009, Cape Town, South Africa
GS RAS Seismic Network
269 stations
3
January, 2009, Cape Town, South Africa
Number of Seismic Stations in Russian Network
USSR Collapse
Stabilization
Development
GS RAS establishment
Total
Digital
IRIS stations
4
January, 2009, Cape Town, South Africa
2005 - 2006 Reorganization of seismological
observation system of Russian Academy of
Sciences- 7 former independent expeditions were
united in one structurewith main office in
Obninsk
5
January, 2009, Cape Town, South Africa
Geophysical Survey Seismic Network269
stations 244 digital

• Sakhalin-Kurily Department
• 31 stations, included 23 digital (1 broad
  band)
• Northern Osetiya Department
• 12 digital stations
• Dagestan Department
• 17 stations, included 2 digital
• Kola Department
• 5 digital stations (1 broad band and 1 array)
• European Department and Teleseismic Network
  (Obninsk)
• 46 stations, included 44 digital and 2 broad
  band

• Altai Sayan Department SB RAS
• 61 digital stations
• Baikal Department SB RAS
• 23 digital stations (1 broad band)
• Buryatiya Department SB RAS
• 8 digital stations
• Yakutia Department SB RAS
• 19 digital stations (1 broad band)
• Kamchatka Department
• 45 digital stations, included 3 local
  telemetric system and 4 broad band stations
• Magadan Department
• 15 digital stations (2 broad band)

6
January, 2009, Cape Town, South Africa
1. Creation of modern tsunami system at Far
East of Russia
7
January, 2009, Cape Town, South Africa
Creation of modern tsunami system at Far East of
Russia
2007 - 2010
1 backbone station 2 auxiliary station 3
processing center 4 IRIS stations
8
January, 2009, Cape Town, South Africa
Backbone tsunami station Petropavlovsk-Kamchatski
y
9
January, 2009, Cape Town, South Africa
Equipment for backbone station
10
January, 2009, Cape Town, South Africa
Backbone tsunami station Juzno-Sakhalinsk
11
Near RT estimation of the earthquake
parameters in Far East Russia
2008/10/30 015514.9 46.46ºN
153.18ºE H 38 ?? M 5.5
12
January, 2009, Cape Town, South Africa
2. Creation of satellite segment for data
transmission
13
January, 2009, Cape Town, South Africa
50 terminals
14
January, 2009, Cape Town, South Africa
Development of Satellite Communication
Channels in Russian Seismic Network
15 ??????????
1.01.2008 - 15 terminals
15
January, 2009, Cape Town, South Africa
Development of Satellite Communication
Channels in Russian Seismic Network
27 ??????????
1.01.2009 - 27 terminals
16
January, 2009, Cape Town, South Africa
3. Improvement data exchange with regional and
international seismological centers
17
January, 2009, Cape Town, South Africa
Magnitude levels of teleseismic monitoring
18
January, 2009, Cape Town, South Africa
Teleseismic Network used in Alert Survey
(Obninsk)69 stations in near real time regime
(29 Russian 40 foreign)
Main data processing center
27 BB stations - on the territory of Russia,
including 12 IRIS stations, 40 BB stations - of
the Global Seismograph Network (GSN) and IMS
Network
19
January, 2009, Cape Town, South Africa
Number of earthquakes processed in Alert Service
1996 - 2007
20
January, 2009, Cape Town, South Africa
World Seismicity from Seismological Bulletins of
GS RAS 2000-2008
gt 26 500 EQ
Russia
21
January, 2009, Cape Town, South Africa
4. Development seismic instrumentation
22
January, 2009, Cape Town, South Africa
Seismic recorder UGRA
23
January, 2009, Cape Town, South Africa
24
Earthquake in
Chechen Republic 11.10.2008
0906 UTC Ms 5.6
25
Earthquake in
Chechen Republic 11.10.2008
0906 UTC Ms 5.6
Seismic station Grozniy, R 40 km
26
Thank you!
