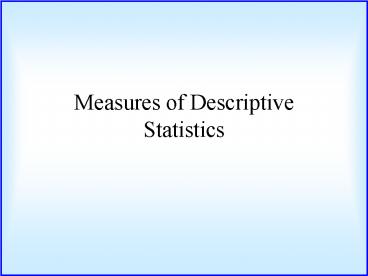

Measures of Descriptive Statistics

1
Measures of Descriptive Statistics
2
Class Objectives

• Objectives Upon completion of this lesson the
  student will be able to
• Describe the different measures of descriptive
  statistics central tendency, variability,
  symmetry and kurtosis.
• Identify the statistic appropriate for each
  measurement scale.
• Present the various descriptive statistics in
  narrative and table formats.

3
Measures of Central Tendency

• Purpose is to report a single score or category
  that best describes a set of observations.
• Determined by the scale of measurement.
• Three common measures are
• Mean
• Median
• Mode
• These measures can be used to
• compare one group to another,
• identify some behavior that is unknown, or
• compare a group with a standard.

4
Mode

• The category or score that occurs most
  frequently.
• Easy to obtain.
• Not very stable.
• A group of scores may have more than one mode.
• Most likely but may not be the majority.

5
Mode Nominal Scale

• Mode

6
Mode Ordinal Scale

• C
• B
• A
• B
• C
• A
• A

B D F B C B A

• A
• B
• A
• D
• D
• A
• A

• Mode A

7
Mode Interval Scale

• 75
• 85
• 90
• 85
• 70
• 95
• 100

85 65 57 80 75 85 90

• 98
• 85
• 92
• 67
• 66
• 90
• 99

• Mode 85

8
Median

• The score below which 50 of the scores fall.
• For raw scores, the median is the middle score
• If there is an even number of scores, the median
  is the midpoint between the two middle scores
• Responds to the number of scores above or below
  it but not how far the scores lie from it.
• Is less sensitive to a few extreme scores.

9
Median Ordinal Scale

• C
• B
• A
• B
• C
• A
• A

B D F B C B A

• A
• B
• A
• D
• D
• A
• A

10
Median Ordinal Scale

• A A A A A A A A B B B B B B C C C D D D F
• 21 scores
• Look for 11th score

11
Median Ordinal Scale

• C
• B
• A
• B
• C
• A
• A

B D F B C B A

• A
• B
• A
• D
• D
• A
• A

• Median B

12
Median Interval Scale

• 75
• 85
• 90
• 85
• 70
• 95
• 100

85 65 57 80 75 85 90

• 98
• 85
• 92
• 67
• 66
• 90
• 99

13
Median Interval Scale

• 57 65 66 67 70 75 75 80 85 85 85 85 85
  90 90 90 92 95 98 99 100
• 21 scores
• Look for 11th score

14
Median Interval Scale

• 75
• 85
• 90
• 85
• 70
• 95
• 100

85 65 57 80 75 85 90

• 98
• 85
• 92
• 67
• 66
• 90
• 99

• Median 85

15
Mean

• The arithmetic average of all scores.
• Calculated by summing all scores and dividing by
  the number of scores.
• The mean is responsive to every score, including
  extreme scores.

16
Mean Interval Scale

• 75
• 85
• 90
• 85
• 70
• 95
• 100

85 65 57 80 75 85 90

• 98
• 85
• 92
• 67
• 66
• 90
• 99

• Mean 82.5

17
Summary Interval Scale

• 75
• 85
• 90
• 85
• 70
• 95
• 100

85 65 57 80 75 85 90

• 98
• 85
• 92
• 67
• 66
• 90
• 99

• Mode 85
• Median 85
• Mean 82.5

18
Descriptive Statistics
19
Measures of Variability

• Determine some indication of the spread or
  dispersion of the group.
• Measures include
• Range
• Variance
• Standard deviation

20
Range

• Exclusive range the difference between the
  largest and smallest score
• For example
• 1, 3, 4, 6,7, 9
• Range 9 - 1 8

21
Semi-Interquartile Range

• Q3 - Q1
• 2
• Q3 75th percentile
• Q1 25th percentile

22
Variance
Mean 76.7
Sum of Squared Deviation 853.4
Deviation score - mean
Squared Deviation deviation deviation
Variance (sum of squared deviation)/no of scores
Variance 121.92
23
Standard Deviation

• Most widely used measure of variability
• Calculated by taking the square root of the
  variance
• Expressed in terms of one standard deviation
  above above the mean
• Value becomes apparent as we understand the
  relationship between standard deviation and the
  normal curve

24
Standard Deviation
Mean 76.7
Sum of Squared Deviation 853.4
Variance 121.92
Standard deviation square root of variance
Standard deviation 11.93
25
Descriptive Statistics
26
Symmetry

• Shape of the distribution
• Measured in terms of the degree to which the
  distribution is asymmetrical.
• A normal curve is symmetrical.
• Any degree of variance from a normal curve is
  skewness, the measure for the shape of
  distribution

27
Symmetry

• Range of 3 (positively skewed) to 3 (negatively
  skewed)
• Positively skewed indicated that scores are
  shifted to the left
• Negatively skewed contains scores shifted to the
  right.
• The value of the skewness indicates the degree to
  which the scores have shifted away from symmetry.

28
Descriptive Statistics
29
Kurtosis

• Measure of how peaked or how flat the curve is
• Concerns the steepness of the curve in the
  vicinity of the mode
• A positive value indicates a curve more peaked
  (leptokurtic) than the normal distribution
• A negative value indicates a curve more flat
  (platykurtic) than the normal distribution

30
Descriptive Statistics
31
Reporting Descriptive Statistics

• APA Style Tables
• Narrative examples

32
Normal Curve
33
Positively Skewed
34
Negatively Skewed
