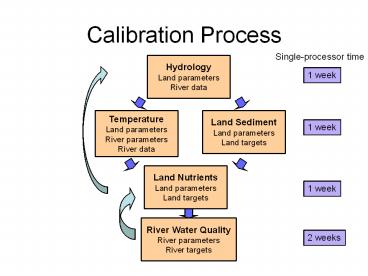

Calibration Process

1
Calibration Process
Single-processor time
Hydrology Land parameters River data
1 week
Temperature Land parameters River
parameters River data
Land Sediment Land parameters Land targets
1 week
Land Nutrients Land parameters Land targets
1 week
River Water Quality River parameters River targets
2 weeks
2
Hydrology Calibration
Calibration Measure
HSPF Parameter
Overall Bias Winter / Summer Balance Baseflow /
Stormflow Balance Quickflow Recession
Index Baseflow Recession Index Peak Bias
land evap LZSN INFILT IRC AGWR INTFW
3
Link Land to River
Basis Percent of basin made up of each Land
Segment Land Segment A is 100 of station 1
50 of station 2 The importance ratio is 21,
so Land Segment A uses 2/3 of the station1
parameters and 1/3 station2 parameters Assigned
orphan counties to siblings
Land Segment A
50k acres
Station 1
Land Segment B
50k acres
Station 2
4
