Optical Molecular Imaging

1

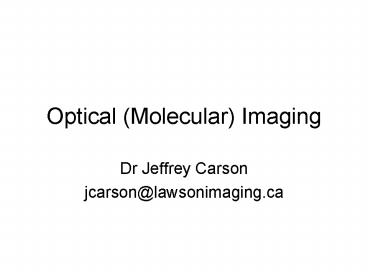

Optical (Molecular) Imaging

• Dr Jeffrey Carson
• jcarson_at_lawsonimaging.ca

2
Outline

• Properties of light
• Using light to analyze molecular composition
• Interaction of light with molecules
• Imaging approaches
• Applications
• Caveats

3
Why Optical Methods?

• Light is non-ionizing and safe (Vis-NIR)
• Very sensitive - single molecule detection)
• Quantitative e.g. haemoglobin, oxygenation
• Particle sizing, e.g. cell nucleus
• Identify and track molecules of interest -
  targeted contrast agents
• Genetic activity bioluminescence and GFP
• Simultaneous detection of multiple contrast
  agents MCA and spectral un-mixing

4
Electromagnetic Spectrum
http//www.britannica.com/ebi/art/print?id70892a
rticleTypeId0
5
Beta-Carotene
www.ch.ic.ac.uk/wiki/index.php/ItBeta_Carotene
6
Haemoglobin
omlc.ogi.edu/spectra/hemoglobin/index.html
7
Beer-Lambert Law
dx
- dI I a c dx
It
I0
I I-dI
It I0 exp(-a c L)
A - log(It / I0) E c L
x
L
E a / 2.303
A - log(T)
8
Multicomponent Analysis A EC
(ET E)-1 ET
C
A
c1
e11
e12
e13
e1m
a1
c2
e11
e21
a2
c3
e31
a3

cn
en1
enm
am
n x 1
n x m
m x 1
9
Jablonski Diagram
http//web.uvic.ca/ail/techniques/Jablonski.jpg
10
Absorbance/Fluorescence SpectraCy7
11
Time scales of fluorescence
12
Optical Imaging Approaches

• Microscopy
• Mesoscopic
• Macroscopic
• Multispectral-hyperspectral

13
Fluorescence Reflectance Imaging

• High sensitivity
• Low cost
• Safe
• Simple to operate

14
Fluorescence Reflectance Imaging (FRI)
CCD camera
Laser output gated to image capture
I
f/1
15
Example of FRI

• Gated ICCD images (/- 50 ns diffuse laser
  illumination)
• nu/nu mouse SCCVII tumour
• Cy7-2Deoxyglucose - EX 680 nm, EM 780 nm
• Hepatic Metabolism/Excretion
• Tumor targeting

Benaron D.A., Parachikov I.H., Maxim P.G., Carson
J.J.L, Bornhop D. Real-Time, Noninvasive Optical
Imaging and Spectroscopic Monitoring of
Pharmacokinetics and Biodistribution In
Vivo. Second Annual Meeting of the Society for
Molecular Imaging, Aug. 10-15, 2003 in San
Francisco.
16
Tracking Cell Lineage
Image courtesy of A. Chamson and D. Hill
17
Quantum Dots (QD)s
www.greenspine.ca/en/quantum_dots.html
18
Benefits of QDs for FRI

• Fabricated from semiconductor materials
• Highest extinction coefficients
• Brightest fluorescence
• Tunable emission properties (NIR)
• Immune to photobleaching
• Biocompatible (capping and conjugation)
• Can be conjugated to targeting molecules

19
Cell tracking with QDs and FRI
Carson, JJL, PG Maxim, N Le, MS Kovacs N
Jones. High sensitivity tumor cell tracking in
vivo using quantum dots. Proceedings of the
International Union of Radio Science (2005).
20
FRI and Stray Light
21
Optical Scatter and FRI
CCD images Capillary tube (1mm ID) 1 µM ICG EX
780nm EM 830nm 1 Intralipid
22
Bioluminescence
www.inspirationline.com/Brainteaser/firefly.htm
earthguide.ucsd.edu/.../acct/lzace/jellyfish.htm
23
Figure 1 Normalized bioluminescence spectra
obtained at pH 7.8 with ATP (solid line) and
2-dATP (dashed line)
Biochemical Journal www.biochemj.org
Biochem. J. (1998) 336, 109-113
24
Bioluminescence Imaging (BLI)

• Firefly luciferase
• substrate D-luciferin, oxygen and adenosine
  triphosphate (ATP) must be present for reaction
  to occur
• Peak wavelength of glow for naturally occurring
  firefly luciferase is at 560 nm
• No excitation necessary

25
Bioluminescence Imaging
Deeply cooled CCD camera
f/1
26
Cell homing monitored with BLI
Molecular Imaging of Bone Marrow Mononuclear Cell
Homing and Engraftment in Ischemic
Myocardium. Ahmad Y. Sheikh, Shu-An Lin, Feng
Cao, Yuan Cao, Koen E.A. van der Bogt, Pauline
Chu, Ching-Pin Chang, Christopher H. Contag,
Robert C. Robbins and Joseph C. Wu. Stem Cells
2007252677-2684
27
BLI
From European Journal of Nuclear Medicine and
Molecular Imaging Vol. 32, No. 14, December 2005
28
BLI Depth Penetration
From European Journal of Nuclear Medicine and
Molecular Imaging Vol. 32, No. 14, December 2005
29
BLI Resolution
From European Journal of Nuclear Medicine and
Molecular Imaging Vol. 32, No. 14, December 2005
30
From European Journal of Nuclear Medicine and
Molecular Imaging Vol. 32, No. 14, December 2005
31
Can Optical Scatter Be Beat?

• Correction algorithms
• Angular domain
• Time domain (Alfano Benaron Wang)
• Limited to small objects, e.g. mice
• 1 cm for ballistic photons
• 4 cm for snake
• Photoacoustic (Oraevsky Kruger Wang)
• Larger objects, e.g. breast
• Suitable for small animal imaging
