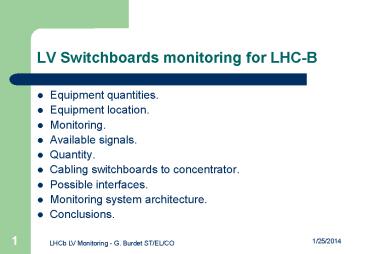

LV Switchboards monitoring for LHC-B

1
LV Switchboards monitoring for LHC-B

• Equipment quantities.
• Equipment location.
• Monitoring.
• Available signals.
• Quantity.
• Cabling switchboards to concentrator.
• Possible interfaces.
• Monitoring system architecture.
• Conclusions.

2
(No Transcript)
3
Equipment quantities.

• Racks in Barracks
• 6 switchboards of 23 drawers (138 racks).
• Racks in Detector side
• 4 switchboards of 23 drawers (92 racks).
• General
• General Services switchboards (EBD) and UPS
  Distribution switchboards (EOD) not considered
  here.

4
Equipment location

• Bad Side
• Radiation level consideration
• Inaccessibility during operation
• Good Side
• No radiation constraint
• Accessible area
• LHCb validates Switchboards and PLC in Good Side
• PLC closer to switchboards to reduce cabling cost
• DIRIS measurement modules can be in switchboards

5
(No Transcript)
6
SEM8
EMD4/8E
EMD3/8E
FIR Ir Is It
FIR Ir Is It
EMT302/8X
EBD1/8X
Is
UX85
EXD1/85
I phase S
UX85
!! TO BE UPDATED !! Supervision of the LV
Distribution for LHCb experiment G. Burdet April
2003
7
Monitoring

• Monitoring of switchboards and drawers.
• Remote control of drawers by experiment.
• States and measurements integrated to ENS.
• Synoptic.
• Fault on electrical trips.
• Alarms on measurements levels.
• Monitoring and Control available to Experiment
  SCADA.

8
Available Signals

• Switchboards
• States
• Input breaker (Opened and Closed)
• 48VDC auxiliary (Missing)
• Measures
• Bus Bars voltages (230V and 37.07VAC nominal)
• Input currents (Ir, Is, It, In CT 1A and 7.07VAC
  nominal)
• Drawers
• States
• Contactor Position (Opened and Closed)
• Breaker Position (Opened) after drawer
  modification.
• Local/Remote switch (LOCAL and Remote)
• Over current trip (SD)
• External Interlock (Activated)
• Measures
• Earth current tore/shunt (7.5A, 7.70VAC nominal)
• Controls
• Contactor Close, Open, Reset external interlock

9
Separate Qc and Qd information Use one of the 2
pins to transmit
Schema of drawer (before modification for breaker
state)
10
Quantity

• Principe of 1 drawer per rack.
• Barracks Side 6 switchboards of 23 drawers 138
  racks
• Detector Side 4 switchboards of 23 drawers 92
  racks

Tableaux Communs Tiroirs ETOR STOR Câbles ETOR STOR TOR
Barracks 6 2   3     12 Commun 18   18
  6   23 7 3   138 Départs 966 414 1380
150 984 414 1398
Detector 4 2   3     8 Commun 12   12
  4   23 7 3   92 Départs 644 276 920
100 656 276 932
Total 250 Total 1640 690 2330
11
Cabling switchboards monitoring
LHCb     Nb Longueur Longueur Câble Câble Connecteurs Connecteurs Câble Câble Connecteurs Connecteurs Total
Tableaux Commun Départs MCA15 Moyenne Totale Pose Câble Raccord. SubD Pose Fourniture Raccord. Fourniture
10 2 23 250 13.50 3375 4.65 3.10 63.24 9.00 15694 10463 31620 4500 62276
Devis réel
Pose/ Raccord. 21978     Fournitures Fournitures 17569 CHF       Total 51635
12
Considered Interfaces

• Studies made for ALICE LV monitoring.
• CIT8.4, CIT8.4A, CIT1.32P HAZEMEYER
• PLC PREMIUM and distributed I/Os on FIPIO
• PLC SIEMENS
• S7-300 centralised
• S7-300 distributed
• S7-400
• PLC PREMIUM and CIT 8.4A HAZEMEYER
• PLC PREMIUM and DIRIS Ap SOCOMEC

13
PLC PREMIUM DIRIS Ap SOCOMEC (1)

• PLC PREMIUM SCHNEIDER
• 64 bits input boards (24VDC polarisation)
• 64 bits output boards with external TeleFast
  relays
• 1 x DIRIS Ap SOCOMEC per switchboard
• Voltage Ur, Us, Ut
• Currents Ir, Is, It, In, maximum current
• Active reactive Power, maximum power
• On/Off incomer interface
• Saves 2 MCA15 cables par switchboard
• Local display
• Best placed in switchboards

14
PLC PREMIUM DIRIS Ap SOCOMEC (2)

• PREMIUM limited to 2048 TOR
• Two PLC sets.
• Modular crates, 64 drawers max each.
• Measures by DIRIS Ap in switchboards
• Reduce cable 25 to 23 per switchboard
• Full measurement
• Local display

CHF
Total PLC Components     61535
Total DIRIS measure unit 17608
Total Crates 7750
PLC Programming 10850
Monitoring Cables 51635
Total LHCb     149378
15
212 TCR
CAS
TDS
OPC CORBA
ENS
2860 SES8 Local SCADA URT500 FE
ModBus on TCP/IP http to embedded WEB Server
UX85
PLC
PLC
MMI
Tableaux BT Detector
Tableaux BT Barracks
16
LHCb Experiment Switchboards Monitoring and
Control
PREMIUM PLCs and DIRIS Ap SOCOMEC
TCP/IP ModBus on TCP/IP WEB Server
Jbus on RS485 To URT500 in SES8 Connected to ENS
UX85
FIPIO inter-PLC and to MAGELIS
PLC2 and 28 drawers
PLC1 and 10 drawers
BUS X
BUS X
64 drawers
64 drawers
BUS X
64 drawers
Jbus RS485
46 drawers in 2 switchboards
17
Conclusions

• Switchboards impose cable/connector type
• PLC close to switchboards reduces cabling costs
• Best compromise is SCHNEIDER PREMIUM PLC for
  digital I/O with SOCOMEC DIRIS Ap for measures
