Introduction to Steady State Metabolic Modeling

1

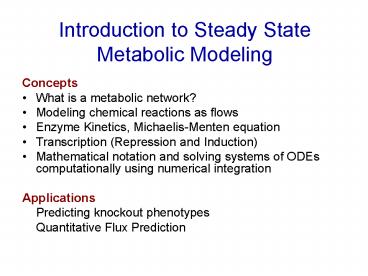

Introduction to Steady State Metabolic Modeling

• Concepts
• What is a metabolic network?
• Modeling chemical reactions as flows
• Enzyme Kinetics, Michaelis-Menten equation
• Transcription (Repression and Induction)
• Mathematical notation and solving systems of ODEs
  computationally using numerical integration
• Applications
• Predicting knockout phenotypes
• Quantitative Flux Prediction

2
Introduction to Steady State Metabolic Modeling

• Reading (this week)
• chapter 17 in text
• Sources
• Notes David Fell talk The Metabolic Network

3
Why Model Metabolism?

• Predict the effects of drugs on metabolism
• e.g. what genes should be disrupted to prevent
  mycolic acid synthesis
• Many infectious disease processes involve
  microbial metabolic changes
• e.g. switch from sugar to fatty acid metabolism
  in TB in macrophages

4
Genome Wide View of Metabolism
Streptococcus pneumoniae

• Explore capabilities of global network
• How do we go from a pretty picture to a model we
  can manipulate?

5
Online Metabolic Databases
Kegg

• Pathlogic/BioCyc

6
Metabolic Pathways
hexokinase

• Metabolites
• glucose
• Enzymes
• phosphofructokinase
• Reactions Stoichiometry
• 1 F6P gt 1 FBP
• Kinetics
• Regulation
• gene regulation
• metabolite regulation

phosphoglucoisomerase
phosphofructokinase
aldolase
triosephosphate isomerase
G3P dehydrogenase
phosphoglycerate kinase
phosphoglycerate mutase
enolase
pyruvate kinase
7
Metabolic Modeling The Dream
8
Steady State Assumptions

• Dynamics are transient
• At appropriate time-scales and conditions,
  metabolism is in steady state

uptake
conversion
secretion
A
B
uptake
Conversion
t
t

• Two key implications
• Fluxes are roughly constant
• Internal metabolite concentrations are constant

9
Metabolic Flux
Input fluxes
Volume of pool of water metabolite concentration
Output fluxes
Slide Credit Jeremy Zucker
10
Reaction Stoichiometries Are Universal

• The conversion of glucose to glucose 6-phosphate
  always follows this stoichiometry
• 1ATP 1glucose 1ADP 1glucose 6-phosphate
• This is chemistry not biology.
• Biology gt the enzymes catalyzing the reaction

• Enzymes influence rates and kinetics
• Activation energy
• Substrate affinity
• Rate constants

Not required for steady state modeling!
11
Metabolic Flux Analysis
Use universal reaction stoichiometries to predict
network metabolic capabilities at steady state
12
Notation

• Capital letter Metabolite or protein
  concentration A, B, or F
• v is a flux, or rate of change between two
  concentration nodes.
• Generally
• S is a substrate
• P is a product
• E is an enzyme

13
Stoichiometry As Vectors

• We can denote the stoichiometry of a reaction by
  a vector of coefficients
• One coefficient per metabolite (convention)
• Positive if metabolite is produced
• Negative if metabolite is consumed

Example
Metabolites A B C D T
Reactions 2A B -gt C C -gt D
Stoichiometry Vectors -2 -1 1 0 T 0
0 -1 1 T
14
Approach

• Step 1 Number fluxes
• Step 2 Set up equations for rate of concentration
  change vs. time
• Step 3 model the individual fluxes depending on
  reaction type

15
A (Very) Simple System

• Reversible reactions are represented by two
  reactions that proceed in each direction (e.g.
  v4, v5)
• Flow conventions positive is flow into a node,
  negative flow out
• Exchange reactions allow for fluxes from/into
  an infinite pool outside the system (e.g. vin and
  vout). These are frequently the only fluxes
  experimentally measured.

16
A (Very) Simple System
17
Flux Model Activity

• Step 1 Number fluxes
• Step 2 Set up equations for rate of concentration
  vs. time
• What is flux for Fructose-6P?
• Glucose-6P

Glucose
Trehalose
v1
v2
v4
UDPG
Glucose-6P
v3
v7
v5
v6
Glycogen
Fructose-6P
ATP
v11
v8
ADP
Fructose-1,6-DP
2 ADP
v12
v9
2 ATP
2 Phosphenolpyruvate
v10
Ethanol
18
The Stoichiometric Matrix (S)
Reactions
Metabolites
19
A Simple System
v1 v2 v3 v4 v5 vin vout
A B C D
-1 0 0 1
0 0 -1 0
1 0 0 0
-1 1 0 0
0 -1 1 0
0 0 1 -1
0 0 -1 1
Exchange Reactions
20
The Stoichiometric Matrix
V is a vector of fluxes through each
reaction Then SV is a vector describing the
change in concentration of each metabolite per
unit time
21
Calculating changes in concentration
What happens if vin is 1 unit per second
We can calculate this with S
dA/dt dB/dt dC/dt dD/dt
A grows by 1 unit per second

22
Some advantages of S

• Chemistry not Biology the stoichiometry of a
  given reaction is preserved across organisms,
  while the reaction rates may not be preserved
• Does NOT depend on kinetics or reaction rates
• Depends on gene annotations and mapping from gene
  to reactions

Depends on information we frequently already have
23
Genes to Reactions

• Expasy enzyme database
• Indexed by EC number
• EC numbers can be assigned to genes by
• Blast to known genes
• PFAM domains

24
Online Metabolic Databases
There are several online databases with curated
and/or automated EC number assignments for
sequenced genomes
KEGG

• Pathlogic/BioCyc

25
From Genomes to the S Matrix
Examples

• Columns encode reactions
• Relationships btw genes and rxns
• 1 gene 1 rxn
• 1 gene 1 rxns
• 1 genes 1 rxn
• The same reaction can be included as multiple
  roles (paralogs)

Gene A
Gene B Gene C
Gene D
Gene E Gene E
Enzyme A
Enzyme B/C
Enyzme D
Enzyme E Enzyme E
R1 R2 R3 R4 R5 R6 R7 R8 R9 R10
-1 0 0 -2 0 0 1 0 1
0 -1 0 -1 0 0 0 1 0
A B C D E F G H I
Same rxn
26
What Can We Use S For?
From S we can investigate the metabolic
capabilities of the system. We can determine
what combination of fluxes (flux configurations)
are possible at steady state
27
The Steady State Constraint

• We have
• But also recall that at steady state, metabolite
  concentrations are constant dx/dt0

28
Activity

• How does an enzyme physically work?
• Reaction sequence/picture
• Kinetics
• Biological example

29
Enzyme Activity

• From Wikipedia, the free encyclopedia
• Enzymes are biomolecules that catalyze (i.e.,
  increase the rates of) chemical reactions. Almost
  all enzymes are proteins.
• In enzymatic reactions, the enzyme converts
  substrates into different molecules, the
  products.
• Almost all processes in a biological cell need
  enzymes to occur at significant rates.
• Like all catalysts, enzymes work by lowering the
  activation energy (Ea or ?G) for a reaction, thus
  dramatically increasing the rate of the reaction.

30
Enzyme Activity
31
Enzyme activation methods

• Lowering the activation energy by creating an
  environment in which the transition state is
  stabilized (e.g. straining the shape of a
  substrateby binding the transition-state
  conformation of the substrate/product molecules,
  the enzyme distorts the bound substrate(s) into
  their transition state form).
• Lowering the energy of the transition state, but
  without distorting the substrate, by creating an
  environment with the opposite charge distribution
  to that of the transition state.
• Providing an alternative pathway. E.g.,
  temporarily reacting with the substrate to form
  an intermediate ES complex.
• Reducing the reaction entropy change by bringing
  substrates together in the correct orientation to
  react.

32
Biological Example

• Reaction catalyzed by orotidine 5'-phosphate
  decarboxylase (converts orotidine monophosphate
  (OMP) to uridine monophosphate (UMP) by
  liberating carbon dioxide)
• If no decarboxylase is present, consumes half of
  its substrate in 78 million years.
• When decarboxylase present, the same process
  takes just 25 milliseconds

33
Enzyme Kinetics

• Based on chemistry and physics
• Mass-action law
• Thermodynamics
• Use established modeling methods

34
Key Variables

• Concentration, S, of a substance S (number of
  molecules, n, of the substance per volume, V)
• Rate, v, of a reaction (change in concentration S
  per time, t)
• Assume a well-stirred homogeneous bioreactor
  (well-shaken-up bag of goo)

35
Law of Mass Action

• When two reactants, A and B, react together at a
  given temperature in a "substitution reaction,"
  the affinity, or chemical force between them, is
  proportional to the active masses, A and B,
  each raised to a particular power

Simplified
36
Example

• Reaction
• Rate Equation
• Net rates n , units M.s-1
• Kinetic or rate constants, k, units M.s-1
• Concentrations, moles/liter

37
General Mass Action Law

• Substrate concentrations, Si
• Product concentrations, Pj
• Molecularities for the reaction, mi and mj

38
Equilibrium

• Forward and backward rates are the same

39
Concentration dynamics
40
Thermodynamics

• Looks at the energy exchange and balance in
  systems and entropy (a measure of the
  unavailability of a systems energy to do work
  and the disorder of molecules in a system
• Three laws
• Energy conservation
• Process occurs only if increases entropy of a
  system
• As temperature approaches absolute zero, the
  entropy of a system approaches a constant
  minimum.

41
Entropy and Free Energy

• Entropy hard to measure
• Gibbs Free energy energy capable of carrying out
  work under constant pressure and temperature
  conditions.
• Change in free energy
• For a reaction

42
Thermally unstable, Equilibrium, Stable
43
Enzyme Activity
44
Michaelis-Menten Kinetics
Image Tom Vickers

• Enzyme not used up
• Based on the law of mass action

45
Enzyme Rates

• Depend on solution conditions and substrate
  concentration.
• Conditions that denature the protein abolish
  enzyme activity, such as high temperatures,
  extremes of pH or high salt concentrations
• Raising substrate concentration tends to increase
  activity.

46
Michaelis-Menten Saturation Curve

• To find the maximum speed of an enzymatic
  reaction, the substrate concentration is
  increased until a constant rate of product
  formation is seen.
• As substrate concentration increases, more and
  more of the free enzyme is converted into the
  substrate-bound ES form.
• At the maximum velocity (Vmax), all the enzyme
  active sites are bound to substrate, and the
  amount of ES complex total amount of enzyme
• The amount of substrate needed to achieve a given
  rate of reaction is given by the Michaelis-Menten
  constant (Km), the substrate concentration
  required for an enzyme to reach one-half its
  maximum velocity.
• kcat, is the number of substrate molecules
  handled by one active site per second.

V
S
47
Michaelis-Menten Kinetics

• Start with the flows

Overall flow
v
v2
Image Tom Vickers
48
Michaelis-Menten Kinetics

• From the Law of Mass Action

k1
k-1
k2
Image Tom Vickers
49
Michaelis-Menten Kinetics

• From the Law of Mass Action

k1
k-1
k2
Image Tom Vickers
50
Assumptions

• Quasi-equilibrium assumption
• Time to create ES (complex) is much faster than
  product creation
• Quasi-Steady State (Briggs and Haldane, 1925)
• Period in reaction where ES concentration is
  constant
• Only makes sense when SgtgtE

51
Simplify equations

• Use quasi-steady state
• Also, recall that the total amount of enzyme, E,
  is not used up

52
Apply total enzyme constraint and quasi steady
state
53
After, Applying enzyme constraint and quasi
steady state
This gives the overall reaction rate, v
54
Simpler form
Michaelis Constant, For quasi-equilibrium
Maximum velocity for the reaction
55
(No Transcript)
56
Steps for finding rate equations

• Draw a diagram with concentrations of key
  substrates, products and intermediate complexes
• Write down the concentration rates of change
  using flows
• Use the law of mass action to get flows with
  respect to the kinetic rate constants

57
Simplifying assumptions and constraints

• Sum of enzyme (both free and in complexes) is a
  constant, Etotal
• Apply quasi-steady state assumption for n-1
  enzyme species (12 give n algebraic equations)
• Overall reaction rate is equal to rate of product
  formation

58
in silico Deletion Analysis
wild-type
mutant
Gene knockouts modeled by removing a reaction
59
Regulation by protein interaction
60
Competitive Inhibition
Uncompetitive Inhibition
Partial Inhibition
Noncompetitive Inhibition
61
Analysis

• Enzyme is conserved
• Overall reaction rate is equal to rate of product
  formation

62
Other types of Inhibition

• Irreversible binding of inhibitor to enzyme
  active site
• Substrate Inhibition after a certain
  concentration, S is reached, ESS is formed which
  prevents product formation
• Reversible if second substrate can be released
• Inhibition by binding inhibitor to substrate

63
Ligands to Proteins

• Ligand molecule that binds to a protein
• Single binding site

64
Cooperativity

• If protein has several binding sites, then
  interactions get more complex
• Positive cooperativity can make binding easier
  for the substrate
• Negative decreases affinity of protein to other
  ligands

65
Positive Homotrophic cooperativity

• protein with multiple identical binding sites
• Look at dimerized protein, E2.

66
Overall rate
n3

• n is the number of binding sites

n2
n1
67
Interpreting Array Data in Metabolic Context
Clustering, GSEA
Kegg, PathwayExplorer
