Title: Chapter 2, Microfabrication Electronics Manufacturing


1

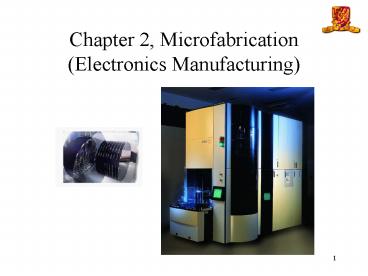

Chapter 2, Microfabrication (Electronics
Manufacturing)
2
Learning Objectives
  • Be able to describe the basic processes of
    microfabrication
  • Be able to explain the principles of
    photolithography.
  • Be able to describe the basic mechanisms of the
    additive processes, including relative
    comparisons among them.
  • Physical Vapor Deposition (evaporation,
    sputtering)
  • Chemical Vapor Deposition
  • Be able to describe the basic mechanisms of the
    subtractive processes, including relative
    comparisons among them.
  • Wet Etching (isotropic, anisotropic)
  • Dry Etching (physical, chemical,
    physical-chemical)
  • Be able to describe the process of bonding and
    packaging

3
What is LIGA?
  • LIGA is a fabrication process for high aspect
    ratio microstructures consisting of three major
    process steps.
  • X-ray lithography (LIlithographie) to generate
    primary microstructures.
  • (DXRLdeep X-ray lithography,
    UDXRLultra-deep X-ray lithography)
  • Electroplating/Electrodeposition (GGalvanik) to
    produce microstructures in metal.
  • Molding (AAbformung) to batch produce secondary
    microstructures in polymers, metals, ceramics

4
Brief History of LIGA
  • Electrodeposition and X-ray lithography
  • Romankiw et al at IBM, 1975.
  • Adding molding
  • Ehrfeld et al at KfK, 1982.
  • In Germany, LIGA was initially independent from
    semiconductor industry.
  • Guckel (U. Wisc) integrated LIGA with existed
    semiconductor industry so that LIGA becomes one
    major micro fabrication process.
  • Today, more and more prototypes have been
    fabricated. And some LIGA companies have been
    founded and provided professional services to
    users.

5
Why Is LIGA Interesting?
  • Very high aspect ratio structures can be achieved
  • Height(typical) 20-500 µm, this can not be
    achieved by state of art silicon surface
    micromachining
  • Have more material selectivity in final products
  • Could be metal, polymer, and even ceramics.
  • Vertical and better surface roughness in sidewall
  • Vertical slopelt1µm/mm,
  • Surface roughness 0.03-0.05 µm(max. peak to
    valley)
  • It can be applied in both MEMS and traditional
    precision manufacturing.

6
LIGA ProcessX-ray lithography
7
LIGA ProcessElectroplating
8
LIGA ProcessMolding
9
LIGA Materials
  • Polymers
  • Used in X-ray lithography period. The materials
    must be able to allow photochemical reaction
    under exposure under X-ray
  • Thick PMMA is a popular choice
  • Metals
  • Used in electrodeposition phase to form a mould
  • Nickel is a popular choice.
  • Polymer again
  • Used in molding period
  • The final LIGA product is usually made of polymers

10
LIGA Applications
high aspect ratio microstructures
Micro turbine rotor, KfK
11
LIGA Applications
Spinneret Capillary, IMM
12
Problem Associated with LIGA
  • You need to buy a big X-ray source
  • expansive
  • Need long time to exposure and develop
  • Time consuming (several days)
  • Other compete technology are rapidly catching up
  • LIGA-Like
  • Si DRIE technology
  • The X-ray lithography process can be replaced to
    reduce the cost.

13
LIGA-Like Process Overview
14
DRIE System
Plasmalab System 100 Modular ICP-RIE Etching
System
Oxford Instruments
15
Overview of DRIE
  • Reactive ion etching (RIE) is a dry etching
    method which combines plasma etching and ion beam
    etching principles.
  • Choice for most advanced product line
  • Its not well suitable for deep etching (gt10µm)
  • Inductively coupled plasma (ICP) reactors have
    been introduced for silicon RIE process leading
    to the deep reactive ion etching (DRIE)
    technique.
  • Higher plasma density
  • Higher etching rate, either for anisotropic and
    isotropic etching
  • Higher aspect ratio (AR)
  • Reduction of parasitic effects

http//www.ipe.cuhk.edu.hk/
16
DRIE Applications
Use ICP etcher to create deep etching in silicon
substrate
http//www.ipe.cuhk.edu.hk/
17
DRIE Applications
  • The silicon structures were part of an innovative
    escape mechanism of the Ulysse Nardin "Freak"
    watch. ( CSEM SA, IMT)
  • Silicon parts
  • Lighter
  • Lower friction coefficient
  • Insensitive to magnetic fields

18
Silicon Review
  • In a perfect crystal, each of silicons four
    outer electrons form covalent bonds, resulting in
    poor electron mobility (i.e. insulating)
  • Doping silicon with impurities alters electron
    mobility (i.e. semiconducting)
  • Extra electron (N-type, with phosphorous, for
    example)
  • Missing electron (P-type, with boron, for
    example)

19
Silicon Circuits
  • Silicon makes the transistors
  • Transistors can be made to very large scale
    integration (VLSI) and ultralarge scale
    integration (ULSI)

A Pentium 4 process contains 42 million
transistors
20
Silicon Micromachines
  • The other application is micromachines, also
    called the microelectricmechanical system (MEMS),
    which have the potential of making the computer
    obsolete
  • The micromachines include
  • Fuel cells
  • DNA chips

21
Microfabrication
  • Silicon crystal structure is regular,
    well-understood, and to a large extent
    controllable.
  • It is all about control the size of a transistor
    is 1 ?m, the doping must therefore less than have
    of that
  • How to control?

22
Microfabrication Techniques
23
Process of Microfabrication
Single crystal growing
Wafer slicing
Film deposition
Oxidation
Diffusion
Ion implantation
Etching
Lithography
Metallization
Bonding
Packaging
Testing
24
Crystal Growing
10 ?m/s
  • Silicon occurs naturally in the forms of silicon
    dioxide and various silicates and hence, must be
    purified
  • The process of purifying silicon
  • Heating to produce 95 98 pure polycrystalline
    silicon
  • Using Czochralski (CZ) process to grow single
    crystal silicon

1 rev/s
Liquid silicon
Illustration of CZ process
25
Crystal Growing
26
Wafer Slicing
  • This step includes
  • Slice the ingot into slices using a diamond saw
  • Polish the surface, and
  • Sort

27
Film Deposits
  • This step is used to add a special layer on the
    surface of the silicon for masking
  • Many types of films are used for insulating /
    conducting, including polysilicon, silicon
    nitride, silicon dioxide, tungsten, and titanium.
  • Films may be deposited using various method,
    including
  • Evaporation
  • Sputtering
  • Chemical Vapor Deposition (CVD)

28
Film Deposits
  • The process of CVD
  • Continuous, atmospheric-pressure CVD
  • Low-pressure CVC

29
Photolithography
  • Photolithography is a process by which an image
    is optically transferred from one surface to
    another, most commonly by the projection of light
    through a mask onto a photosensitive material.
  • Photoresist is a material that changes molecular
    structure when exposed to radiation (e.g.
    ultraviolet light). It typically consists of a
    polymer resin, a radiation sensitizer, and a
    carrier solvent.

30
Photolithography
  • Adding a photoresist layer on the wafer
  • A photomask is typically manifested as a glass
    plate with a thin metal layer, that is
    selectively patterned to define opaque and
    transparent regions.

31
Photolithography
  • A positive photoresist is weakened by radiation
    exposure, so the remaining pattern after being
    subject to a developer solution looks just like
    the opaque regions of the mask

A negative photoresist is strengthened by
radiation exposure, so the remaining pattern
after being subject to a developer solution
appears as the inverse of the opaque regions of
the mask.
32
Etching Mask for a Mask
Reusable mask
Photoresist coating
Functional mask
  • The mask must withstand the chemical environment.
  • A typical mask/substrate combination is oxide on
    silicon.
  • Resilient masks are typically grown or deposited
    in whole films, and must therefore be patterned
    through a photosensitive mask

33
Dry Etching Mechanisms
  • Physical
  • Removal based on impact momentum transfer
  • Poor material selectivity
  • Good directional control
  • High excitation energy
  • Lower pressure, lt100 mTorr
  • Chemical
  • Highest removal rate
  • Good material selectivity
  • Generally isotropic
  • Higher pressure, gt100 mTorr
  • Physical/Chemical
  • Good directional control
  • Intermediate pressure, 100 mTorr

34
Isotropic Wet Etching
  • Etch occurs in all crystallographic directions at
    the same rate.
  • Most common formulation is mixture of
    hydrofluoric, nitric and acetic acids (HNA HF
    HNO3 CH3COOH).
  • Etch rate may be very fast, many microns per
    minute.
  • Masks are undercut.
  • High aspect ratio difficult because of diffusion
    limits.
  • Stirring enhances isotropy.
  • Isotropic wet etching is applicable to many
    materials besides silicon

35
Anisotropic Wet Etching
  • Etch occurs at different rates depending on
    exposed crystal
  • Usually in alkaline solutions (KOH, TMAH).
  • Heating typically required for rate control (e.g.
    gt 80 oC).
  • Etch rate typically 1 µm/min, limited by
    reactions rather than diffusion.
  • Maintains mask boundaries without undercut.
  • Angles determined by crystal structure (e.g.
    54.7º).
  • Possible to get perfect orthogonal shapes
    outlines using 1-0-0 wafers.

36
Etching a Comparison
  • ANISOTROPIC
  • Predictable profile
  • Better depth control
  • No mask undercutting
  • Possibility of close feature arrangement
  • ISOTROPIC
  • Wide variety of materials
  • No crystal alignment required
  • May be very fast
  • Sometimes less demand for mask resilience

Multiple layers are common
37
Etching a Comparison
38
Ion implantation
  • Ion implantation is used to alter the electrical
    characters of the silicon in specific regions.
  • The process

39
Ion implantation
  • The main disadvantage is that it can only process
    a wafer at a time
  • Diffusion

40
Bonding and Packaging
  • Wires (?25 ?m) are bonded to package leads
  • The bond wires are attached using
    thermocompression, ultrasonic, or thermosonic
    techniques

41
Bonding and Packaging
  • Packaging is done by surface mount technology
