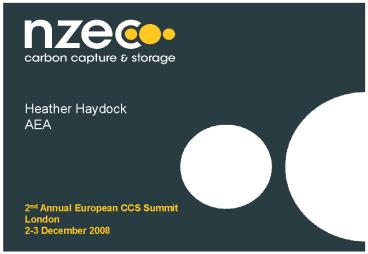

Heather Haydock

1

Heather Haydock AEA
2nd Annual European CCS Summit London 2-3
December 2008
2
Near Zero Emissions from Coal(NZEC)

• A collaborative project between Chinese and UK
  experts to
• build capacity in China to determine the best
  options for carbon dioxide capture, transport and
  geological storage and
• examine the potential for the development and
  demonstration of CCS technology in China and its
  deployment in the future.

3
Background

• EU-China Summit (Sept 2005) declaration on
  Climate Change Energy
• to achieve the following co-operation goals
  by 2020 To develop and demonstrate in China and
  the EU advanced, near-zero emissions coal
  technology through carbon capture and storage
• Agreement followed by two complementary MoU with
  associated projects
• China-UK MoU (Dec 2005) UK NZEC Phase 1
• China-EC MoU (Feb 2006) COACH

4
Whos Involved?
Now DECC

• Funded by UK Government
• China Government lead MOST
• Management team
• AEA on UK side
• ACCA21 in China
• Partners in academia and industry
• UK - 7 organisations
• China - 18 organisations

5
Phased Approach
Assessment stage complete by late 2009
Explore options for CCS with coal fired power in
China
Phase 1
Definition stage 1-2 years by 2010-11
Detailed design of identified project(s)
Phase 2
Execution stage 3-4 years by 2014
Construct and operate demonstration project
Phase 3
6
Phase 1 Objectives

• Enable knowledge transfer between China and UK
• Model future energy requirements of China, taking
  account of CCS technology
• Produce case studies of potential carbon capture
  technology
• Build capacity in China for evaluation of CO2
  storage potential
• Identify potential sites for geological storage
  of CO2
• Develop a technical and policy level roadmap for
  CCS

7
Work Packages

• WP1 Knowledge Sharing Capacity Building
• WP2 Future Energy Technology Perspectives
• WP3 Case Studies for Carbon Capture
• WP4 Carbon Storage Potential
• WP5 Policy Assessment Roadmap

8

WP1 Knowledge Sharing Capacity
Building AEA and ACCA21
9
WP1 Objectives

• To communicate the activities and findings of the
  project
• To increase knowledge and skills regarding carbon
  capture and storage in China
• Target audiences
• Academic community
• Industry
• Policy-makers
• General public

10
WP1 Activities

• Websites
• Newsletter (register for mailing list on website)
• Publications results summaries technical
  papers reference book for non-technical
  audience training materials
• Events interim workshop Oct 08, final workshop
  Nov 09
• UK studentships for five Chinese PhD students

11

WP2 Future Energy Technology Perspectives 3E
Research Institute and AEA
12
WP2 Objectives

• To provide a perspective on the potential future
  energy technologies for China
• To assess energy demand and the main point
  sources of CO2 in a selected province (Jilin)
• To assess the potential role of CCS to reduce CO2
  emissions

13

• Example Illustrative MARKAL output
• (UK electricity generation, 80 CO2 reduction)

14

• Example Analysis of historical data from OECD
  countries to inform energy efficiency projections
  for China

15

• Example Energy Service Demand selected
  industry sectors

16
WP2 Next Steps

• Consolidate current research results
• Identify large potential emission sources in
  Jilin province

• Input both energy service demand projection
  results and technology assessment results into
  China MARKAL model
• Generate future energy and carbon emission
  scenarios
• Assess role of CCS in mitigating carbon emissions

17

WP3 Case Studies for Carbon Capture Imperial
College London, GreenGen, IET China Academy of
Sciences
18
WP3 Objectives

• To identify the techno-economic characteristics
  of potential carbon capture technologies based on
  Chinas specific conditions
• To assess the role (short, mid or long-term) of
  potential capture options for future deployment
• To recommend preferred options for a CCS
  demonstration project in China

19
WP3 Case Studies
Oxyfuel
OX1 New build, capture-ready 800 MW
OX2 Retrofit 350 MW
Post-combustion
PC1 New build
PC2 Capture ready retrofit
PC3 Supercritical, chemical absorption membrane
PC4 Options for existing power plant
Pre-combustion
GS1 IGCC capture GreenGen gasifier
GS2 Polygeneration capture BP-Tsinghua
gasifier
GS3 IGCC capture Shell gasifier
GS4 Polygeneration capture Shell gasifier
20

WP4 Carbon Storage Potential British
Geological Survey and China University of
Petroleum
21
WP4 Carbon Storage Potential

• Objectives
• Build capacity in China for evaluating storage
  potential and performing first stage site
  characterisation
• Estimate the future potential for CO2 storage
• Map CO2 sources and potential sinks
• Tasks
• Regional basin assessments of storage potential
  for EOR, ECBM and saline formations
• Site-selection assessments for demonstration of
  storage
• GIS-based decision support tool

22
(No Transcript)
23

• Saline formations
• Songliao Basin
• As part of EOR operations
• Jilin and Daqing oilfields
• Jiangsu oilfield

• As part of enhanced coal bed methane production
  in Qinshui Basin

24
Potential Storage SitesNZECCOACHGeoCapacity
25
WP4 Preliminary findings

• Jilin, Daqing and Jiangsu oilfields offer
  variable potential for storage
• Some storage potential as niche opportunities for
  CO2-EOR, especially in Jilin and Daqing
• Small pilot CO2-EOR projects already being
  undertaken
• Potential for a small-scale pilot demonstration
  of CCS
• Theoretical calculations suggests that saline
  aquifer could offer very large storage
  capacities, however
• Based on very low data density (concentrated
  around oilfields)
• Further primary data acquisition needed
• Specific field geology likely to be complex

26

WP5 Policy Assessment Roadmap AEA and ACCA21
27
WP5 Objectives

• To identify the non-technical barriers to the
  widespread adoption of CCS technologies in China
• To explore the short-term options for a CCS
  demonstration plant (by 2015)
• To identify options for the longer-term
  deployment of CCS in Chinas power sector

28
WP5 Activities

• Draw on results from other work packages
• Socio-economic modelling
• Stakeholder consultation
• Close co-operation with COACH, STRACO2
• Development of technology policy roadmap

29
WP5 Integrated Assessment
30
Communicating Findings
Two web sites www.nzec.info Project
website Dual language www.ccschina.info Resource
for CCS in China Awaiting approval
31

Thank you for your attention
Heather Haydock AEA heather.haydock_at_aeat.co.uk
