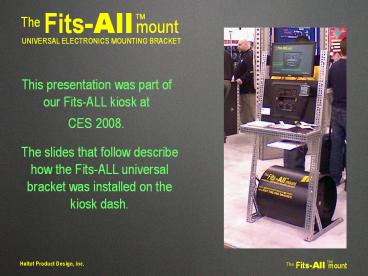

This presentation was part of our Fits-ALL kiosk at

1
This presentation was part of our Fits-ALL kiosk
at CES 2008.
The slides that follow describe how the Fits-ALL
universal bracket was installed on the kiosk dash.
2
-
3
Any device, bolted to any dash, WITH NO VISIBLE
HOLES!
4
See, No holes, No glue residue, Just a
good-as-new dash!
That can be removed, WITHOUT LEAVING A TRACE!
5
So, how can just ONE bracket, mount ANY
dash-mount-able device, to ANY dash location,
on ANY vehicle dashboard?
It will take less than 2 minutes to find out, so
please stay tuned.
6
PULL here
PULL here
FIRST, remove dash trim panel, and fold it down.
Go ahead, gently pull the dash trim panel out,
and fold it down!
Thank you!
7
The Fits-All can be modified to fit almost
anywhere on the dash using the included
Prototyping Templates.
Mounting locations can now be found INSIDE the
dash.
8
Prototyping Template
Find a good location for the bracket, usually
next to the edge of the dash trim panel.
Bend and cut the Prototyping Template to line-up
with available screws and mounting surfaces.
9
Transfer the bend and cut line to the bracket.
Position the Metal Benders 1/16 on either side
of the bend line.
The bracket in now easily bent, and adjusted,
even while sitting in the vehicle.
Continue until the bracket matches the
Prototyping Template.
10
Modified Fits-All mount
Install the Bracket that has been modified to
match the Template.
11
Replace the trim panel and you are ready to mount
your device.
Please replace the trim panel now.
Thank you!
12
Your new device may now be attached using its
mounting cradle.
13
Thank you for your interest in our product. See
the innovative product package that includes 2
Prototyping Templates. More information can be
found on the Product page of our web
site www.haltof.com
A .pdf file of the Fits-ALL brochure is also
available. Thanks again for your time.
Click on this slide to see the presentation again.
