Title: File System Framework 1


1

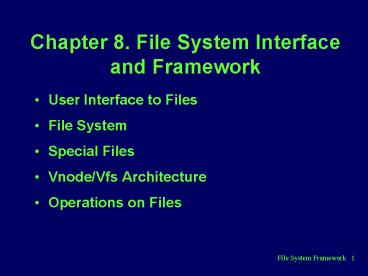

Chapter 8. File System Interface and Framework
  • User Interface to Files
  • File System
  • Special Files
  • Vnode/Vfs Architecture
  • Operations on Files

2
User Interface to Files
  • Files
  • Directories
  • File Descriptors
  • File System

3
Files and Directories
  • Files
  • logically a container for data
  • Operations name, organize, control access
  • Byte-stream access
  • Directories
  • tree-structured
  • entry for a file is called hard link
  • The name is not a attribute of the file
  • Symbolic link

4
Operations on Directories
  • First introduced in 4BSD, now support by SVR4

dirp opendir (const char filename) direntp
readdir (dirp) rewinddir(dirp) status
closedir (dirp) struct dirent ino_t
d_ino / inode number / char
d_nameNAME_MAX1 / null-terminated filename
/
5
File Attributes
  • Attributes are store not in the directory entry,
    but in an on-disk structure called inode
  • File type
  • directories, FIFOs, Symbolic links, special files
  • Number of hard links to the file
  • File size in bytes
  • Device ID

6
File Attributes (cont)
  • inode number
  • a single inode associated with each file
  • unique identification of a file
  • User and Group IDs of the owner of the file
  • Timestamps
  • least access
  • last modified
  • attributes were last changed

7
File Attributes (cont)
  • Permissions and mode flags
  • Permissions read, write, execute
  • People owner, groups, others
  • mode flags suid, sgid, sticky
  • sticky bit requests the kernel to retain the
    program image in the swap area after execution
    terminates

8
File Descriptors
  • fd open (path, oflag, mode)
  • path absolute or relative pathname
  • oflag read, write, read-write, append
  • file descriptor is a per-process object
  • process passes the file descriptor to I/O related
    system calls
  • The kernel uses the descriptor to quickly locate
    the open file object and other data structures
    associated with the open file
  • duplicate a descriptor
  • dup( ), dup2( )

9
File Descriptors (cont)
offset
E.g. A file is opened twice
fd1
offset
fd2
File descriptors
Open file objects
File
E.g. Duplicate a descriptor
fd1
offset
fd2
Open file objects
File descriptors
File
10
File I/O
  • File I/O
  • e.g. nread read (fd, buf, count)
  • Scatter-Gather I/O
  • readv moving data from the file into multiple
    buffers in user space
  • writev composes a single request that collect
    the data from all the packets
  • e.g. nbytes writev (fd, iov, iovcnt)

11
Scatter-Gather I/O
struct uio
uio_iovec uio_iovcnt 3 uio_offset ...
File on disk
process address space
struct iovec
12
File Systems
  • root file system
  • system root directory
  • mounting
  • s5fs, FFS by mount table
  • modern UNIX virtual file system list
  • logical disks
  • each file system is fully contained in a single
    logical disk
  • one logical disk may contain only one file system

13
Mounting File System
fs0
/
usr
sys
dev
etc
bin
fs1
/
local
users
adm
bin
14
Special Files
  • UNIX file system
  • generalization of the file abstraction to include
    all kinds of I/O related objects
  • FIFOs mknod( ) system call
  • Pipes pipe( ) system call
  • BSD uses sockets to implement a pipe
  • SVR4 uses STREAMS
  • Symbolic links (v.s. Hard links)

15
Hard Links
  • Limitations
  • SVR3, 4.1BSD support hard links only
  • may not span file system
  • creating hard links to directories is barred
    except to the superuser
  • cycles in the directory tree may affect du( ) or
    find( )

link1
file1
16
Symbolic Links
  • Is a special file that points to another file
    (the linked-to file)
  • Data portion of the special file contain the
    pathname of the linked-to file
  • Pathname traversal routine recognizes symbolic
    links and translated them to obtain the name of
    the linked-to file

17
Vnode/Vfs Architecture
  • Objectives
  • support several file systems
  • The users is presented with a consist view of the
    entire file tree and need not be aware of the
    difference in the on-disk representations of the
    subtrees
  • support for sharing file over a network
  • allow vendors to create their own file system
    types and add them to the kernel in a modular
    manner

18
Overview of Vnode/Vfs
  • Vnode (virtual node)
  • represents a file in the kernel
  • Vfs (virtual file system)
  • represents a file system
  • v_data, v_op fields in vnode struct
  • filled in when the vnode is initiated (open( ) or
    create( ) system calls)
  • e.g.
  • define VOP_CLOSE(vp, )(((vp)-gtv_op-gtvop_close)
    )(vp, )

19
Vnode Abstraction
data fields (struct vnode)
v_count v_data v_type
v_op v_vfsmountedhere . . .
file-system- dependent private data
virtual functions (struct vnodeops)
vop_open vop_lookup vop_read
vop_mkdir vop_getattr . . .
file-system-dependent implementation of vnodeops
functions
utility routines and macros
vn_open VN_HOLD vn_link VN_RELE . .
.
20
Vfs Abstraction
data fields (struct vfs)
vfs_next vfs_data vfs_fstype
vfs_op vfs_vnodecovered ...
file-system- dependent private data
virtual functions (struct vfsops)
vfs_mount vfs_root vfs_unmount
vfs_sync vfs_statvfs . . .
file-system-dependent implementation of vfsops
functions
21
Vnode and Open Files
file descriptor
struct vnode
struct file
open mode flags vnode pointer . . . offset pointer
v_data v_op
file-system- dependent objects
22
Vnode Structure
struct vnode u_short v_flag / V_ROOT, etc.
/ u_short v_count / reference count
/ struct vfs vfsmountedhere / for mount
points / struct vnodeops v_op / vnode
operations vector / struct vfs vfsp / file
system to which it belongs / struct stdata
v_stream / pointer to associated stream
/ struct page v_page / resident page list
/ enum vtype v_type / file type / dev_t
v_rdev / device ID for device files
/ caddr_t v_data / pointers to private data
structure / . . .
23
Vfs Structure
struct vfs struct vfs vfs_next / next Vfs
in list / struct vfsops vfs_op / operation
vector / struct vnode vfs_vnodecovered /
vnode mounted on / int vfs_fstype / file
system type index / caddr_t vfs_data /
private data / dev_t vfs_dev / device ID
/ . . .
24
Vnode and Vfs objects
root file system
mounted file system
rootvfs
vfs_next vfs_vnodecovered . . .
vfs_next vfs_vnodecovered . . .
struct vfs
struct vnode
VROOT v_vfsp v_vfsmountedhere . . .
VROOT v_vfsp v_vfsmountedhere . . .
VROOT v_vfsp v_vfsmountedhere . . .
vnode of /
vnode of /usr
/ vnode of mounted filesys
25
File System-Dependent Objects
  • vnodeops vector
  • struct vnodeops int (vop_open) ( ) int
    (vop_close) ( ) int (vop_read) ( ) int
    (vop_write) ( ) int (vop_ioctl) ( ) int
    (vop_getattr) ( ) int (vop_lookup) (
    ) int (vop_rename) ( ) . . .

26
File System-Dependent Vnode
struct inode
struct inode
struct rnode
i_vnode
i_vnode
r_vnode
v_data v_op . . .
v_data v_op . . .
v_data v_op . . .
struct vnodeops
ufs_open ufs_close . . .
nfs_open nfs_close . . .
27
File System-Dependent Vfs
  • Vfs
  • struct vfsops int (vfs_mount) ( ) int
    (vfs_unmount) ( ) int (vfs_root) ( ) int
    (vfs_statvfs) ( ) int (vfs_sync) ( ) . .
    .

28
Vfs layer data structures
file-system-dependent data structure
struct ufs_vfsdata
struct ufs_vfsdata
struct mntinfo
vfs_data vfs_next vfs_op . . .
vfs_data vfs_next vfs_op . . .
vfs_data vfs_next vfs_op . . .
struct vfs
ufs_mount ufs_unmount . . .
nfs_mount nfs_unmount . . .
rootvfs
struct vfsops
29
Mounting a File System
  • Mount in SVR4
  • mount (spec, dir, flags, type, dataptr, datalen)
  • Virtual file system switch
  • struct vfssw char vsw_name / file system
    type name/ int (vsw_init) ( ) / address of
    initialization routine / struct vfsops
    vsw_vfsops / vfs operations vector for this
    fs / . . . vfssw

30
Mount Implementation
  • 1. Uses lookuppn( ) to obtain the vnode of
    the mount point directory
  • 2. Searches vfssw table to find the entry
    matching the type name
  • 3. Invokes vsw_init operation
  • calls a file-system-specific initialization
    routine that allocates data structures and
    resources needed to operate the file system
  • 4. Allocates a new vfs structure, and

31
Mount Implementation (cont)
  • Adds the structure to the linked list headed by
    rootvfs
  • Sets the vfs_op field ? the vfsops vector in the
    switch entry
  • Sets vfs_vnodecovered ? the vnode of the mount
    point directory
  • Sets v_vfsmountedhere of the covered directorys
    node ? the vfs structure
  • 5. Invokes VFS_MOUNT operation of the vfs
  • It performs the file-system-dependent processing
    of the mount call

32
VFS_MOUNT Processing
  • 1. Verify permissions for the operation
  • 2. Allocate and initialize the private data
    object of the file system
  • 3. Store a pointer to it in the vfs_data field
    of the vfs object
  • 4. Access the root directory of the file
    system and initialize its vnode in memory
  • kernel accesses the root of a mounted file system
    is through the VFS_ROOT operation

33
VFS_MOUNT Processing (cont)
  • For local file systems
  • implements VFS_MOUNT by reading in the file
    system metadata (such as superblock for s5fs)
    from disk
  • For distributed file systems
  • sends a remote mount request to the file server

34
Operations on Files
  • Pathname traversal
  • Directory lookup cache
  • VOP_LOOPUP operation
  • Opening a file
  • File I/O
  • File Attributes
  • User Credentials

35
Pathname Traversal
  • lookuppn( )
  • a file-system-independent function
  • translates a pathname and returns a pointer to
    the vnode of the desire file
  • Tasks
  • from the starting vnode, executes a loop, parsing
    one component of the pathname at a time
  • For each loop, performs the following

36
Pathname Traversal (cont)
  • 1. Make sure the vnode is that of a directory
  • 2. Operations when the component is ..
  • 3. Invokes VOP_LOOKUP operation on this vnode.
  • This results in a call to the lookup function of
    this specific file system (s5lookup( ),
    ufs_lookup( ), etc)
  • It searches the directory for the component, and
    if found, returns a pointer the the vnode of that
    file system
  • 4. If the new component is a mount point
    (v_vfsmountedhere ! NULL)
  • follow the pointer to the vfs object of the
    mounted file system and invoke its vfs_root
    operation to return the root vnode of that file
    system

37
Pathname Traversal (cont)
  • 5. If the new component is a symbolic link
  • invoke its VOP_SYMLINK operation to translate the
    symbolic link. Append the rest of the pathname to
    the contents of the link and start the iteration
  • 6. Release the directory it just finished
    searching
  • 7. Finally, go back to the top of the loop, and
    search for the next component in the directory
    represented by the new vnode
  • 8. When no components are left, terminate search.
  • If the search was successful, do not release the
    hold on the final vnode and return a pointer to
    this vnode to the caller

38
VOP_LOOKUP Operation
  • Interface to the file-system-specific function
    that looks up a filename component in a directory
  • Error VOP_LOOKUP(vp, compname, tvp, )
  • This results in a call to file-system-specific
    lookup( )
  • lookup( ) for Local file systems
  • perform the search by iterating through the
    directory entries block by block
  • if the directory contains a valid match for the
    component, the lookup function checks if the
    vnode of the file is already in memory.
  • if the vnode is found in memory, increments its
    reference count and returns it to the caller
  • if the vnode not in memory, allocates and
    initializes a vnode

39
Opening a File
  • open( ) system call
  • Algorithm
  • 1. Allocate a file descriptor
  • 2. Allocate an open file object (struct file)
  • 3. Call lookuppn( ) to traverse the pathname
    and return the vnode of the file
  • 4. Check for the permissions

40
Opening a File (cont)
  • 5. If the file does not exist, check if
    O_CREAT is specified
  • 6. Invoke the VOP_OPEN operation of that
    vnode for system-dependent processing
  • 7. Initialize the open file object
  • store the vnode pointer and the open mode flags
    in it
  • 8. Return the index of the file descriptor

41
File System Types in SVR4
  • s5fs Original system V file system
  • ufs Berkeley Fast File System
  • vxfs Veritas journaling file system
  • specfs File system for device special files
  • NFS Network File System
  • RFS Remote File Sharing file system
  • fifofs File system for first-in, first-out files
  • /proc File system represents each process as a
    file
  • bfs Boot file system

42
Drawbacks of SVR4 Implementation
  • lookuppn( )
  • translates the pathname one component at a time
  • statelessness of the pathname lookup operation
  • in 4.4BSD
  • use a stateful model and an enhanced lookup
    operation
Write a Comment
User Comments (0)
About PowerShow.com
