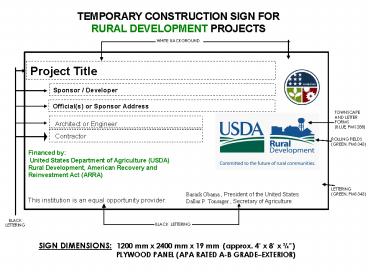

temporary construction sign for RURAL DEVELOPMENT projects

1
TEMPORARY CONSTRUCTION SIGN FOR RURAL
DEVELOPMENT PROJECTS
WHITE BACKGROUND
Project Title
Sponsor / Developer
Official(s) or Sponsor Address
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288)
Architect or Engineer
Contractor
ROLLING FIELDS (GREEN, PMS 343)
Financed by United States Department of
Agriculture (USDA) Rural Development, American
Recovery and Reinvestment Act (ARRA)
LETTERING (GREEN, PMS 343)
Barack Obama , President of the United States
This institution is an equal opportunity provider.
Dallas P. Tonsager , Secretary of Agriculture
BLACK LETTERING
BLACK LETTERING
SIGN DIMENSIONS 1200 mm x 2400 mm x 19 mm
(approx. 4 x 8 x ¾) PLYWOOD PANEL (APA
RATED A-B GRADEEXTERIOR)

2
Temporary Construction Sign for CWSRF Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
BLACK LETTERING
Total Project Cost
Financed by
SRF Program Maine Department of Environmental
Protection, Maine Municipal Bond Bank and
American Recovery and Reinvestment Act (ARRA)
LIGHT BLUE WAVE, FADING TO LIGHT GREEN
This institution is an equal opportunity provider
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

3
Temporary Construction Sign for DEP Grant Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
BLACK LETTERING
Total Project Cost
Financed by
Maine Department of Environmental Protection,
American Recovery and Reinvestment Act (ARRA)
This institution is an equal opportunity provider
BLACK LETTERING
LIGHT BLUE (Sky) DARK GREEN (Mountains) LIGHT
GREEN (Shore) DARK BLUE (Water) WHITE (Seagulls)

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

4
Temporary Construction Sign for DWSRF Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
BLACK LETTERING
Total Project Cost
Financed by
DWSRF Program Maine Department of Health
Human Services, Maine Municipal Bond Bank,
American Recovery and Reinvestment Act (ARRA)
LIGHT BLUE WAVE, FADING TO LIGHT GREEN
This institution is an equal opportunity provider
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

5
Temporary Construction Sign for CDBG Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
BLACK LETTERING
DARK BLUE AND GOLD
Total Project Cost
Financed by
Community Development Block Grant Public
Infrastructure Project, Funds provided by Maine
Department of Economic and Community
Development, American Recovery and Reinvestment
Act (ARRA)
This institution is an equal opportunity provider
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

6
Temporary Construction Sign for RD and DEP Grant
Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288)
Engineer
BLACK LETTERING
Contractor
ROLLING FIELDS (GREEN, PMS 343)
Total Project Cost
Financed by
United States Department of Agriculture (USDA)
Rural Development, Maine Department of
Environmental Protection, American Recovery and
Reinvestment Act (ARRA)
This institution is an equal opportunity provider
LIGHT BLUE (Sky) DARK GREEN (Mountains) LIGHT
GREEN (Shore) DARK BLUE (Water) WHITE (Seagulls)
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

7
Temporary Construction Sign for CDBG and DEP
Grant Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
DARK BLUE AND GOLD
BLACK LETTERING
Contractor
Total Project Cost
Financed by
Maine Department of Environmental
Protection, Community Development Block Grant
Public Infrastructure Project, Funds provided by
Maine Department of Economic and Community
Development, American Recovery and Reinvestment
Act (ARRA)
This institution is an equal opportunity provider
LIGHT BLUE (Sky) DARK GREEN (Mountains) LIGHT
GREEN (Shore) DARK BLUE (Water) WHITE (Seagulls)
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

8
Temporary Construction Sign for RD and CDBG
Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288)
Engineer
Contractor
BLACK LETTERING
ROLLING FIELDS (GREEN, PMS 343)
Total Project Cost
DARK BLUE AND GOLD
Financed by
United States Department of Agriculture (USDA)
Rural Development, Community Development Block
Grant Public Infrastructure Project, Funds
provided by Maine Department of Economic and
Community Development, American Recovery and
Reinvestment Act (ARRA)
This institution is an equal opportunity provider
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

9
Temporary Construction Sign for RD and CWSRF
Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
Financed by
United States Department of Agriculture (USDA)
Rural Development, American Recovery and
Reinvestment Act (ARRA) SRF Program Maine
Department of Environmental Protection and Maine
Municipal Bond Bank
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288)
LIGHT BLUE WAVE, FADING TO LIGHT GREEN
ROLLING FIELDS (GREEN, PMS 343)
This institution is an equal opportunity provider
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

10
Temporary Construction Sign for RD and DWSRF
Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
Financed by
United States Department of Agriculture (USDA)
Rural Development, American Recovery and
Reinvestment Act (ARRA) DWSRF Program Maine
Department of Health Human Services and Maine
Municipal Bond Bank
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288)
LIGHT BLUE WAVE, FADING TO LIGHT GREEN
ROLLING FIELDS (GREEN, PMS 343)
This institution is an equal opportunity provider
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

11
Temporary Construction Sign for RD, DWSRF, and
CDBG Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
Financed by
United States Department of Agriculture (USDA)
Rural Development, American Recovery and
Reinvestment Act (ARRA), CDBG funded through
Maine Department of Economic and Community
Development DWSRF Program Maine Department of
Health Human Services and Maine Municipal Bond
Bank
DARK BLUE AND GOLD
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288)
ROLLING FIELDS (GREEN, PMS 343)
This institution is an equal opportunity provider
LIGHT BLUE WAVE, FADING TO LIGHT GREEN
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

12
Temporary Construction Sign for DWSRF and CDBG
Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
Financed by
Community Development Block Grant Public
Infrastructure Project, Funds provided by Maine
Department of Economic and Community Development,
American Recovery and Reinvestment Act
(ARRA) DWSRF Program Maine Department of Health
Human Services and Maine Municipal Bond Bank
DARK BLUE AND GOLD
LIGHT BLUE WAVE, FADING TO LIGHT GREEN
This institution is an equal opportunity provider
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

13
Temporary Construction Sign for CWSRF and CDBG
Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
Financed by
SRF Program Maine Department of Environmental
Protection and Maine Municipal Bond
Bank, Community Development Block Grant Public
Infrastructure Project, Funds provided by Maine
Department of Economic and Community Development,
American Recovery and Reinvestment Act (ARRA)
DARK BLUE AND GOLD
LIGHT BLUE WAVE, FADING TO LIGHT GREEN
This institution is an equal opportunity provider
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

14
Temporary Construction Sign for RD, CWSRF, and
CDBG Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
Financed by
United States Department of Agriculture (USDA)
Rural Development, American Recovery and
Reinvestment Act (ARRA), CDBG funded through
Maine Department of Economic and Community
Development SRF Program Maine Department of
Environmental Protection Maine Municipal Bond
Bank,
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288
DARK BLUE AND GOLD
ROLLING FIELDS (GREEN, PMS 343)
This institution is an equal opportunity provider
LIGHT BLUE WAVE, FADING TO LIGHT GREEN
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

15
Temporary Construction Sign for RD, DEP Grant,
and CDBG Co-funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
Financed by
United States Department of Agriculture (USDA)
Rural Development, Maine Department of
Environmental Protection, American Recovery and
Reinvestment Act (ARRA), and CDBG funded through
Maine Department of Economic and Community
Development
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288
DARK BLUE AND GOLD
ROLLING FIELDS (GREEN, PMS 343)
This institution is an equal opportunity provider
LIGHT BLUE (Sky) DARK GREEN (Mountains) LIGHT
GREEN (Shore) DARK BLUE (Water) WHITE (Seagulls)
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

16
Temporary Construction Sign for EPA STAG Grant,
and DEP Administered Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
Financed by
United States Environmental Protection
Agency State and Tribal Assistance Grant Maine
Department of Environmental Protection, American
Recovery and Reinvestment Act (ARRA)
Administered by
DARK BLUE LIGHT GREEN DARK GREEN LIGHT GREEN
This institution is an equal opportunity provider
DARK BLUE - 15180 DARK GREEN - 14090 LIGHT GREEN
- 5 PARTS - 13655 1 PART - 15180 NUMBERS REFER
TO FEDERAL COLOR STANDARD NO 595a
LIGHT BLUE (Sky) DARK GREEN (Mountains) LIGHT
GREEN (Shore) DARK BLUE (Water) WHITE (Seagulls)
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

17
Temporary Construction Sign for RD, EPA STAG
Grant, and DEP Administered Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
United States Department of Agriculture (USDA)
Rural Development, United States Environmental
Protection Agency Maine Department of
Environmental Protection State and Tribal
Assistance Grant, American Recovery and
Reinvestment Act (ARRA)
Financed by
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288
DARK BLUE LIGHT GREEN DARK GREEN LIGHT GREEN
ROLLING FIELDS (GREEN, PMS 343)
This institution is an equal opportunity provider
DARK BLUE - 15180 DARK GREEN - 14090 LIGHT GREEN
- 5 PARTS - 13655 1 PART - 15180 NUMBERS REFER
TO FEDERAL COLOR STANDARD NO 595a
LIGHT BLUE (Sky) DARK GREEN (Mountains) LIGHT
GREEN (Shore) DARK BLUE (Water) WHITE (Seagulls)
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

18
Temporary Construction Sign for EPA STAG Grant,
and DECD Funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
United States Environmental Protection Agency,
Maine Department of Environmental Protection,
State and Tribal Assistance Grant, American
Recovery and Reinvestment Act (ARRA), CDBG funded
through Maine Department of Economic and
Community Development
Financed by
DARK BLUE LIGHT GREEN DARK GREEN LIGHT GREEN
DARK BLUE AND GOLD
This institution is an equal opportunity provider
DARK BLUE - 15180 DARK GREEN - 14090 LIGHT GREEN
- 5 PARTS - 13655 1 PART - 15180 NUMBERS REFER
TO FEDERAL COLOR STANDARD NO 595a
LIGHT BLUE (Sky) DARK GREEN (Mountains) LIGHT
GREEN (Shore) DARK BLUE (Water) WHITE (Seagulls)
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)

19
Temporary Construction Sign for EPA STAG Grant,
RD and DECD Funded Projects
WHITE BACKGROUND
Project Title (include Town / District name)
Engineer
Contractor
Total Project Cost
BLACK LETTERING
United States Environmental Protection Agency,
Maine Department of Environmental Protection,
State and Tribal Assistance Grant, American
Recovery and Reinvestment Act (ARRA), United
States Department of Agriculture (USDA) Rural
Development, CDBG funded through Maine
Department of Economic and Community Development
Financed by
TOWNSCAPE AND LETTER FORMS (BLUE, PMS 288
DARK BLUE LIGHT GREEN DARK GREEN LIGHT GREEN
DARK BLUE AND GOLD
ROLLING FIELDS (GREEN, PMS 343)
This institution is an equal opportunity provider
DARK BLUE - 15180 DARK GREEN - 14090 LIGHT GREEN
- 5 PARTS - 13655 1 PART - 15180 NUMBERS REFER
TO FEDERAL COLOR STANDARD NO 595a
BLACK LETTERING

• MINIMUM SIGN DIMENSIONS 1200 x 2400 x 19 MM (4
  x 8 x 3/4) EXTERIOR PLYWOOD (A-B GRADE)
• MINIMUM LETTERING SIZE 5 CM (2-INCHES)
