Title: Software Quality Week


1

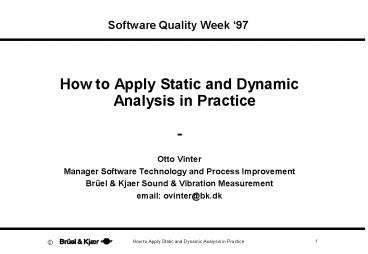

Software Quality Week 97
  • How to Apply Static and Dynamic Analysis in
    Practice
  • -
  • Otto Vinter
  • Manager Software Technology and Process
    Improvement
  • Brüel Kjaer Sound Vibration Measurement
  • email ovinter_at_bk.dk

2
Company Profile
  • Brüel Kjaer
  • Skodsborgvej 307, DK-2850 Naerum, Denmark
  • Tel 45 4580 0500, Fax 45 4580 1405
  • High-Precision Electronic Instrumentation for
  • Sound
  • Vibration
  • Condition Monitoring
  • Gas Measurements

3
The PET Process Improvement Experiment
  • The Prevention of Defects through
  • Experience-Driven Test Efforts
  • (PET)
  • PET Objectives
  • Extract knowledge on frequently occurring
    problems in the development process for embedded
    software
  • Change the development process by defining the
    optimum set of methods and tools available to
    prevent these problems reappearing
  • Measure the impact of the changes in a real-life
    development project
  • Funded by the CEC ESSI Programme (Project no.
    10438)

4
Defect Analysis from Error Logs
  • Results of the Analysis of Error Reports
  • no special bug class dominates embedded software
    development
  • requirements problems, and requirements related
    problems, are the prime bug cause (36)
  • problems due to lack of systematic unit testing
    is the second largest bug cause (22)

5
The PET Experiment
  • Actions to Improve Unit Testing
  • introduction of static and dynamic analysis
  • host/target tools
  • basic set of metrics
  • Comparative Analysis
  • assess a trial-release of a product
  • remove all static analysis anomalies
  • increase test coverage to industry best practice
  • (branch coverage gt 85)
  • measure the effect after production release

6
Results of the PET Experiment
  • Applying Static and Dynamic Analysis
  • 75 reduction in production-release bugs
  • compared to trial-release
  • 70 requirements bugs in production-release
  • because bugs in other categories dropped
  • 46 increase in testing efficiency
  • bugs found per hour of testing
  • app. 75 payback on tools and training
  • reduced maintenance effort

7
Where to Apply Static and Dynamic Analysis
  • Test Activities
  • Requirements Verification
  • Design Verification
  • Unit Test
  • Integration Test
  • Acceptance Test
  • Beta Test

Static and Dynamic Analysis
8
Static Analysis in Unit Testing
  • Static analysis is performed
  • before unit testing starts
  • and after any modification to unit
  • Complexity Metrics
  • use McCabe complexity metric as an indication
  • take loop nesting into account
  • use visual inspection of data flow graphs
  • for perceived complexity
  • focused code inspection
  • Analysis reports are reviewed / inspected
  • determine special actions
  • determine test coverage profile
  • test coverage levels

9
Static Flowgraph (McCabe 10)
10
Static Flowgraph (McCabe 20)
11
McCabe 46
12
McCabe 55
13
Visualisation Theme
  • If it looks right, it could be wrong,
  • but if it looks wrong, it cant be right.
  • Uffa Fox, yacht designer

14
Static Analysis in Unit Testing
  • Data Flow Analysis
  • Undefined but referenced variables
  • must be removed from the code
  • Variables defined but not used in scope
  • should be documented in the code
  • Variables redefined with no use in between
  • should be documented, if not close to
  • Suspicious casting (loss of information,
    mismatches)
  • if unavoidable, use explicit casts
  • should be documented
  • Global variable anomalies (local overrides
    global)
  • should be removed

15
Static Analysis in Unit Testing
  • Establish project standards for code
  • no gotos, breaks in all cases, procedure size,
    etc.
  • Remove unused items
  • unreachable code (incl. procedures)
  • declared variables that are not used
  • Address design architecture problems
  • use visual inspection of control flow graphs
  • procedure parameter anomalies
  • (referenced only, defined only, not used)

16
Static Analysis Results
  • Data Flow Anomalies
  • Type of Bug Distribution
  • Use of uninitialised variable 15
  • Variable defined but not used in scope 24
  • Variable redefined with no use in between 36
  • Parameter mismatch 6
  • Unreferenced procedure 18
  • Declared but not used variable 0
  • Other types of static bugs 0

17
Dynamic Analysis in Unit Testing
  • Test coverage strategy
  • based on information from static analysis
  • determined on a unit by unit basis
  • Unit test coverage must take into consideration
  • perceived complexity
  • based on a visual inspection
  • degree and type of reuse
  • criticality
  • product and project issues
  • developer experience
  • domain, product, and unit
  • bug and change request history

18
Dynamic Analysis in Unit Testing
  • Dynamic analysis reports are reviewed / inspected
  • after unit testing (and a static analysis)
  • and after any modification to unit
  • Test coverage achieved
  • test coverage level (e.g. 85 of branches)
  • visual inspection of dynamic flow graphs
  • determine special actions
  • Static and dynamic analysis reports are saved in
    the configuration system along with the code

19
Problems when Introducing Static and Dynamic
Analysis
  • Static analysis
  • an extreme amount of anomalies to evaluate
  • more than 1 per 60 lines of code
  • Dynamic analysis
  • best suited for automatic testing
  • documented test cases
  • no automatic test case generation
  • only structure based
  • test cases are selected by normal unit testing
    techniques
  • equivalence partitioning, boundary value analysis
    ...

20
Problems when Introducing Static and Dynamic
Analysis
  • Tools break
  • code expands when instrumented (40)
  • large amount of tracing data is generated
    (Mbytes)
  • So
  • instrument only parts of system
  • handle frequently used parts separately
  • run the regression test suite several times
  • with different parts instrumented

21
Conclusions on Static/Dynamic Analysis
  • Performance Improvement
  • an efficient way to remove bugs
  • marginal delay on trial release date
  • marginal increase in the testing resources
    required
  • immediate payback on tools, training
    implementation
  • increased quality and reduced maintenance costs
  • increased motivation
  • applicable to the whole software development
    industry, incl. embedded software
