Technical Note 8

1
Technical Note 8

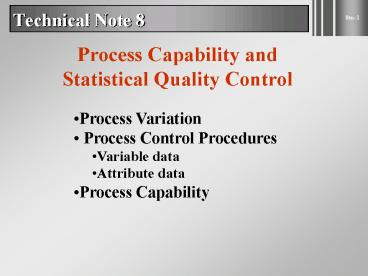

Process Capability and Statistical Quality Control

• Process Variation
• Process Control Procedures
• Variable data
• Attribute data
• Process Capability

2
Approaches to Quality
3
The Process Focus
4
Types of Statistical Quality Control
Variables
Attributes
5
Basic Forms of Variation

• Assignable variation is caused by factors that
  can be clearly identified and possibly managed

Example A poorly trained employee that creates
variation in finished product output.
Common (natural) variation is inherent in the
production process
Example A molding process that always leaves
burrs or flaws on a molded item.
Statistical Process Control Charts distinguish
between assignable common variation.
6
The Central Limit Theorem
Suppose a population has a mean (?)and a
standard deviation (?)
7
Central Limit Theorem Illustrated
8
SPC Control Limits
?
9
X and R Charts
10
Process Control Chart Factors
UCL Factorfor Ranges(Range Charts)(D4)
LCL Factorfor Ranges(Range Charts)(D3)
Control LimitFactor forAverages(Mean
Charts)(A2)
Factor forEstimatingSigma( R/d2) (d2)
Sample(Subgroup)Size(n)
2
1.88
1.128
3.27
0
3
1.02
1.693
2.57
0
4
0.73
2.059
2.28
0
5
0.58
2.326
2.11
0
6
0.48
2.534
2.00
0
7
0.42
2.704
1.92
0.08
8
0.37
2.847
1.86
0.14
9
0.34
2.970
1.82
0.18
10
0.31
3.078
1.78
0.22
11
Process Capability Cpk
12
Process Capability Cpk Example
13
CPK Examples
(a) CPK1.0
(c) CPK2.0
(b) CPK1.33
3s
3s
3s
3s
3s
3s
(e) CPK0.60
(d) CPK1.0
3s
3s
3s
3s
14
p - Chart
15
C-Chart Defects in Hotel Suites
16
c - Chart for Hotel Suite Inspection
17
End of Technical Note 8
