Faculty: Dr. Alvin Fox

1

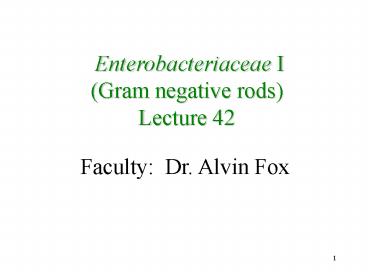

Enterobacteriaceae I (Gram negative
rods) Lecture 42
Faculty Dr. Alvin Fox
2
Key Words
Opportunistic diseases Shigella Diarrhea
- Bacillary dysentery Dysentery - Shiga
toxin Urinary tract infections Salmonella
enteritidis Pili Salmonellosis Lactose
positive/negative Salmonella
cholerae-suis Enterohemorrhagic E. coli
Salmonella typhi - Vero toxin (Shiga-like,
Shiga) - Typhoid - Hemolysin -
Vi Enterotoxigenic E. coli Yersinia
entercolitica - Heat stable toxin Vibrio
cholerae - Heat labile toxin Choleragen
(cholera toxin) Enteropathogenic E. coli
Campylobacter jejuni Enteroaggregative E.
coli Helicobacter pylori Enteroinvasive E.
coli
3
Opportunistic diseases -Enterobacteriaceae

• septicemia,
• pneumonia,
• meningitis
• urinary tract infections

Citrobacter Enterobacter Escherichia Hafnia Morgan
ella Providencia Serratia
4
Enterobacteriaceae

• gastrointestinal diseases
• Escherichia coli
• Salmonella
• Shigella
• Yersinia entercolitica

5
Reiter's syndrome

• Histocompatibility antigen (HLA) B27
• Enterobacteriaceae
• Salmonella
• Shigella
• Yersinia

• Non-Enterobacteriaceae
• Campylobacter
• Chlamydia

6
Enterobacteriaceae

• community acquired
• otherwise healthy people
• Klebsiella pneumoniae
• respiratory diseases
• prominent capsule
• urinary tract infection
• fecal contamination
• E. coli
• Proteus
• urease (degrades urea)
• alkaline urine

7
E. coli fimbriae
Type 1
mannose
P

• galactose
• glycolipids
• glycoproteins

8
Enterobacteriaceae

• gram negative facultative anaerobic rods
• oxidase negative (no cytochrome oxidase)

9
Feces

• E. coli
• lactose positive
• not usually identified
• lactose positive sp. common, healthy intestine
• Shigella, Salmonella,Yersinia
• lactose negative
• identified

10
Enterobacteriaceae

• other sites
• identified biochemically

11
Serotypes

• reference laboratory
• antigens
• O (lipopolysaccharide)
• H (flagellar)
• K (capsular)

12
Diarrhea (watery feces) and Dysentery (blood in
stools)
13
Caption E. coli
Escherichia coli
14
Escherichia coli

• E. coli and Shigella
• genetically very similar
• separated for historical reasons
• overlap in pathogenesis

15
Enterohemorrhagic E. coli

• Usually O157H7

Flagella
16
Transmission meat products or
sewage-contaminated vegetables

• Hemorrhagic
• Bloody dysentery
• copious diarrhea
• few leukocytes
• afebrile
• hemolytic-uremic syndrome
• hemolytic anemia
• thrombocytopenia (low platelets)
• kidney failure

17
Enterohemorrhagic E. coli

• Vero toxin
• shiga-like toxin
• shiga toxin
• Hemolysins

18
Enterotoxigenic E. coli

• diarrhea like cholera
• milder
• travellers diarrhea

19
Enterotoxigenic E. coli

• Heat labile toxin
• like choleragen
• Adenyl cyclase activated
• cyclic AMP
• secretion water/ions
• Heat stable toxin
• Guanylate cyclase activated
• cyclic GMP
• uptake water/ions

20
Enteropathogenic E. coli

• destruction of surface microvilli

• fever
• diarrhea
• vomiting
• nausea
• non-bloody stools (not generally seen as
  dysentery)

Gut lumen
21
Enteroaggregative

• Brick-like aggregates on cell surfaces
• Mucus biofilm inhibits fluid absorption
• Diarrhea

22
Enteroinvasive E. coli (EIEC )

• Dysentery
• - resembles shigellosis

Gut lumen
23
Treatment -gastrointestinal disease

• fluid replacement
• antibiotics
• not used usually unless systemic
• e.g. hemolytic-uremia syndrome

24
Shigella
Modified from Fig, Dennis Kunkel
25
Shigella

• S. flexneri, S. boydii, S. sonnei, S. dysenteriae
• bacillary dysentery
• shigellosis
• bloody feces
• intestinal pain
• pus

26
Shigellosis

• within 2-3 days
• epithelial cell damage

Gut lumen
27
Shiga toxin

• enterotoxic
• cytotoxic
• inhibits protein synthesis
• lysing 28S rRNA

28
Shigellosis

• man only "reservoir"
• mostly young children
• fecal to oral contact
• children to adults
• transmitted by adult food handlers
• unwashed hands

29
Treating shigellosis

• manage dehydration
• patients respond to antibiotics
• disease duration diminished

30
Salmonella



417
                                                                                                                                                                                                                   Caption Salmonella typhi - Gram-negative, enteric, rod prokaryote (dividing) causes typhoid fever.Magnification x5,530Type SEMKeywords 96430B.TIF bacilli bacillus bacteria bacterial pathogen bacterium division Gram-negative human disease infection prokaryote rod Salmonella typhi typhoid fever enteric bacterial pathogen intestinal tract infection SEM
31
Salmonella

• 2000 antigenic "types
• genetically single species
• S. enterica
• disease category
• S. enteritidis
• many serotypes
• S. cholerae-suis
• S. typhi

32
Salmonellosis

• S. enteritidis
• the common salmonella infection
• poultry, eggs
• no human reservoir
• Gastroenteritis
• nausea
• vomiting
• non-bloody stool
• self-limiting (2 - 5 days)

33
Salmonellosis
Gut lumen
uncomplicated cases (the vast majority)
antibiotic therapy not useful
34
S. cholerae-suis

• much less common
• septicemia
• antibiotic therapy essential
