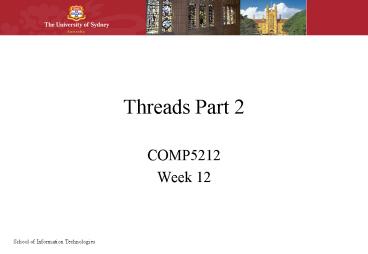

Threads Part 2

1
Threads Part 2

• COMP5212
• Week 12

2
Concurrency

• there are many situations where parallel
  programming is useful
• Clear trend towards duo-core and multi-core
  machines
• Servers handle multiple clients simultaneously
• User interface handle user input during
  processing

3
POSIX Threads

• A standard library of functions to help create
  and manage threads pthreads
• create a thread
• include ltpthread.hgt
• int
• pthread_create(pthread_t thread_id,
• const pthread_attr_t
  attributes,
• void (thread_function)(void
  ),
• void arguments)

4
POSIX Threads

• exit a thread when the thread function returns or
  calls pthread_exit()
• wait for a thread to terminate
• include ltpthread.hgt
• int
• pthread_join(pthread_t thread_id,
• void status_ptr)

5
Function Pointers

• These are pointers, i.e. variables, which point
  to the address of a function
• This is useful if you can only decide which
  function to call at run-time (called
  late-binding)
• Note A function pointer always points to a
  function with a specific signature!
• Thus all functions, you want to use with the same
  function pointer, must have the same parameters
  and return-type!

6
include ltstdio.hgt include ltstring.hgt int
add(int a, int b) int del(int a, int b) int
test_op(int (op)(int , int ), int op1, int
op2) int main() char choice int a,
b printf("Enter the op you want (a - add d
- del)gt ") scanf("c",choice)
printf("Enter the two operandsgt")
scanf("dd",a, b) switch (tolower(choice))
case 'a' printf("d d
d\n",a,b,test_op(add,a,b))
break case 'd' printf("d - d
d\n",a,b,test_op(del,a,b))
break default printf("invalid
option\n") break
int add (int a, int b) return (a
b) int del (int a, int b) return (a
- b) int test_op (int (op)(int a, int b),
int op1, int op2) return op(op1,op2)
Example
7
Simple Thread Example
8
/ http//www.yolinux.com/TUTORIALS/LinuxTutorial
PosixThreads.html / include ltstdio.hgt include
ltstdlib.hgt include ltpthread.hgt void
print_message_function( void ptr ) main()
pthread_t thread1, thread2 char
message1 "Thread 1" char message2
"Thread 2" int iret1, iret2 /
Create independant threads each of which
will execute a function / iret1
pthread_create( thread1, NULL,
print_message_function, (void) message1)
iret2 pthread_create( thread2, NULL,
print_message_function, (void)
message2)
9
/ Wait till threads are complete before
main continues. Unless we wait we run the
risk of executing an exit which will
terminate the process and all threads
before the threads have completed.
/ pthread_join( thread1, NULL)
pthread_join( thread2, NULL)
printf("Thread 1 returns d\n",iret1)
printf("Thread 2 returns d\n",iret2)
exit(0) void print_message_function( void
ptr ) char message message (char
) ptr printf("s \n", message)
To compile gcc pthread1.c -lpthread
10
Thread problems Sharing memory

• /thread 1/
• a data
• a
• data a

• /thread 2/
• b data
• b--
• data b

If these threads are executed sequentially (eg 1
followed by 2) then the final value of data is
predictable
11
Thread problems Sharing memory
If the threads are interleaved

• /thread 1/
• a data
• ..
• a
• ..
• data a

• /thread 2/
• ..
• b data
• ..
• b--
• ..
• data b

12
Thread problems

• There is no way to predict the final value of
  data.
• The value could be 1, 0 or -1!
• On multiprocessor machines where several
  processors have access to the memory, the result
  may even be completely scrambled as the
  processors compete for the memory location of
  data
• We need to be able to synchronise the threads
  somehow.

13
Mutual Exclusion

• Mutual exclusion refers to a technique that
  ensures that only a single thread is executing a
  specified section of program code at any
  particular time.
• A mutex is a form of lock that must be controlled
  by a thread before it is allowed to proceed
• A thread locks a section before it enters and
  unlocks it when it is finished

14
Pthreads mutex

• Initialise a mutex lock
• int pthread_mutex_init(pthread_mutex_t mut,
  const pthread_mutexattr_t attr)
• Acquire a lock
• int pthread_mutex_lock(pthread_mutex_t mut)
• Unlock
• int pthread_mutex_unlock(pthread_mutex_t mut)
• Try a lock
• int pthread_mutex_trylock(pthread_mutex_t mut)
• Destroy a lock
• int pthread_mutex_destroy(pthread_mutex_t mut)

15
Mutex example

• /thread 1/
• pthread_mutex_lock(mut)
• ..
• a data
• a
• data a
• pthread_mutex_unlock(mut)

• /thread 2/
• ..
• pthread_mutex_lock(mut)
• ..
• ..
• ..
• ..
• b data
• b--
• data b
• pthread_mutex_unlock(mut)

16
Mutex problems

• Programs that use mutex locks to control access
  to critical sections of code can suffer from
  deadlock!
• Deadlock can occur in a number of ways
• Eg two threads are each waiting on locks held by
  the other
• Thread 1 acquires lock A
• Thread 2 acquires lock B
• Thread 1 wants lock B
• Thread 2 wants lock A

17
Mutex problems

• Another problem that can occur are race
  conditions
• A thread may not acquire the correct lock, enters
  a critical section and modifies some data
  structure giving inconsistent results
• You need to be very careful when programming with
  threads, such that functions you call are
  thread-safe
• Often, the documentation of library functions
  will state if they are thread safe

18
Acknowledgement

• Lecture prepared by Bob Kummerfeld.
• The code example in this lecture comes from
• http//www.yolinux.com/TUTORIALS/LinuxTutorialPosi
  cThreads.html
