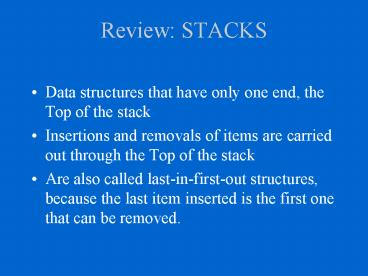

Review: STACKS

1
Review STACKS

• Data structures that have only one end, the Top
  of the stack
• Insertions and removals of items are carried out
  through the Top of the stack
• Are also called last-in-first-out structures,
  because the last item inserted is the first one
  that can be removed.

2
A Stack As An ADT

• An abstract data type in which items are inserted
  and removed from a single end a last in, first
  out (LIFO) structure

3
OPERATIONS ON A STACK

• isEmpty, to test if the stack is empty
• isFull, to test if the stack is full
• Push, to insert an item into the stack
• Pop, to remove the item at the TOP of the stack
• Top, to get a copy of the item at the top of the
  stack

4
IMPLEMENTATION OF STACKS

• Arrays
• ArrayList (Dynamic arrays)
• Linked lists

5
A STACK ABSTRACT CLASS
class Stack private int data private
final int MAX_ITEMS private int top
// index of the item at the top // public
Stack() // postcond stack is empty
public boolean Isempty() public boolean
IsFull() public void push( int newItem)
// postcond size of stack incremented by 1,
stack is not empty public int top () //
precond stack is not empty // postcond
stack is not changed public int pop() //
precond stack is not empty // postcond
size of stack is decreased by 1
6
Design by Contract

• The Design by Contract (DBC) software development
  technique ensures high-quality software by
  guaranteeing that every component of a system
  lives up to its expectations.
• As a developer using DBC, you specify component
  contracts as part of the component's interface.
• The contract specifies what that component
  expects of clients and what clients can expect of
  it.

7
DBC in Programming Languages

• DBC is a valuable design technique for all
  programming languages, including Java.
• Central to DBC is the notion of an assertion -- a
  Boolean expression about the state of a software
  system.
• At runtime we evaluate the assertions at specific
  checkpoints during the system's execution. In a
  valid software system, all assertions evaluate to
  true.
• If any assertion evaluates to false, we consider
  the software system invalid or broken.

8
Assertions

• In DBC, we identify three different kinds of
  expressions
• Preconditions
• Postconditions
• Invariants

9
Preconditions

• Preconditions specify conditions that must hold
  before a method can execute. As such, they are
  evaluated just before a method executes.
• Preconditions involve the system state and the
  arguments passed into the method.
• Preconditions specify obligations that a client
  of a software component must meet before it may
  invoke a particular method of the component.
• If a precondition fails, a bug is in a software
  component's client.

10
Postconditions

• Postconditions specify conditions that must hold
  after a method completes. Consequently,
  postconditions are executed after a method
  completes.
• Postconditions involve the old system state, the
  new system state, the method arguments, and the
  method's return value.
• Postconditions specify guarantees that a software
  component makes to its clients.
• If a postcondition is violated, the software
  component has a bug.

11
Invariants

• An invariant specifies a condition that must hold
  anytime a client could invoke an object's method.

• Invariants are defined as part of a class
  definition. In practice, invariants are evaluated
  anytime before and after a method on any class
  instance executes.
• A violation of an invariant may indicate a bug in
  either the client or the software component.

12
Assertions, Inheritance, and Interfaces

• All assertions specified for a class and its
  methods apply to all subclasses as well.
• You can also specify assertions for interfaces.
  As such, all assertions of an interface must hold
  for all classes that implement the interface.

13
Java Example

• By convention, preconditions on public methods
  are enforced by explicit checks that throw
  particular, specified exceptions. For example
• /
• Sets the refresh rate.
• _at_param rate refresh rate, in frames per
  second.
• _at_throws IllegalArgumentException if rate
  lt 0 or
• rate gt MAX_REFRESH_RATE.
• /
• public void setRefreshRate(int rate)
• // Enforce specified precondition in
  public method
• if (rate lt 0 rate gt MAX_REFRESH_RATE)
• throw new IllegalArgumentException("I
  llegal rate " rate)
• setRefreshInterval(1000/rate)

14
QUEUE

• A data structure that consists of two ends, the
  head (front) and the tail (rear).
• It is a container ADT in which items are inserted
  at the tail and removed at the head
• The ordering of the items is first in first out
  (FIFO)
• It is a higher-level data structure

15
QUEUE IMPLEMENTATION

• A queue can be implemented with
• Arrays
• ArrayList (Dynamic arrays)
• Linked lists

16

• What is a queue?
• A collection of items that can be inserted at the
  tail end removed at the head
• Items must be removed in the same order of that
  in which they are inserted into the queue
• FIFO first in and first out

17

• Queue Specification
• isEmpty()
• Return true if the queue is empty o.w, false
• peekfront()
• Return the head item without removing it from the
  queue
• remove
• Return the head item and remove it from the queue
• insert
• Insert a new item into tail of the queue
• size
• Return the number of items in the queue

18

• Problem?
• two references head and tail
• Changing the head and tail, figure 4.7 on page
  135
• when head moves up to the tail
• Can you insert a new item?
• How to solve the problem?
• Figure 4.8, 4.9 on page 136, 137

19
Solutions

• After a removal, shift all the items in queue one
  position to the front
• Use a circular queue implementation

20
Circular Queue

• Using an array implementation
• The Head and Tail indices of the queue should
  wrap around to the beginning of the array

21

• class Queue private int maxSize
  private long queArray private int front
  private int rear private int nItems
  public void insert(long j) // put item at rear
  of queue if(rear maxSize-1)
  // deal with wrap around rear -1

• queArrayrear j // increment
  rear and insert nItems
  // one more item public long
  remove() // take item from front of
  queue long temp
  queArrayfront // get value and incr front
  if(front maxSize) // deal with
  wraparound front 0 nItems--
  // one less item return
  temp public long peekFront() //
  peek at front of queue return
  queArrayfront public int size()
  // number of items in queue
  return nItems // end class Queue

22
QUEUE ADT

• A queue consists of a lower level data structure
  to contain the items in the queue
• The relevant operations are
• Insert item at the tail (rear) of the queue
• Remove item from the head (front) of the queue
• Get the size of the queue
• Get condition of emptyness

23
A QUEUE ABSTRACT CLASSUsing a Linked List
Implementation
class Queue private Node head // ref to
front of queue private Node tail // ref
to rear of queue private int size //
number of items in queue public Queue()
public void insert ( Item entry) public Item
remove () public int get_size () public
boolean empty ()
24

• What is priority queue?
• Priority queue and queue are two different data
  structures
• Items are stored in a Sorted order
• Item with the highest priority (lowest key or
  highest key) always at the head (not FIFO)
• Highly restricted access!
• New item is inserted in the proper position to
  maintain the order, not necessarily at the tail
  (similar to sorted array)

25

• Priority queue operations
• Insert
• Find proper position for the new elements
• Shift elements with lower key (higher key) up
• Delete
• Always the head element of the priority queue
• Peek
• Return a copy of head element without removing it

26

• class PriorityQ private int maxSize
  private long queArray private int nItems
  //-----------------------------------------------
  -------------- public void insert(long item)
  // insert item int j
  if(nItems0) // if no
  items, queArraynItems item
  // insert at 0 else
  // if items,
  for(jnItems-1 jgt0 j--) // start at
  end, if( item gt
  queArrayj ) // if new item larger,
  queArrayj1 queArrayj // shift
  upward else
  // if smaller, break
  // done shifting // end
  for queArrayj1 item //
  insert it nItems // end
  else (nItems gt 0) // end
  insert()//---------------------------------------
  ---------------------- public long remove()
  // remove minimum item return
  queArray--nItems //--------------------------
  ----------------------------------- public
  long peekMin() // peek at minimum
  item return queArraynItems-1
  //----------------------------------------------
  --------------- // end class PriorityQ

27
public void insertionSort() int in,
outfor(out1 outltnElems out)
long temp aout in out
while(ingt0 ain-1 gt temp)
ain ain-1
--in ain temp //
end for // end insertionSort()
public void insert(long item) int
j if(nItems0),
queArraynItems item else

for(jnItems-1 jgt0 j--),
if( item gt queArrayj ),
queArrayj1 queArrayj else
break queArrayj1 item
nItems // end else
(nItems gt 0) // end insert()
Excise make insert() O(1) while remove() takes
longer time
