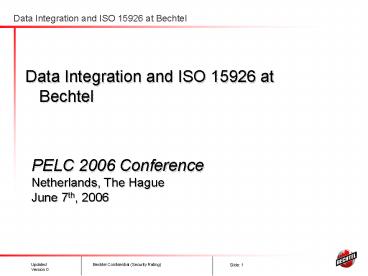

• Data Integration and ISO 15926 at Bechtel

• PELC 2006 Conference
• Netherlands, The Hague
• June 7th, 2006

2
Bechtel Group Regional Offices
Global Presence Project Teams at Home Office,
Job Site, Affiliated Centers Joint Ventures
Concurrent Engineering Global Procurement
Calgary
Iraq
Libya
Trinidad
Algeria
Guinea
Darwin
Lima
Perth
3
Bechtel Systems Structure
s
Qs
4
Bechtel Integration Model
Static Requirements (Institutionalized)
Automated, Stable
CS
Enterprise Applications
Configurability
Transactions
DataBroker
PCS
Site Applications
ECS
Project Applications
Dynamic Requirements (Customer Driven)
Interactive, Irregular Churn
5
Bechtel Standard Data Exchange Platform
DataBroker

• Bechtel designed and built
• Initiative started in Q1, 1999
• Deployed to six Global Business Units
• Currently deployed on 69 projects world-wide
• Uses STEPLib RDL
• Incorporates the methodologies of ISO 15926, Part
  7

6
DataBroker Key Technologies

• Achieves absolute reliability via stateless
  differencing
• Incorporates a common ontology
• Enforces application abstraction and
  encapsulation - Interfaces
• Implements dynamic configuration
• Provides end user interactivity
• Achieves high degree of reuse
• Derives data flows via application interrogation

7
Moving to the next Interoperability Platform
going beyond DataBroker

• Exchange platform extending throughout the
  enterprise
• Facing the challenge of scale
• We dont want to build it
• Based on ISO 15926
• Incorporates technologies designed for EPC
  project implementations
• Stateless differencing
• Common ontology
• Dynamic configuration
• Interactivity
• Reusability

8
Bechtel Integration Systems
Enterprise Data Exchange Platform
Microsoft SAP Other
CS
Enterprise Applications
PCS
Intergraph Bentley Aveva Other
Site Applications
ECS
Project Applications
Specialized EPC Data Exchange Platform
9
Interoperability Platform
Site Repository Cost
Procurement
Contracts
Enterprise Applications
Project Controls
Customer Repository Handover
Data Exchange Platform
ISO 15926
Suppliers
Project Repository Quantities
Construction
Engineering
10
Process Industry Data Integration Workshop

• DuPont sponsored a Process Industry Data
  Integration Workshop
• 22 international companies and agencies where
  represented
• Workshop provided
• Integration Interoperability knowledge sharing
• Alignment
• Relationship building
• Drive toward a single process industry standard,
  ISO-15926, Part 4

11
ISO 15926

Implementers
Part 7
Interoperability

Engineering Experts
Integration
Part 4

Data Modelers
Geometry Grammar
Part 3
Part 2 Data Model
Data Modelers
Generic Grammar
Data Model
Reference Data Library
Function
Role
Template Facades
12
ISO 15926 Analogy
Phrase, Sentence, Paragraph, Verse, Rhyme,
Lyric, Short Story, Novel
Part 7 Object Information Models
Dictionary Thesaurus
Part 4 Reference Data
Part 2 Data Model
Natural Language Grammar
13
POSC Caesar IDS Projects FIATECH ADI Project

• IDS
• Intelligent Data Sheet
• ADI
• Accelerating the Deployment of ISO 15926

14
POSC Caesar IDS Projects

• Global Standardization Organization
• Special responsibility for the maintenance and
  enhancement of ISO 15926
• Reference Data System (RDS)
• Set of Software Applications used to administer
  RDL
• Primary system to extend Part 4
• Intelligent Data Sheets Projects (IDS)
• Started February 2006
• Deliver product models

15
FIATECH ADI Project

• Formed in response to the Process Industry Data
  Integration Workshop
• Leadership team
• Onno Paap Fluor
• Hans Teijgeler OntoConsult
• Magne Valen-Sendstad DNV / POSC Caesar
• Manoj Dharwadkar Bentley
• Mark Palmer NIST
• Robin Benjamins Bechtel
• Project Summary and Plan http//www.fiatech.org/
  projects/idim/iso15926.html

16
ADI IDS Collaboration

• ADI an IDS projects are in collaboration to form
  the ISO 15926 Work In Progress (WIP) system
• Aligned on ISO 15926 scope
• IDS will focus on Part 4
• ADI will focus on Part 7
• ADI will build a prototype Façade to host the WIP
  and complement IDSs RDS
• IDS will collaborate with other FIATECH projects
  on industry prioritization and product models

17
ISO 15926 Organization
18
ISO 15926 WIP
Owner Operators, EPCs, Suppliers, Solution
Providers
Part 4 Reference Data Library

• Terms Product Models

19
The Reason for the WIP

• Need it yesterday
• MyRDL versus TheRDL! Single Global Source
• Cant use it if we cant extend it
• Fast turnaround
• Infrastructure
• Access
• Contributions
• Certification
• ADI IDS projects are building the WIP!

20
Resources

• POSC Caesar
• http//www.posccaesar.com
• FIATECH
• http//www.fiatech.org
• ISO
• http//www.iso.org
• ISO 15926 Knowledge Base
• http//www.15926.org
• OntoConsult
• http//www.infowebml.ws

21
