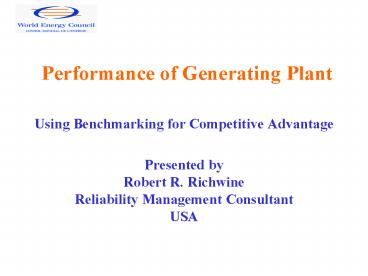

Performance of Generating Plant

1
Performance of Generating Plant

• Using Benchmarking for Competitive Advantage
• Presented by
• Robert R. Richwine
• Reliability Management Consultant
• USA

2
Agenda

• Benchmarking Background
• Unit Level Benchmarking
• Component Benchmarking
• High Impact Low Probability Benchmarking
• Optimum Economic Availability Benchmarking

3
Benchmarking Background

• From a 2006 Wall Street Journal article
• Business today is awash in data and data
  crunchers
• Only a few companies use data as a strategic
  weapon
• The ability to collect, analyze and act on data
  is the essence of a companys competitive
  advantage

4
Survey Results in WSJ

• 450 executives 370 companies 35 countries 19
  industries
• Identified a strong link between extensive and
  sophisticated use of analytics and sustained high
  performance
• Top performing companies were 5 times more likely
  to single out analytics as critical to their
  competitive edge

5
WEC PGP Case Studies

• Over 30 case studies published on WEC website
• www.worldenergy.org
• Focus is on practical use of data, including
  benchmarking, to improve plant performance

6
Benchmarking - Why?

• Set realistic, achievable goals
• Identify opportunities for improvement
• Give advance warning of threats
• Determine appropriate incentives
• Trade knowledge/experience with peers
• Quantify and manage performance risks
• Estimate supply adequacy risks
• Close the gap between actual and potential plant
  performance

7
The Gap
Potential Performance
Actual Performance
8
Worldwide Value of Closing the Gap(WEC Estimate)

• Economic
• US80 Billion per Year
• Environmental
• 1 Billion Tonnes of CO2e Reduction per Year and
  Proportional Reductions of Other Emissions

9
Primary Causes of the Gap

• May 2002 Case Study
• From Analytical Studies Plus Practical
  Experiences
• Only 20 - 25 of the Gap is Due to Technology
  Issues
• 75 - 80 is Due to Management Practices

10
Benchmarking plays a key role

• Many companies have applied benchmarking in
  their performance improvement efforts to
• 1) Identify gaps in their units performance
• 2) Identify areas with best opportunity for
  cost-effective improvement initiatives
• 3) Quantify the economic value of closing those
  gaps

11
Benchmarking Process

• Identify performance variables to measure and the
  databases required
• Select peer power plants having similar design or
  mode of operations characteristics
• Compare the candidate power plants performance
  and cost against these peer plants

12
WEC Data Base

• Reliability data from around the world
• Web-based analytical tools

13
Peer Selection Criteria

• Large Population

WEC Data Base
14
Peer Selection Criteria

• Exact Match

x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
15
Peer Selection Criteria
Exact Matches
Large Population
Must Balance Criteria
16
Peer Selection Criteria
Etc.
Etc.
Fuel
Vintage
Firing
Etc.
Boiler Manufacturer
Duty
Age
Criticality
Turbine Manufacturer
Etc.
Size
Etc.
Draft
17
Peer Selection Criteria
Etc.
Etc.
Fuel
Vintage
Firing
Etc.
Boiler Manufacturer
Duty

• ANALYSIS

Age
Criticality
Turbine Manufacturer
Etc.
Size
Etc.
Draft
18
Peer Groups Selection Criteria Fossil Units
19
Performance Benchmarking Results -- 30 Peer
Units

• Peer unit selection criteria
• Subcritical
• Base-loaded
• Natural boiler circulation
• Primary fuel - coal
• Net output factor greater than 85.6

20
Peer Unit EAF Distribution
21
Conclusions

• Benchmarking is helping utilities
• Set goals
• Develop incentives
• Identify improvement opportunities
• Proper peer group selection is essential
• August 2002 Case Study
• September 2003 Case Study
• Benchmarking is a key first step
• The WEC is actively providing support

22
Component Benchmarking

• Similar to unit level benchmarking but focused on
  individual
• Systems
• Sub-systems
• Components

23
Component Benchmarking

• Still need to ensure that the peer selection
  process results in as close a match as possible
  while keeping sufficient units in the population
  for statistical accuracy
• The component peer selection criteria is likely
  to be different from the unit criteria (e. g. the
  turbine is likely to be indifferent to fuel type)

24
HILP Benchmarking

• February, 2002 Case Study

25
What is a HILP?

• High Impact Low Probability Event
• Happens infrequently but results in extended
  unplanned outages
• Sometimes called First Time Event
• (at least the first time it has happened at your
  plant)
• Includes turbine water induction, boiler
  explosions, generator winding failure, etc.

26
HILP Reduction Program

• Step 1 Select the best peer group for
  benchmarking against your unit
• Step 2 Find the peer groups HILP contribution
  to EFOR and compare to your units HILP
  contribution
• Step 3 Prioritize the peer groups HILP problem
  areas
• Step 4 Review root cause information
• Step 5 Assess your plants susceptibility to
  HILPs
• Step 6 Identify options to avoid, detect and/or
  mitigate HILPS
• Step 7 Evaluate and select HILP reduction
  options
• Step 8 Track results of implemented options,
  compare to expectations and feedback into program
  to improve the process

27
HILPs Happen!!

• No power plant in immune to HILPs
• While a plants staff must react to the problems
  of the day some resources should be devoted to
  searching for cost-effective ways to prevent,
  detect or mitigate HILPs
• Benchmarking HILP unreliability, addressing HILP
  causes and seeking solutions before a HILP
  occurs is a proven way to move from a
  fire-fighting to pro-active style of management

28
Optimum Economic Availability
29
Optimum Economic Availability
30
Optimum Economic Availability
31
Optimum Economic Availability
32
Optimum Economic Availability
33
Optimum Economic Availability
34
Optimum Economic Availability
35
Optimum Economic Availability
36
BENCHMARKING CONCLUSIONS

• Benchmarking has been an integral part of many
  successful Performance Improvement Programs
  worldwide (WEC JanApril 2003 May 2004 Case
  Studies)
• Proper peer selection is vital (WEC August 2002
  September 2003 Case Studies)
• While traditional performance metrics can show
  important trends, new advanced concepts such as
  Optimum Economic Availability are becoming
  increasingly important in the evolving
  market-driven business environment (WEC July
  2002)

37
WEC-PGP CommitteeBenchmarking Support

• For more information contact
• Elena Nekhaev at
• nekhaev_at_worldenergy.org
• or Robert Richwine at richwine_at_worldenergy.org
