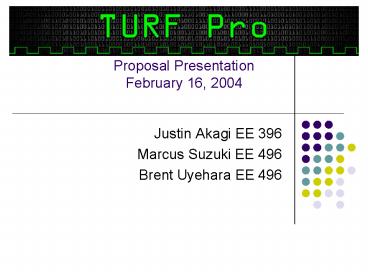

Proposal Presentation February 16, 2004

1
Proposal PresentationFebruary 16, 2004

• Justin Akagi EE 396
• Marcus Suzuki EE 496
• Brent Uyehara EE 496

2
Overview

• Project Objective
• Background Information
• Problem Details
• Approach
• Potential Problems
• Things We Might Learn
• Possible Deliverables

3
Project Objective

• To evaluate the triggering capability of the
  STRAW3 chip used in the ANITA project and develop
  a servo-loop for dynamically adjusting the
  trigger threshold.

4
Background Information
5
Background Information

• ANITA will examine the ultimate limits of
  energy in the universe by measurements of
  completely new kinds of energetic particles
  neutrinos.
• Neutrinos are the only known ultra-high-energy
  particles that are able to reach the earth
  unabsorbed cosmological distances.
• It will probe the nature and origin of the
  highest energy cosmic rays, via the most
  sensitive observation to date of their
  characteristic neutrino by-products.

6
Background Information
7
Background Information
8
Problem Details

• To record high-energy neutrino events the minimum
  sampling rate is the Nyquist rate.
• We must also sample data over 256 channels.
• It is impractical to record this data
  continuously because it would result in data
  rates on the order of terabytes/second.
• To achieve manageable data rates, we should only
  record sample data during actual neutrino events.
• To do this, we must be able to adjust the trigger
  threshold to recognize events.

9
Approach

• Debug STRAW3 trigger interface on the RFCeval
  board
• Complete Firmware schematics
• Load and successfully trigger with a parallel to
  serial readout
• Documentation RFCeval trigger operation
• Measurement of trigger threshold curves
• Put together a servo-loop (feedback loop)
• Understand scalar feedback variable
• Specification of the testing protocol
• Coding/evaluation of control loop

10
Potential Problems

• Software Gremlins
• Hardware Gremlins
• Xilinx demons
• Not enough time
• Only 24 hours in a day
• Only 7 days in a week
• Only 15 weeks in the semester
• Logical flaws
• Unforeseen problems

11
Things We Might Learn

• Better understanding of computer
  hardware/firmware
• IC design, fabrication
• Reading complicated schematics
• Debugging hardware/firmware problems
• Testing principles
• Equipment logic analyzer, signal oscilloscope,
  pulse generator
• Software Linux, Xilinx
• Projects dont always go as well as we hope

12
Possible Deliverables

• Triggering capability for the STRAW3 chip
• IEEE or Nuclear Instr. and Methods paper

13

• Thank You!
• Questions?
• No?
• Thank You!
